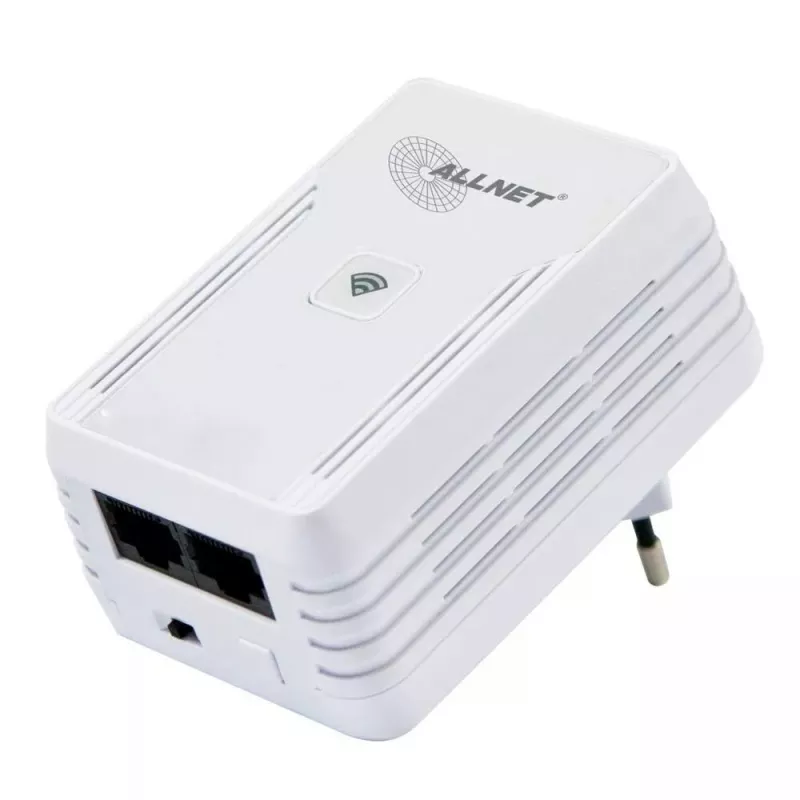

PowerLine network adapter ALLNET ALL1682511V2

The PowerLine network adapter ALLNET ALL1682511V2 delivers wired data transmission over existing electrical wiring with a maximum data transfer rate of 500 Mbit/s. Compliant with IEEE 1901 and IEEE 802.3 standards, the compact adapter incorporates a Fast Ethernet LAN interface and LED indicators for link, power and device status. Its small white housing (62 x 42 x 82 mm) and low power consumption — 3.6 W in operation and 0.5 W in standby — allow easy integration into home or office environments.

Advantages

The ALLNET ALL1682511V2 supports established powerline and Ethernet standards to provide stable connectivity where wireless signals are weak or cabling is impractical. With a Fast Ethernet LAN port and visible LED indicators, it offers straightforward installation and status monitoring. The adapter’s compact footprint and low power draw reduce space and energy requirements while maintaining reliable throughput up to 500 Mbit/s.

Suitable for

• Extending wired network access to rooms without Ethernet cabling
• Connecting smart TVs, set-top boxes and game consoles to a stable LAN
• Improving network reliability in areas with poor Wi‑Fi coverage
• Small home offices and compact commercial environments

Key specifications

• Maximum data transfer rate: 500 Mbit/s
• Networking standards: IEEE 802.3, IEEE 1901
• Ethernet interface: Fast Ethernet LAN
• Power consumption: 3.6 W (operation), 0.5 W (standby)
• Indicators: Link, Power, Status LEDs
• Dimensions: 62 x 42 x 82 mm
• Colour: White
• Weight: 0.14 kg

How to use

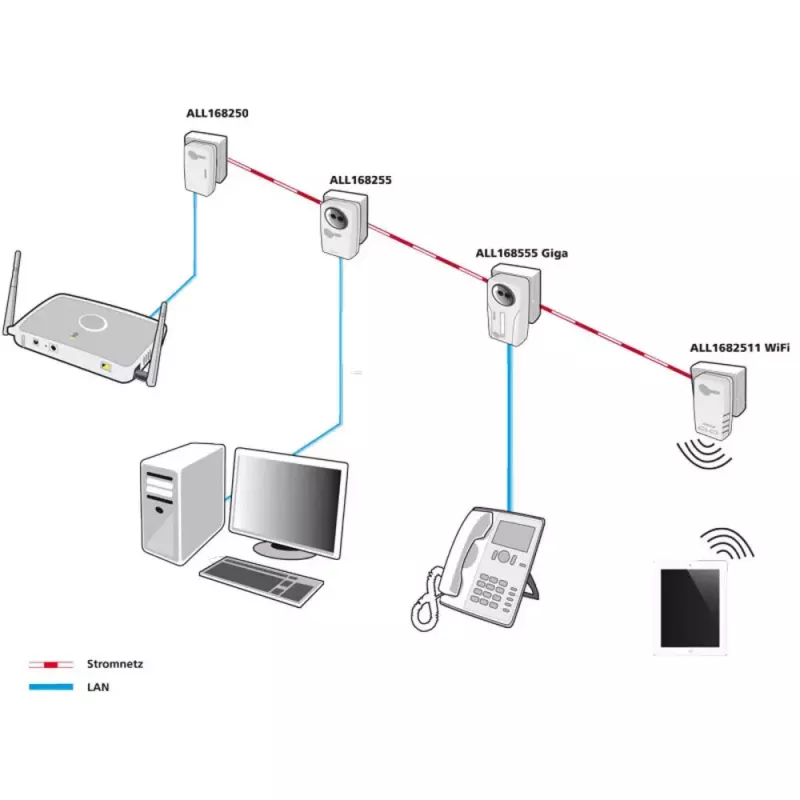

Plug the ALLNET ALL1682511V2 into a mains socket near your router and connect the adapter to the router using an Ethernet cable. Place the second adapter in the target room and connect it to the device requiring network access via its Fast Ethernet LAN port. Use the LED indicators to confirm power, link and status; when indicators show a stable link, the powerline connection is established. For Windows-based configuration or diagnostic checks, use the standard network settings on the connected devices.

Recommendations

For best performance, connect the adapter directly to a wall socket rather than through power strips or surge protectors. Keep both adapters on the same electrical circuit where possible and avoid locations with heavy electrical interference. Use quality Ethernet cables for connecting devices to the Fast Ethernet port to maintain optimal throughput.
