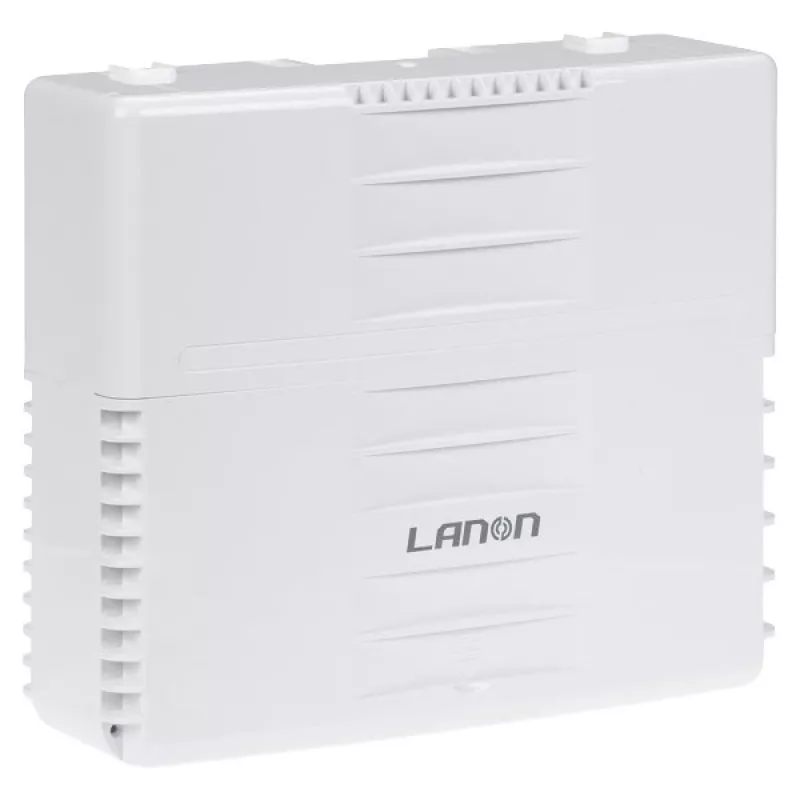

POE LANG 8-Port PoE Switch LANON 120W

The POE LANG 8-Port PoE Switch LANON is a high-performance unmanaged switch designed to deliver reliable power and data connectivity for small to medium-sized networks. With 8 PoE ports and a total power budget of 120W, it supports IEEE 802.3af/at standards, making it ideal for powering IP cameras, VoIP phones, and wireless access points. The switch features 2 Gigabit uplink ports for high-speed backbone connections, fanless operation for silent environments, and advanced features like Extend Mode (250m PoE), VLAN Isolation, and QoS to optimize network performance.

Advantages

This switch offers a cost-effective solution for deploying PoE devices without the need for separate power outlets. Its fanless design ensures silent operation, perfect for office or home use. The Extend Mode allows PoE transmission up to 250 meters, while VLAN Isolation enhances security by segregating traffic. QoS prioritizes critical data, ensuring smooth video streaming and voice calls.

Suitable for

• Small and medium businesses
• Surveillance systems (IP cameras)
• VoIP phone systems
• Wireless access point installations
• Home networks requiring PoE

Key specifications

• 8 PoE ports (10/100 Mbps) with IEEE 802.3af/at
• 2 Gigabit uplink ports (10/100/1000 Mbps)
• Total PoE power budget: 120W (up to 30W per port)
• Switching capacity: 5.6 Gbps
• Packet forwarding rate: 4.16 Mpps
• MAC address table: 2K
• Jumbo frame support: 9K bytes
• Fanless, desktop/wall-mountable
• Internal power supply: AC 100-240V, 50/60Hz
• Operating temperature: 0°C to 40°C

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. The switch is plug-and-play; no configuration required. Ideal for expanding your network with PoE devices.
