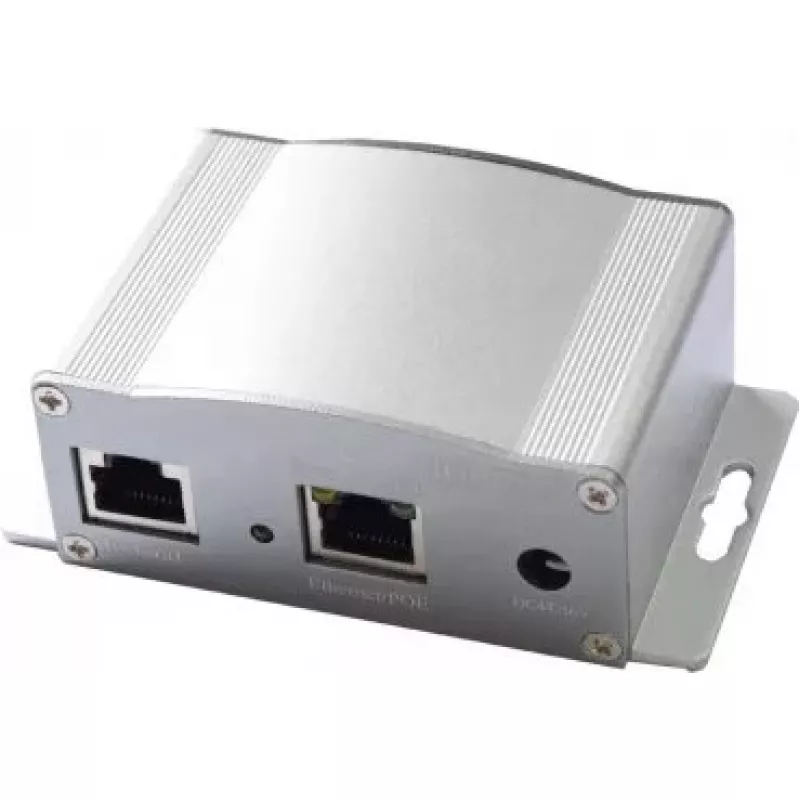

PoE Adapter Wantec 5801

The Wantec 5801 PoE Adapter provides Power over Ethernet for devices that require both data and power over a single cable. Supporting Ethernet LAN speeds of 10/100 Mbit/s and compliant with IEEE 802.3af and IEEE 802.3at standards, this adapter supplies up to 25.4 W output power and allows operation over cable runs up to 500 m in suitable network conditions. Its compact housing (99 mm × 58 mm × 35 mm) and light weight make it practical for installation in tight spaces and varied mounting locations.

Advantages

The adapter delivers standards-based PoE compatibility, ensuring interoperability with many networked cameras, access points and other low-power devices. A maximum output of 25.4 W supports devices with higher power requirements within the limits of the IEEE 802.3at class. Extended operating distance capability reduces the need for intermediate power sources in longer cable deployments. Compact physical dimensions and two RJ-45 Ethernet ports provide a simple, space-efficient solution for adding PoE to existing infrastructure.

Suitable for (tasks / use cases)

• Powering IP cameras and surveillance devices where longer cable runs are required
• Supplying power to Wi‑Fi access points and small network devices without nearby power outlets
• Extending PoE to edge devices in office, retail or industrial networks
• Temporary installations and test setups that need a portable PoE source

Key specifications

• Ethernet data rate: 10/100 Mbit/s
• PoE standards supported: IEEE 802.3af, IEEE 802.3at
• Maximum output power: 25.4 W
• Maximum operating distance: up to 500 m (depending on cable quality and network conditions)
• Ethernet ports: 2 × RJ-45
• Dimensions: 99 mm (W) × 58 mm (D) × 35 mm (H)
• Weight: 0.142 kg

How to use

Connect the adapter to your Ethernet network using the RJ-45 ports and ensure the host switch or injector provides compatible power and data. Verify that connected devices support PoE and that cable type and length fall within recommended limits to maintain adequate voltage and power delivery. Mount the adapter in a location with adequate ventilation and away from heat sources; secure it using appropriate fixtures for the installation environment. Follow any additional safety or installation instructions provided by your network equipment manufacturer.

Recommendations

For reliable performance, use quality Cat5e or better cabling, keep individual cable runs as short as practical when approaching the 500 m limit, and confirm device power requirements do not exceed the adapter's 25.4 W output. When deploying critical devices, test power delivery under expected load and environmental conditions prior to final installation.
