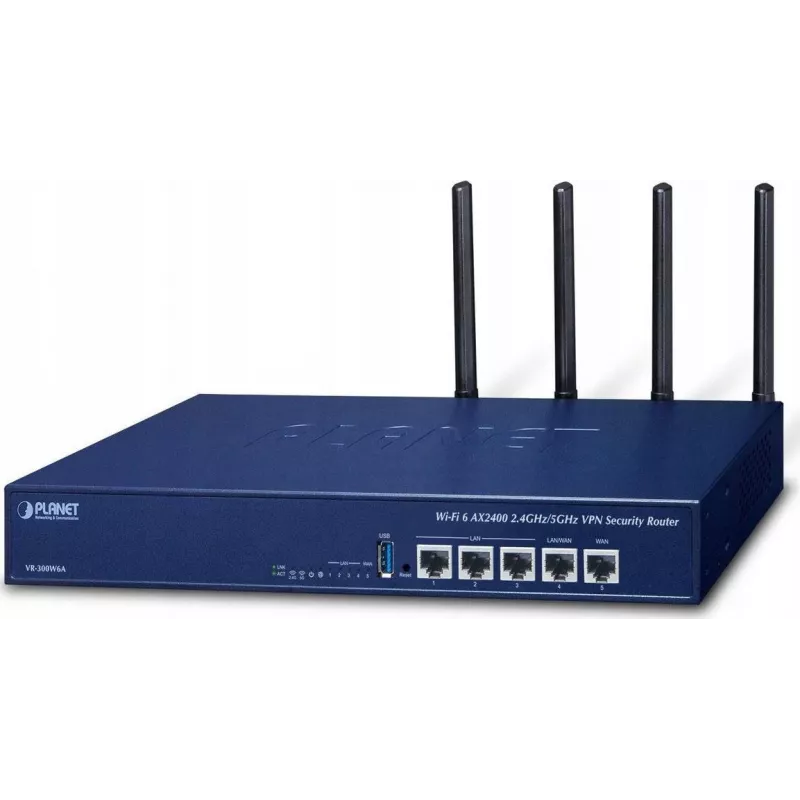

PLANET VR-300W6A Enterprise Wi-Fi 6 AX3000 Dual-Band Gigabit Router with VPN, VLAN, QoS, HA, AP Controller, 2x WAN SD-WAN, 3x LAN

Growing businesses and multi-site offices need a robust, secure and high-performance network foundation. The PLANET VR-300W6A is an enterprise-grade Wi-Fi 6 router that consolidates advanced routing, next-generation wireless, comprehensive security, and centralised AP management into a single device. With dual-band AX3000 speeds, SD-WAN-capable multi-WAN failover, and a rich set of VPN, VLAN, and QoS features, it keeps business networks fast, flexible, and protected.

Who is it for

Designed for IT administrators, managed service providers, and small-to-medium enterprises that require seamless integration of wired and wireless networking without juggling separate appliances. It is especially suited for branch offices, retail stores, and remote sites where high availability, secure remote access, and easy scalability are critical.

Main features

• Wi-Fi 6 (802.11ax) with combined AX3000 data rates: 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz
• Dual-band MU-MIMO, OFDMA, and beamforming for efficient and reliable wireless connections
• Two Gigabit WAN ports with SD-WAN support for load balancing, failover, and intelligent path selection
• Three Gigabit LAN ports for flexible wired connectivity
• Comprehensive VPN gateway supporting IPSec, PPTP, L2TP, and OpenVPN with up to 100 IPSec tunnels and 300 Mbps throughput
• Robust firewall: SPI, DoS/DDoS protection, and content filtering
• VLAN (802.1Q) for network segmentation and isolation
• QoS for bandwidth management and traffic prioritization
• High Availability via VRRP for continuous network operation
• Built-in AP controller manages up to 20 Planet access points
• Four external detachable 5dBi antennas to extend wireless coverage
• WPA3/WPA2/WPA security algorithms ensure secure wireless access

Specifications

• Brand: PLANET
• Model: VR-300W6A
• Wi-Fi Standard: IEEE 802.11ax (Wi-Fi 6)
• Top Wi-Fi Standard: Wi-Fi 6 (802.11ax)
• Ethernet LAN: Yes
• Ethernet LAN Data Rates: 10/100/1000 Mbit/s
• Ethernet LAN (RJ-45) Ports: 5 (2 WAN + 3 LAN)
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity: 1 (USB 3.0)
• Security Algorithms: WPA3, WPA2, WPA

Tips

For optimal coverage, position the router centrally and elevate it above floor level. Use the detachable antennas to adjust orientation based on your wireless clients. Configure SD-WAN and VLAN policies to prioritise critical business applications, and enable HA if maximum uptime is required.
