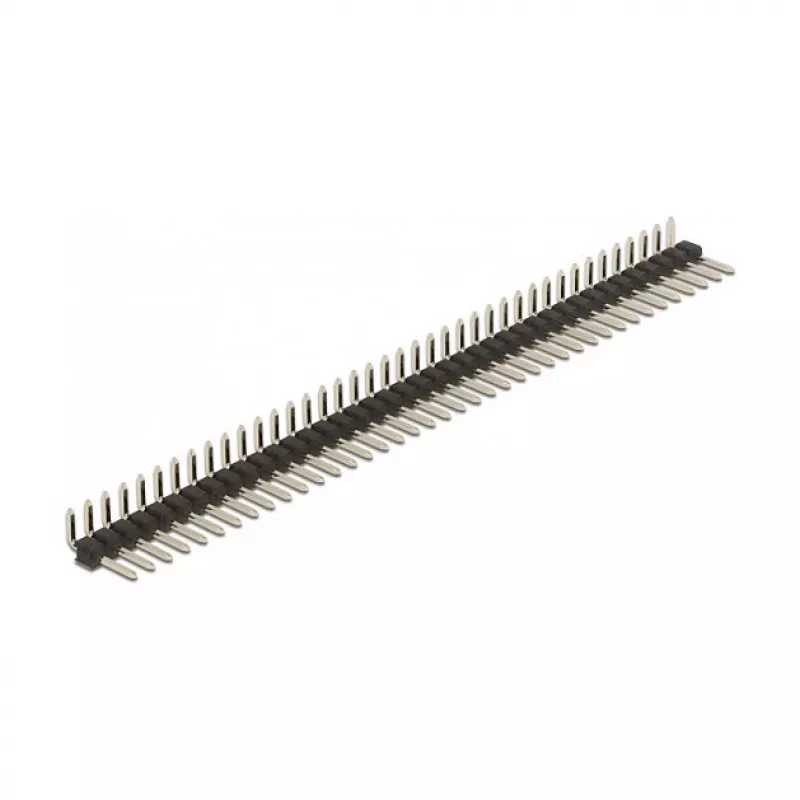

Pin header DeLOCK 66697 Printed Circuit Board (PCB) accessory

These DeLOCK 66697 pin headers are accessories for printed circuit boards (PCBs) designed to establish electrical connections between individual boards. The set includes five pin headers with a black and metallic appearance, combining plastic insulation and metal contacts. The compact dimensions (length 101.6 mm, depth 10.4 mm, height 2.5 mm) make them suitable for integration into a variety of PCB projects.

Advantages

The DeLOCK 66697 pin headers provide a standardized, space-saving connection method for PCBs. Constructed from metal contacts and plastic housing, they offer mechanical stability and reliable electrical contact. Supplied as a 5-piece set, they ensure multiple connection points are available for prototyping or small production runs.

Suitable for

• Connecting stacked or adjacent printed circuit boards
• Prototyping electronic circuits and development boards
• Repairing or replacing PCB header connections
• Small-scale electronic assemblies and projects

Key specifications

• Brand: DELOCK
• Model / MPN: 66697
• EAN: 4043619666973
• Quantity: 5 pieces
• Material: metal pins with plastic housing
• Colour: black and metallic
• Length: 101.6 mm
• Depth: 10.4 mm
• Height: 2.5 mm
• Category: Printed circuit board (PCB) accessory

How to use

Position the pin header on the PCB pads or through-holes aligned with the intended mating connector or board. Solder the metal pins to the board pads or insert and fix according to your PCB assembly process. Ensure correct orientation and secure mechanical support during soldering to maintain alignment and reliable electrical contact.

Recommendations

Handle the pin headers with appropriate ESD precautions when working on sensitive electronics. Verify pin alignment with mating connectors before soldering and avoid excessive heat during soldering to prevent deformation of the plastic housing.
