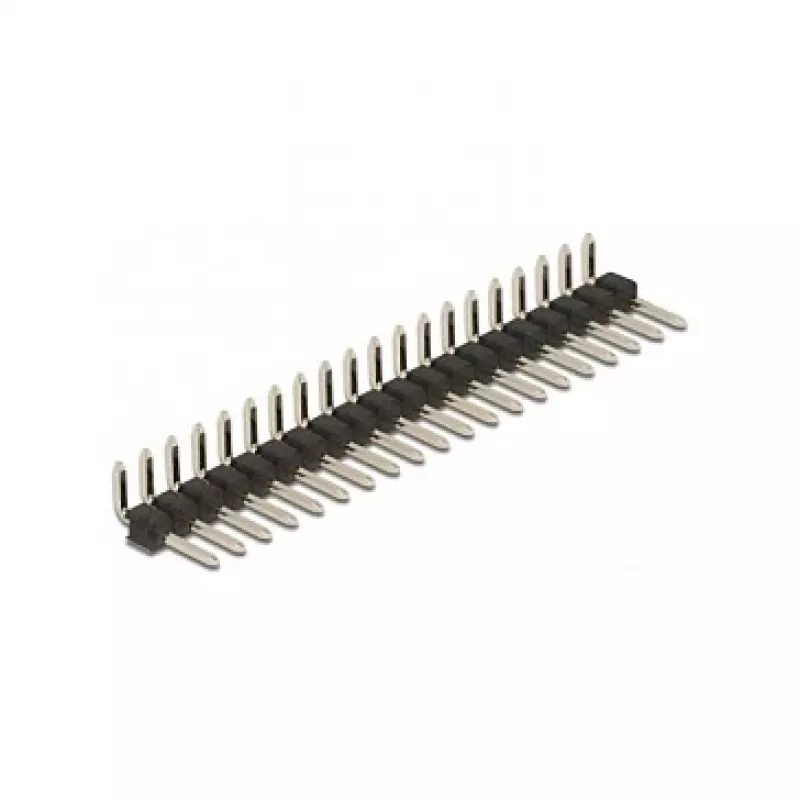

Pin header DeLOCK 66696 Printed Circuit Board (PCB) accessory

The DeLOCK 66696 pin header is an accessory for printed circuit boards (PCBs) designed to create reliable electrical connections between individual boards or components. It combines metal contacts with a plastic housing in a black and metallic finish and is intended for use in various electronic assemblies.

Advantages

The pin header provides a compact, standardized interface for signal and power connections on PCBs. Its metal pins ensure conductive contact while the plastic body offers mechanical support and insulation. The component is durable, simple to install through-hole on a PCB, and suitable for tight mounting spaces thanks to its low profile.

Suitable for

• Connecting daughter boards or modules to main PCBs
• Prototyping and development boards
• Repairing or replacing existing PCB headers
• Signal and low-current power connections in electronic devices

Key specifications

• Brand: DELOCK
• Manufacturer part number (MPN): 66696
• EAN: 4043619666966
• Material: metal pins with plastic housing
• Colour: black and metallic
• Length: 50.8 mm
• Depth: 10.4 mm
• Height: 2.5 mm
• Category: Printed Circuit Board (PCB) accessory

How to use

Position the pin header on the PCB so that the pins align with the drilled or plated-through holes. Solder each pin to the corresponding pad ensuring good wetting and reliable joints. After soldering, verify mechanical stability and electrical continuity with appropriate testing equipment. Observe standard ESD and soldering precautions during handling and assembly.

Recommendations

For optimal results, use the pin header within its intended low-current signal applications and ensure correct board hole dimensions for a secure press-fit before soldering. Store in a dry, static-free environment prior to installation.
