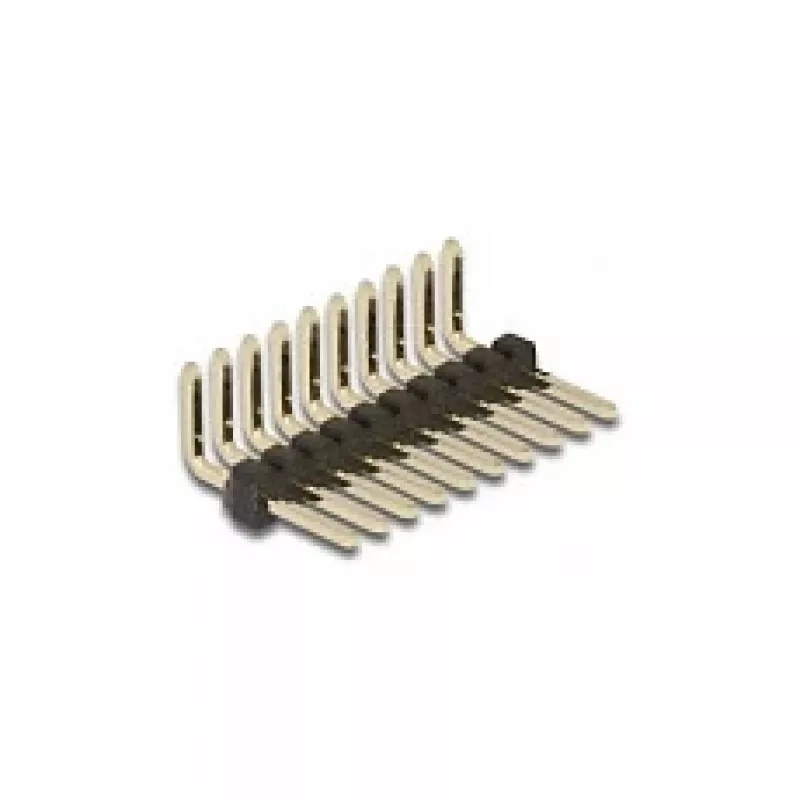

Pin header DeLOCK 66689 Printed Circuit Board (PCB) accessory

The DeLOCK 66689 pin header is an accessory for printed circuit boards (PCBs) designed to establish reliable electrical connections between individual boards or components. It combines metal contacts with a black plastic housing and is suitable for a range of electronic applications, from DIY projects to professional assemblies.

Advantages

The DeLOCK 66689 offers a compact footprint with precise metal contacts and a robust plastic body that supports repeated connections. Its defined dimensions (12.7 mm length, 7.4 mm depth, 2 mm height) simplify planning and mounting on PCBs, while the metal construction ensures stable conductivity.

Suitable for

• Connecting stacked or adjacent printed circuit boards
• Prototyping and DIY electronics projects
• Repairing or upgrading electronic assemblies

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 66689
• EAN: 4043619666898
• Type: Pin header for PCB
• Materials: metal contacts, plastic housing
• Color: black (housing) and metallic (contacts)
• Dimensions: 12.7 mm (length) × 7.4 mm (depth) × 2 mm (height)

How to use

Position the pin header on the PCB pads according to the board layout and solder the metal pins to the pads to create a fixed electrical connection. Ensure correct alignment and orientation before soldering. After soldering, allow joints to cool and inspect for solid solder fillets and no bridging between pins.

Recommendations

For reliable long-term connections, use appropriate soldering temperature and flux for the board material, and avoid excessive mechanical stress on the header after assembly.
