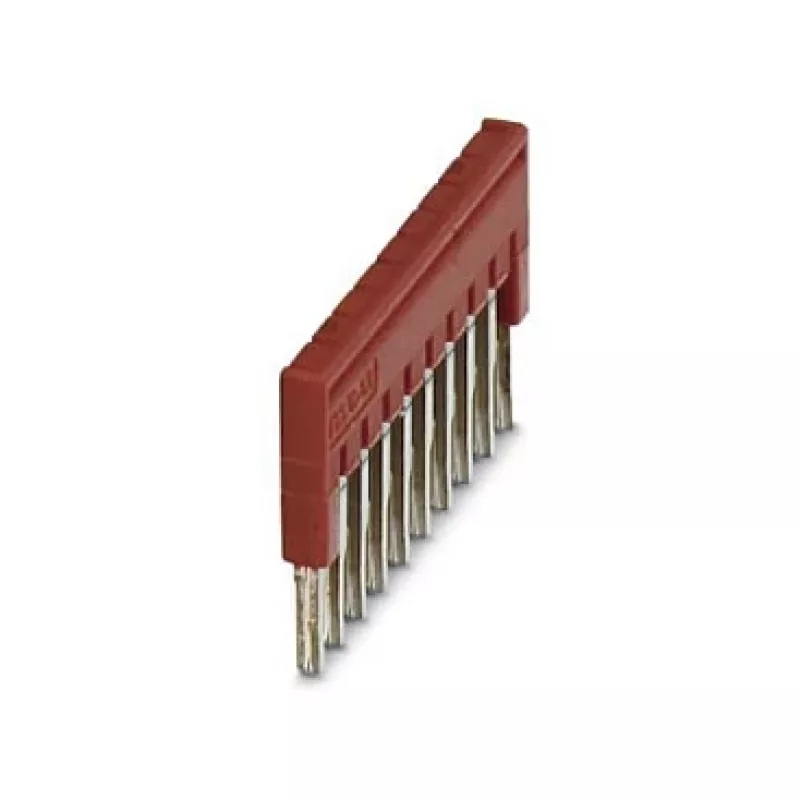

Phoenix Contact FBS 10-3.5 Plug-in Bridge, 10-Position, 3.5 mm Pitch, Red

The Phoenix Contact FBS 10-3.5 plug-in bridge (jumper bar) provides a reliable and efficient method for commoning ten adjacent terminal block positions in a single operation. Its 3.5 mm pitch matches COMBICON compact terminal blocks, ensuring a secure and vibration-resistant connection. The red polyamide housing offers clear visual identification and excellent insulation properties, while the copper contacts deliver high conductivity and a rated current of 17.5 A. This bridge simplifies wiring, reduces installation time, and enhances the overall reliability of your electrical connections.

Advantages

The FBS 10-3.5 plug-in bridge offers several key benefits for industrial and commercial applications. Its plug-in design allows for quick and tool-free installation, significantly reducing assembly time compared to individual wire jumpers. The 10-position configuration enables the simultaneous bridging of multiple terminals, ensuring consistent potential distribution across a block. The high-quality copper contacts provide low contact resistance and excellent current-carrying capacity, while the UL 94 V0 rated polyamide housing ensures flame retardancy and safety. The bridge is also RoHS compliant, meeting environmental standards.

Suitable for

• COMBICON compact terminal blocks with 3.5 mm pitch
• Power distribution in control cabinets
• Signal commoning in automation systems
• PCB terminal block applications requiring reliable bridging
• Industrial environments with operating temperatures from -60 °C to 105 °C

Key specifications

• Product type: Plug-in bridge / Jumper bar
• Number of positions: 10
• Pitch: 3.5 mm
• Colour: Red
• Insulation material: Polyamide (PA)
• Contact material: Copper
• Rated voltage (III/2): 250 V
• Rated surge voltage: 2.5 kV
• Rated current: 17.5 A
• Flammability rating: UL 94 V0
• Operating temperature range: -60 °C to 105 °C
• Mounting type: Plug-in
• Series: FBS
• Environmental compliance: RoHS

Recommendations

For optimal performance, ensure that the FBS 10-3.5 bridge is fully inserted into the terminal block until it clicks into place. Use only with compatible Phoenix Contact COMBICON compact terminal blocks with 3.5 mm pitch. When bridging multiple groups, consider using separate bridges for different potential levels to avoid short circuits. Store in a dry environment to maintain contact integrity.
