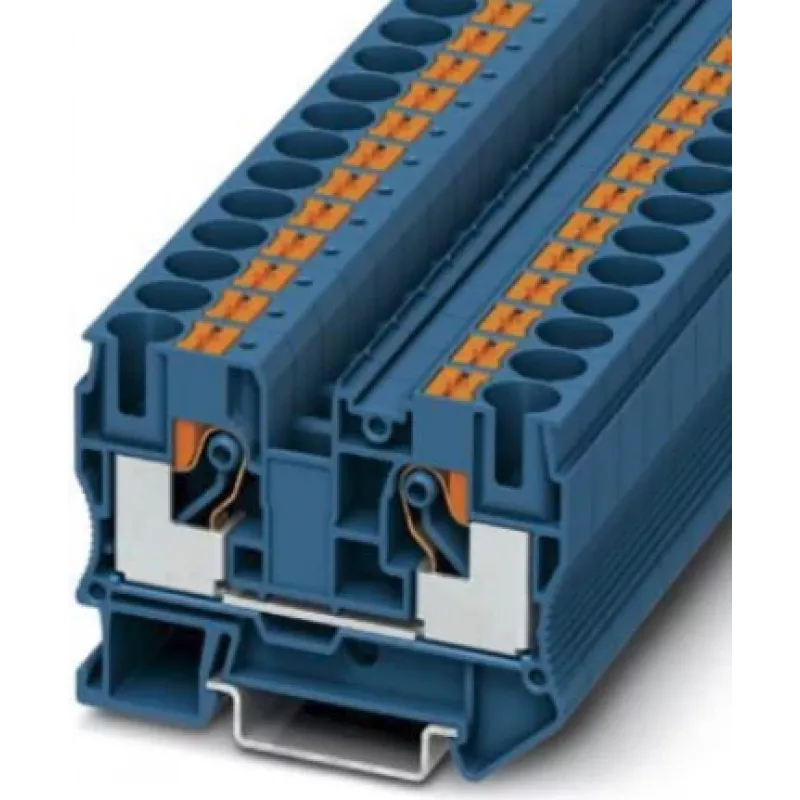

Phoenix 3212123 PT 10 BU Feed-Through Terminal Block, Push-in Connection, 10 mm², Blue

In control cabinets and distribution boxes, connecting large conductors without tools can be a challenge. The Phoenix 3212123 PT 10 BU feed-through terminal block solves this with a push-in connection that accepts solid and flexible conductors up to 10 mm², saving time during installation. Its blue housing provides clear visual identification for neutral or other designated circuits.

Who is it for

Electricians, panel builders, and maintenance technicians working in industrial control systems, building automation, and power distribution. Ideal for those who need reliable, high-current connections on standard DIN rails with quick wiring and long-term stability.

Main features

• Push-in connection technology for tool-free wiring of solid conductors and ferruled flexible conductors.
• Nominal cross section 10 mm², supports conductors from 0.5 mm² to 16 mm² (solid) or 10 mm² (flexible).
• Rated voltage 1000 V and current 57 A (IEC), suitable for demanding industrial environments.
• Mounts on DIN rail NS 35/7.5 and NS 35/15, compatible with standard terminal block accessories.
• Blue polyamide housing, UL 94 V0 flammability rated, operating temperature -60 °C to 105 °C.

Specifications

• Connection technology: Push-in
• Number of connections: 2
• Number of positions: 1
• Mounting type: DIN rail NS 35/7.5, NS 35/15
• Rated voltage (IEC): 1000 V
• Rated current (IEC): 57 A
• Rated surge voltage: 8 kV
• Insulating material: PA (Polyamide)
• Flammability rating (UL 94): V0
• Stripping length: 12 mm
• Min. solid conductor cross section: 0.5 mm²
• Max. solid conductor cross section: 16 mm²
• Min. flexible conductor cross section: 0.5 mm²
• Max. flexible conductor cross section: 10 mm²
• Operating temperature: -60 °C to 105 °C
• Pollution degree: 3
• Overvoltage category: III
• Type of wiring: 1-level

Tips

For reliable push-in connections, ensure conductor ends are clean and, for flexible wires, use ferrules. The blue housing is ideal for marking neutral conductors in accordance with wiring conventions. Always verify that the DIN rail is properly grounded and that the terminal block is securely snapped onto the rail.
