Perforator Metabo UHEV 2860-2 QUICK SET

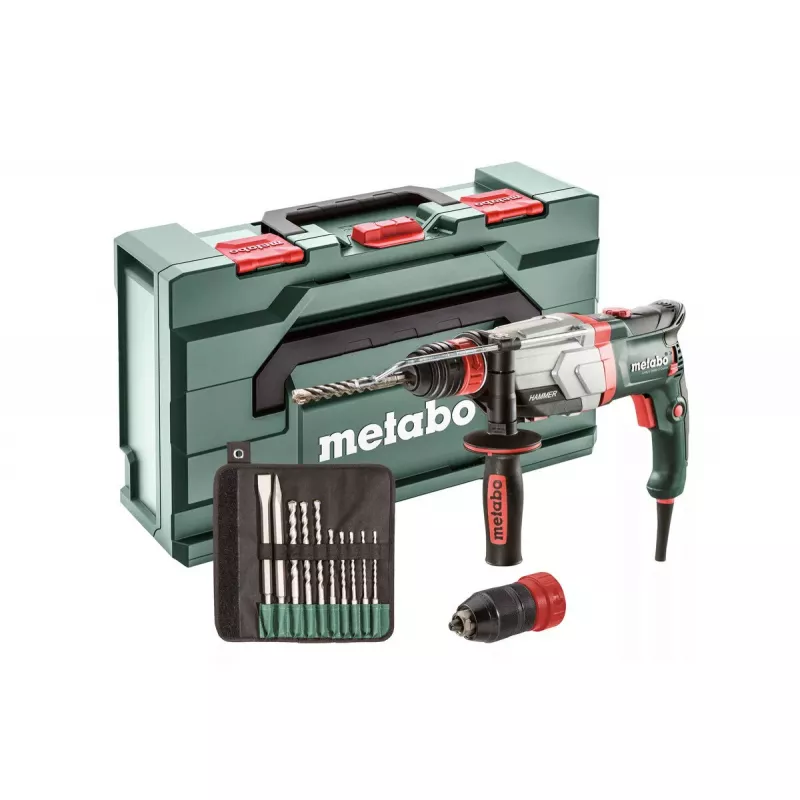

The Metabo UHEV 2860-2 QUICK SET (600713510) is a four-function rotary hammer designed for versatile drilling and chiselling tasks. It combines an 1100 W Marathon motor with high-performance hammer action and an aluminium-alloy housing to provide durable, long-lasting operation. The tool features Metabo Quick for rapid switching between the SDS Plus hammer chuck and the keyless chuck for drilling in wood and metal, and it includes a metaBOX for organised transport and storage.

Advantages

The tool offers four operating modes (hammer drilling, drilling without impact in two speeds, and chiselling), a two-speed gearbox for effective material-specific drilling, and Vario-Tacho-Constamatic (VTC) full-wave electronics to maintain constant speed under load. Additional features include a thumbwheel for speed and impact-rate preselection, Metabo S-automatic safety clutch, restart protection, a lockable switch for continuous operation, a dust-protected Marathon motor for extended service life, and a cable-protecting ball joint for improved freedom of motion.

Suitable for

• Drilling and hammer drilling in concrete and masonry (SDS Plus)
• Drilling in wood and metal using the keyless chuck
• Chiselling and light demolition work
• Professional construction and renovation tasks requiring prolonged use

Key specifications

• Brand: Metabo
• Model / MPN: UHEV 2860-2 QUICK SET / 600713510
• Power: 1100 W
• Max speed: 2100 RPM
• Weight: 3.3 kg
• Drilling capacity in concrete (approx.): up to 28 mm
• Chuck system: SDS Plus and keyless chuck (quick change via Metabo Quick)
• Functions: hammer drilling, drilling without impact (two speeds), chiselling
• Supply: mains-powered, 4 m cable
• Includes: metaBOX for transport and storage

How to use

Select the required operating mode using the mode selector (hammer drilling, drilling without impact in low or high speed, or chiselling). Fit the appropriate bit into the SDS Plus or keyless chuck and secure it using the Metabo Quick quick-change system when switching between chucks. Set the desired speed and impact rate with the thumbwheel or the two-speed gearbox, then start the tool using the trigger; use the lockable switch for continuous operation. Keep a firm grip and let the tool do the work while applying steady pressure; do not force the tool and allow the VTC electronics to maintain speed under load.

Recommendations

Use appropriate personal protective equipment (safety goggles, hearing protection and dust mask) and select drill bits suitable for concrete, masonry, wood or metal. For extended jobs, use the lockable switch and monitor the motor temperature; allow intermittent cooling if necessary. Store the perforator in the supplied metaBOX to protect it during transport and between jobs.
