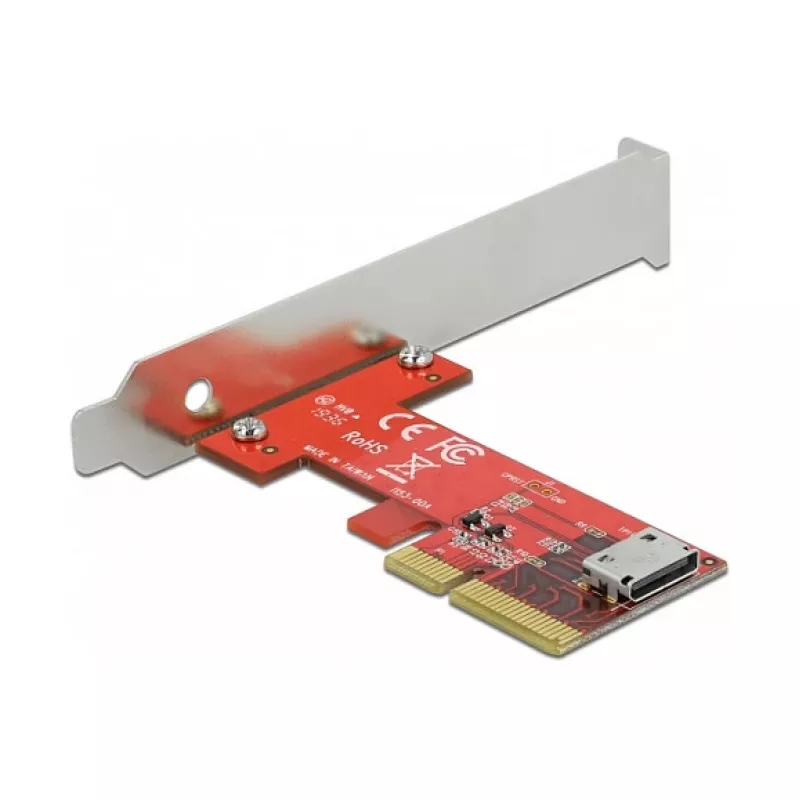

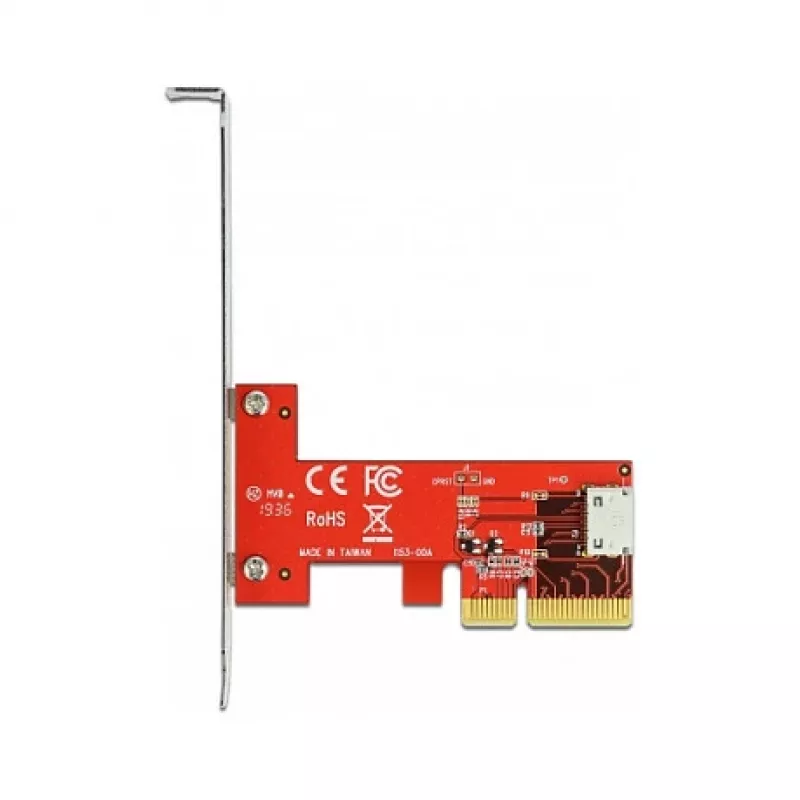

PCI Express x4 Card DeLOCK 90482

The DeLOCK PCI Express x4 Card (model 90482) provides an internal OCuLink SFF-8612 interface to add NVMe-capable storage connectivity to a compatible PC. The low-profile expansion card supports PCIe 4.0 signaling with a maximum theoretical transfer rate of 64 Gbit/s and is designed for installation into a PCIe x4 (or higher) slot. It is compatible with Windows 10 and Windows 8.1.

Advantages

This card brings an internal SFF-8612 (OCuLink) connector to the system, enabling connection of NVMe SSDs via an optional SFF-8612 cable. It supports PCIe 4.0 bandwidth up to 64 Gbit/s, uses PCIe x4 host interface for direct CPU/GPU communication, and is supplied in a low-profile form factor suitable for compact cases.

Suitable for

Key specifications

How to use

Install the card into an available PCIe x4 (or x8/x16) slot on the motherboard, secure the bracket to the case and, if required, attach an SFF-8612 (OCuLink) cable to the internal connector. Connect the other end of the cable to a compatible NVMe enclosure or device. Ensure the system firmware and operating system (Windows 10 or Windows 8.1) are up to date and that any required drivers are installed or available through the OS.

Recommendations

For optimal performance use a PCIe 4.0 compatible motherboard and an NVMe device that supports the PCIe generation; check cable compatibility (SFF-8612) and ensure the card is installed in a slot providing at least x4 lanes. In compact systems verify clearance for a low-profile card and confirm OS support before installation.
