Internal Mini PCIe Adapter DeLOCK 65228

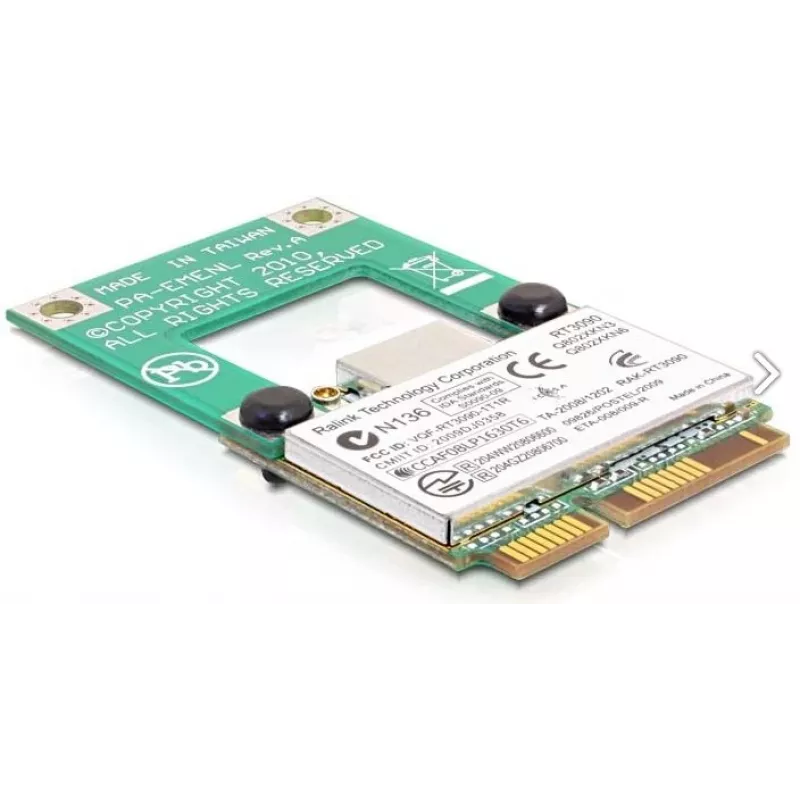

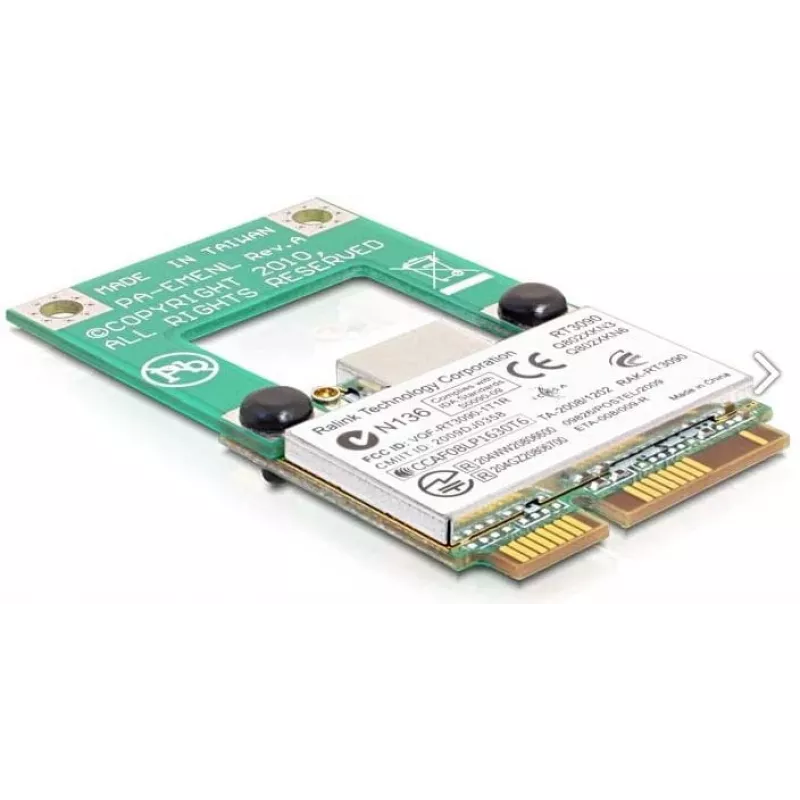

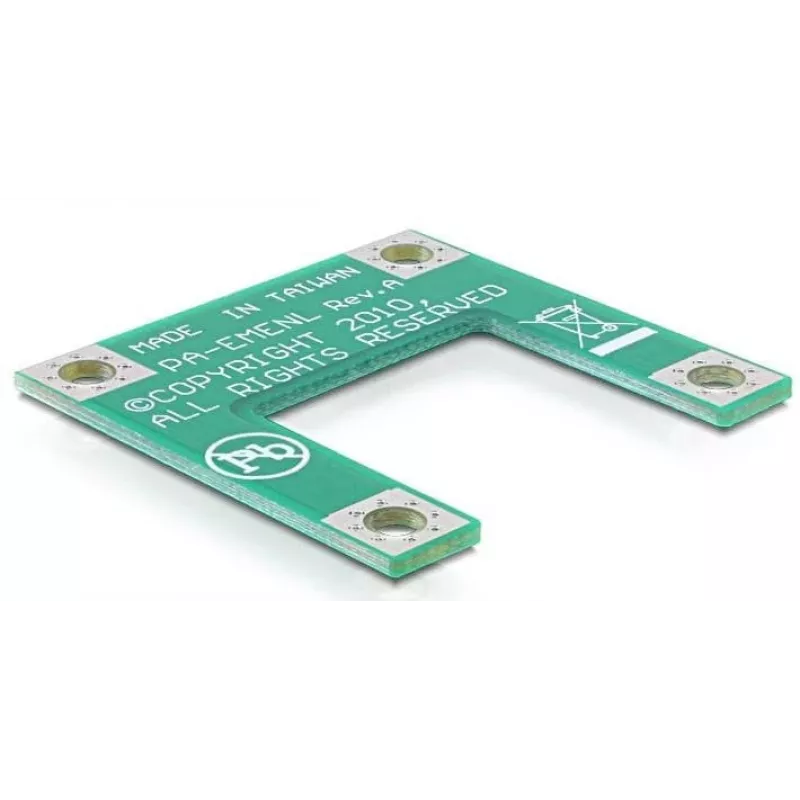

The DeLOCK 65228 is an internal adapter that converts a half-size Mini PCI Express or mSATA card into a full-size form factor. It is a compact PCB adapter in green colour with four mounting holes, designed for internal installation to expand system connectivity and storage options while maintaining compatibility with standard Mini PCIe and mSATA modules.

Advantages

This adapter allows easy conversion of half-size Mini PCIe or mSATA cards to full-size, provides four mounting holes for secure attachment, and uses a PCB design for a low-profile internal installation. Its compact dimensions (approximately 30 x 30 mm) make it suitable for space-constrained systems and it is compatible with standard Mini PCIe and mSATA interfaces.

Suitable for

• Expanding internal storage by adding mSATA modules
• Integrating half-size Mini PCIe cards into systems that require full-size mounting
• Compact or embedded systems where PCB-style adapters are preferred

Key specifications

• Function: convert half-size Mini PCIe or mSATA card to full-size
• Mounting: 4 x mounting holes
• Form factor: PCB adapter
• Dimensions: approx. 30 x 30 mm
• Colour: green
• Interfaces: Mini PCIe, mSATA

How to use

Attach the half-size Mini PCIe or mSATA card to the adapter and secure it using the available mounting holes. Install the assembled adapter and card into the host device’s internal Mini PCIe/mSATA slot following the device manufacturer’s instructions. Ensure the card is correctly seated and fastened before powering on the system.

Recommendations

Use the adapter inside the host device only and avoid exposing the PCB to static discharge or moisture. Verify physical compatibility with your host board and confirm that drivers and firmware for the installed Mini PCIe or mSATA module are available and up to date.
