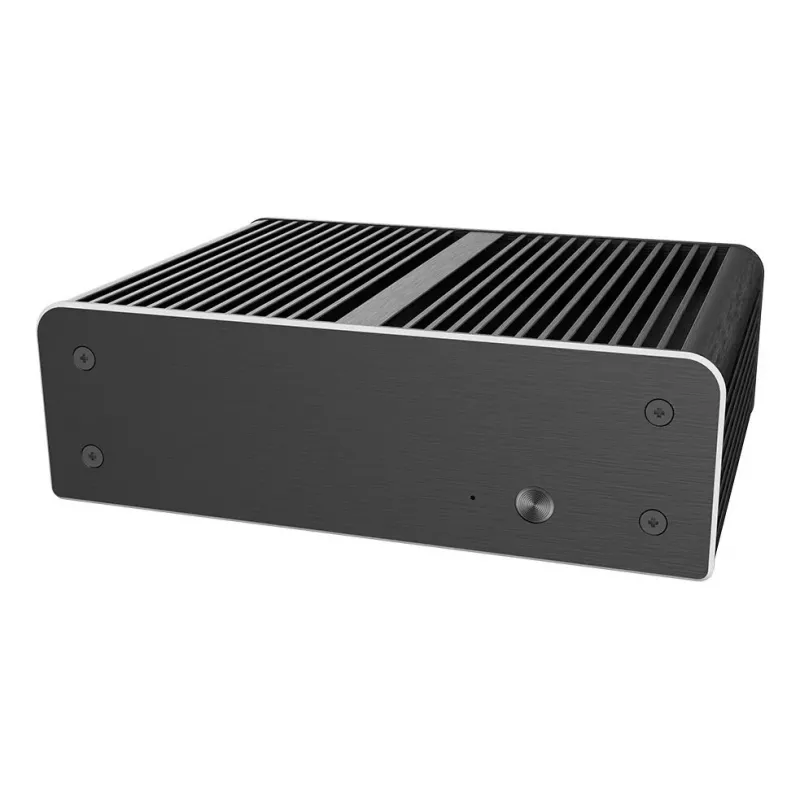

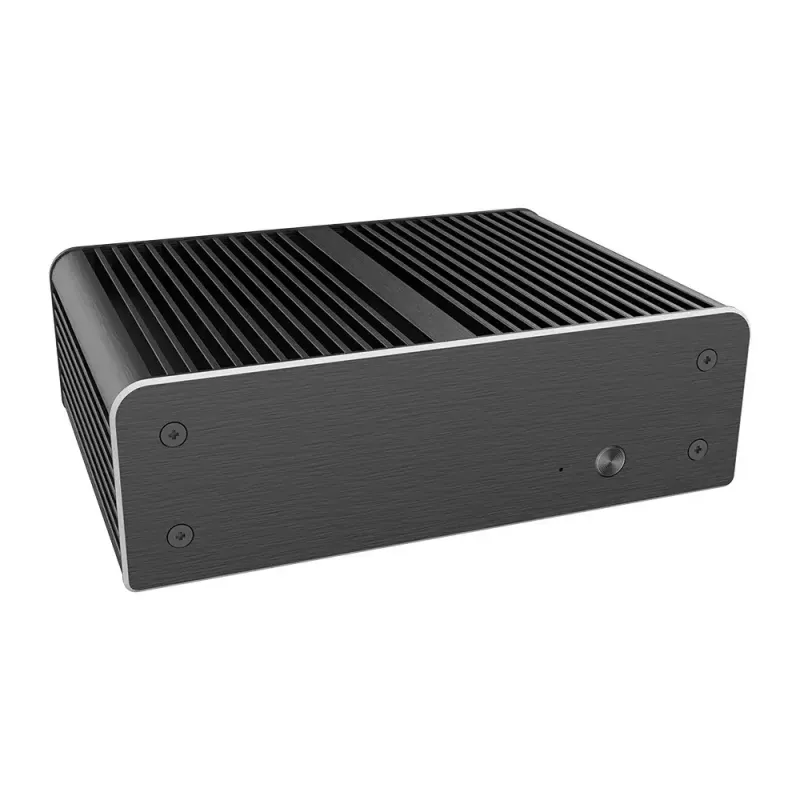

PC Case Akasa MaxWell Pro Mini-ITX Small Form Factor Black

Ultra-compact aluminium fanless case designed for NVIDIA® Jetson Xavier NX™ and Nano™ Developer Kits, supporting full rear I/O and aimed at AI and edge applications. The 0.8L chassis provides a small footprint while allowing rich display and interface connectivity to run workloads such as image classification, object detection, segmentation and speech processing.

Advantages

The solid aluminium core and high-performance thermal interface materials conduct heat away from the CPU, GPU and VRM areas into the case body for passive dissipation, enabling silent operation without thermal throttling. Its completely fanless all-aluminium construction acts as an integrated heatsink for improved cooling performance in a ventless, robust 0.8L form factor. Optional high-quality external antenna and pigtail are available for wireless connectivity when required.

Suitable for

• Development and testing with NVIDIA Jetson Xavier NX / Nano developer kits
• Edge AI inference: image classification, object detection and segmentation
• On-device speech processing and lightweight machine learning workloads
• Compact, silent mini-PC or embedded systems in constrained spaces

Key specifications

• Compatible with: NVIDIA® Jetson Xavier NX™ and Nano™ Developer Kits
• Volume: 0.8 L
• Material: aluminium with solid aluminium core and thermal pads/compounds
• Form factor: ultra-compact, ventless fanless design

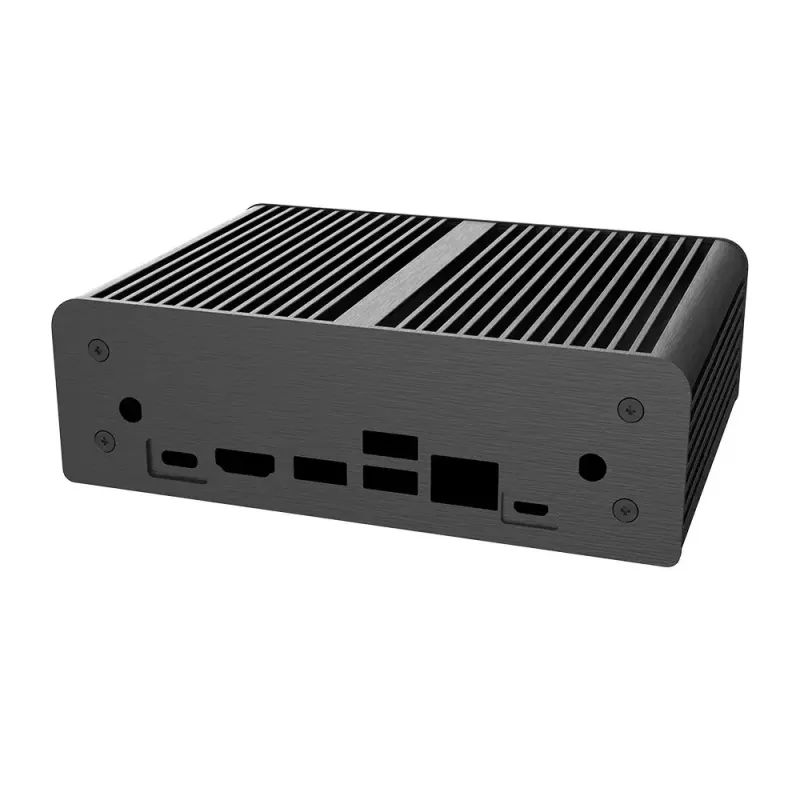

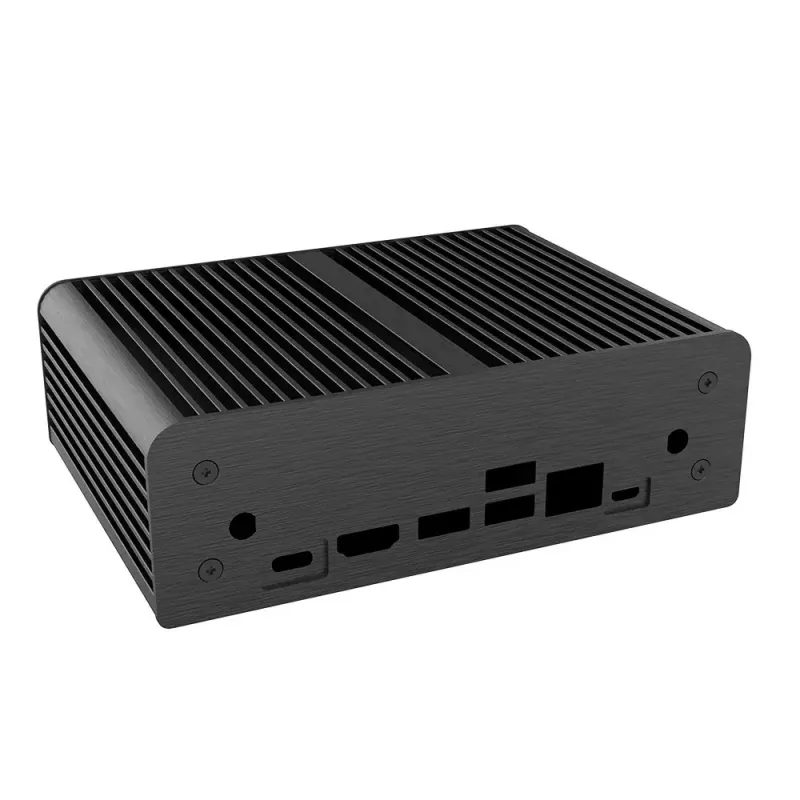

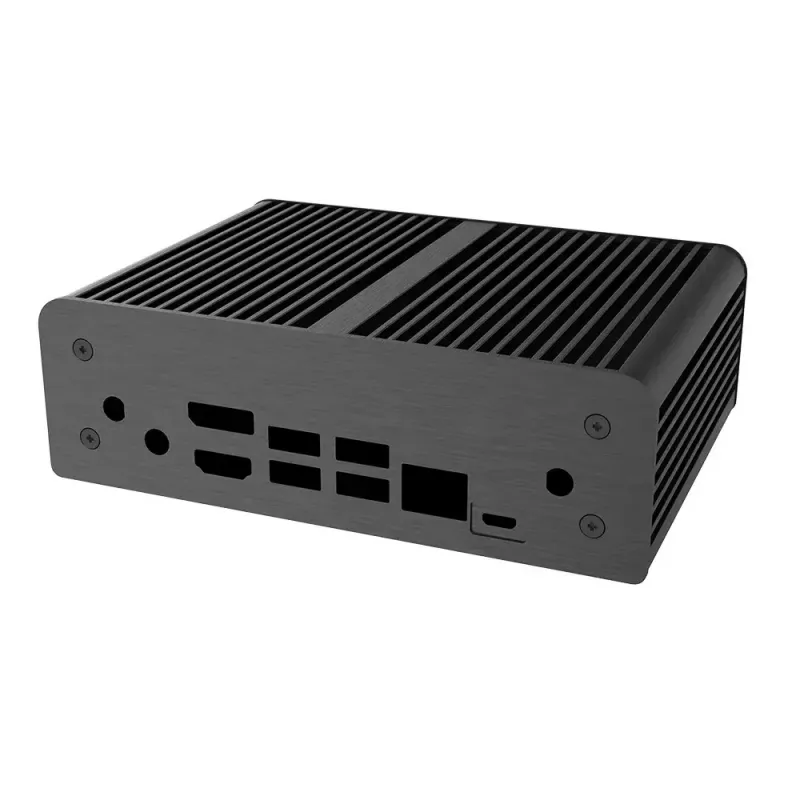

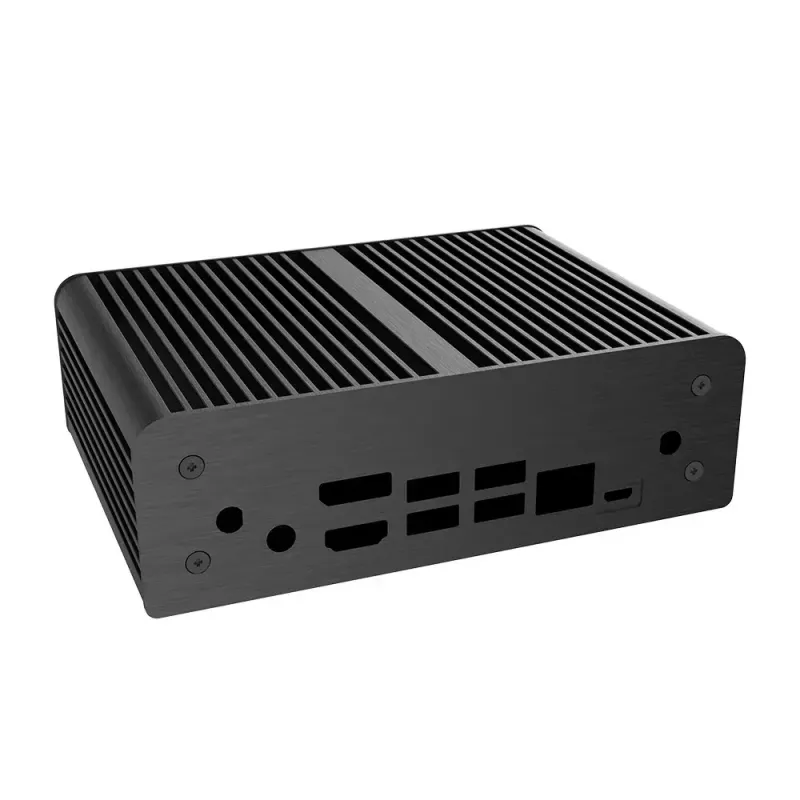

• Rear I/O support: full access to developer kit connectors
• Optional accessories: external antenna (A-ATN01-BK) and pigtail (A-ATC01-150GR)

How to use

Install the NVIDIA Jetson Xavier NX or Nano developer kit into the case aligning the board with the rear I/O cutouts. Apply the supplied thermal pads and compounds to the designated hot zones as instructed by the developer kit and case manual to ensure contact with the aluminium core. Secure the board and any external antenna hardware if required, then place the assembled unit in a location with adequate ambient airflow. No fan installation is necessary due to the passive cooling design.

Recommendations

Place the case on a stable surface with at least a small clearance from walls or obstructions to allow passive heat dissipation. For prolonged heavy workloads, monitor operating temperatures during initial deployment and ensure thermal interfaces are fitted correctly. Use the optional antenna and pigtail if wireless connectivity is needed.
