PATCHBOX C36STPXC6AXX1W networking cable White 0.8 m Cat6a U/FTP (STP)

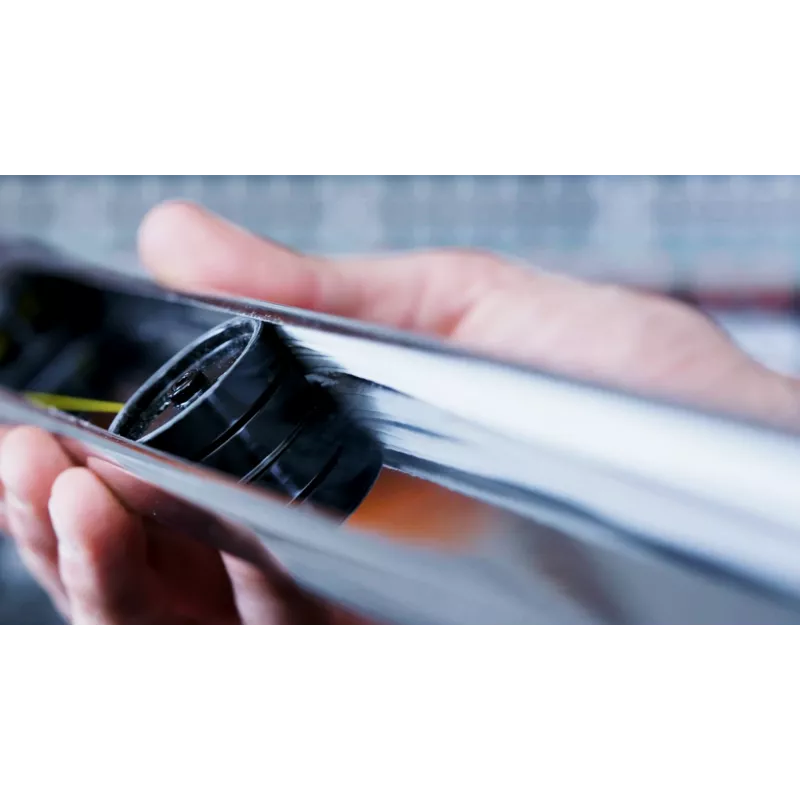

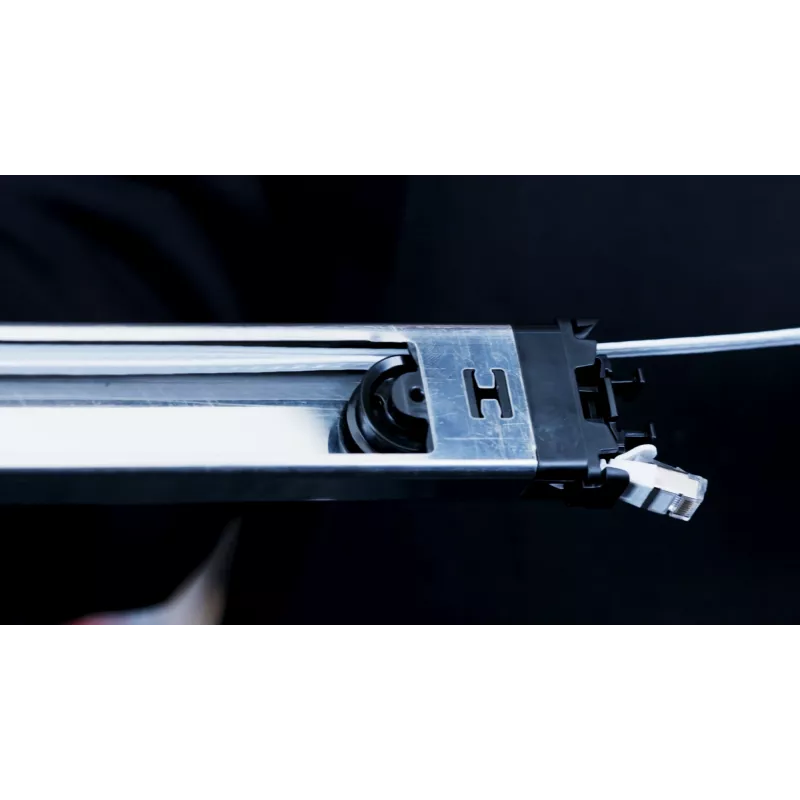

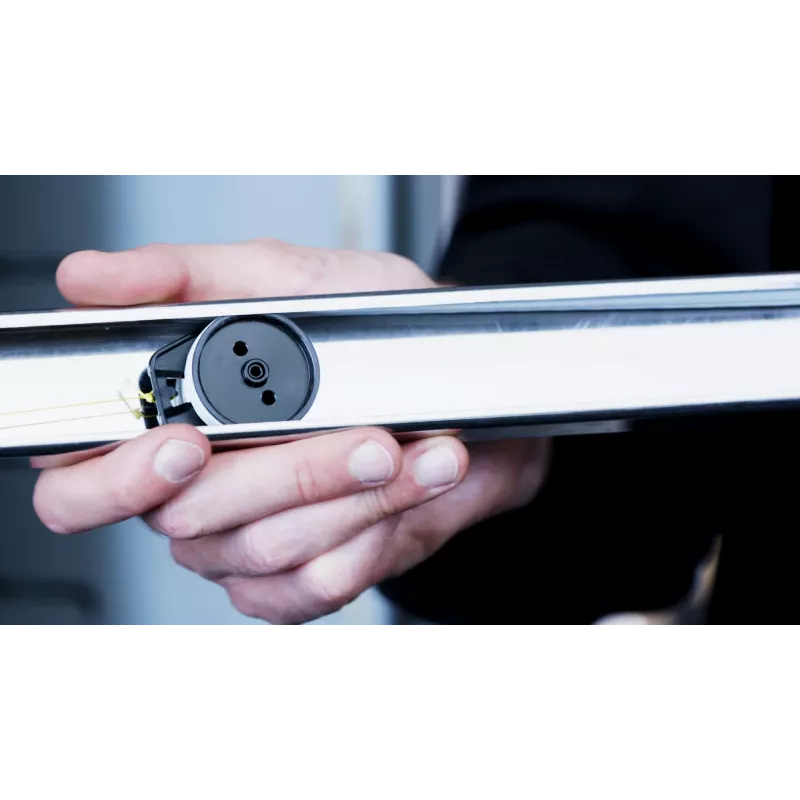

PATCHBOX® Cassettes form the modular connection units for PATCHBOX® systems and contain the patented mechanism that organises patch cables inside network cabinets. This product is a Cat6a U/FTP (STP) flat patch cable with RJ-45 connectors, 0.8 m length and white jacket, designed for use with PATCHBOX® Cassettes and Frames. The cable supports data rates up to 10000 Mbit/s, has gold-plated contacts and is suitable for PoE applications when combined with compatible PATCHBOX® components.

Advantages

The U/FTP (STP) construction provides improved protection against electromagnetic interference compared with unshielded cables. Cat6a channel compliance ensures support for 10 Gbit/s networks across the channel, and gold-plated RJ-45 contacts improve long-term connectivity and corrosion resistance. The flat cable design reduces space requirements inside PATCHBOX® Cassettes and facilitates neat routing in the cabinet.

Suitable for

• Intra-rack connections inside PATCHBOX® Cassettes and PATCHBOX® Frames
• High-speed 10 Gbit/s Ethernet links within a network cabinet
• Environments requiring shielded U/FTP cabling to limit interference
• PoE and higher-power PoE++ installations when used according to specifications

Key specifications

• Product name: PATCHBOX C36STPXC6AXX1W
• Standard: Cat6a (ISO/IEC 11801 Channel Class Ea, ANSI/TIA-568 Cat6A Channel tested)
• Cable type: U/FTP (STP), flat, twisted pairs
• Connectors: RJ-45 – RJ-45, gold-plated contacts
• Length: 0.8 m
• Colour: White
• Data rate: up to 10000 Mbit/s
• Weight: 0.23 kg
• PoE capability: STP: PoE; UTP variants support PoE++ (802.3bt, Type 3, 60 W) where applicable

How to use

Install the cable by inserting the RJ-45 connectors into the corresponding PATCHBOX® Cassette ports or device RJ-45 sockets until the latch clicks. Route the flat cable through the cassette mechanism and the PATCHBOX® Frame to maintain organised cable paths and avoid tight bends. Verify link status on connected equipment and ensure that the cable length and shielding meet the channel requirements for Cat6a installations.

Recommendations

Use this Cat6a U/FTP patch cable inside PATCHBOX® Cassettes and Frames for short interconnections within network cabinets. Avoid sharp bends and excessive tension on the cable; maintain recommended bend radius and separate power cabling where possible. For fibre connections or other connector types, consult PATCHBOX® product options.
