Passive holder Brodit 550888 Tablet/UMPC Black

The Brodit 550888 passive charging cradle is a lockable holder designed for Tablets and UMPCs with rugged frames, with or without an expansion module or handstrap. It provides a custom fit, robust construction and full access to the camera, buttons and ports while keeping the device securely positioned. The cradle includes two keys and can be mounted to any flat surface or to a Pedestal Mount in vehicles, warehouses or distribution environments. It features predrilled AMPS and VESA holes and is made in Sweden from high-grade ABS and Acetal plastics in black.

Advantages

The holder offers an extra robust design with a mechanical lock (two keys included) for secure retention, while maintaining access to the device’s camera, controls and connectors. It supports both USB data connection and pogo-pin charging via an internal connector and provides DC power input for use with external power cables. The cradle is predrilled for standard AMPS and VESA mounting and is suitable for fixed installation on flat surfaces or compatible mounts.

Suitable for

• Tablets and UMPCs with rugged frame
• Devices with or without expansion module or handstrap
• Fixed installations in vehicles, trucks and distribution vans (on Pedestal Mounts)
• Indoor mounting on desks, counters or warehouse surfaces

Key specifications

• Type: Passive holder
• Model: Brodit 550888
• Device compatibility: Tablet / UMPC with rugged frame
• Lock: Mechanical lock with 2 keys included
• Power connections: DC input (power supply not included), pogo-pin charging
• Data connection: USB connector for data
• Mounting: Predrilled AMPS and VESA holes
• Material: ABS and Acetal plastic
• Colour: Black
• Made in: Sweden

How to use

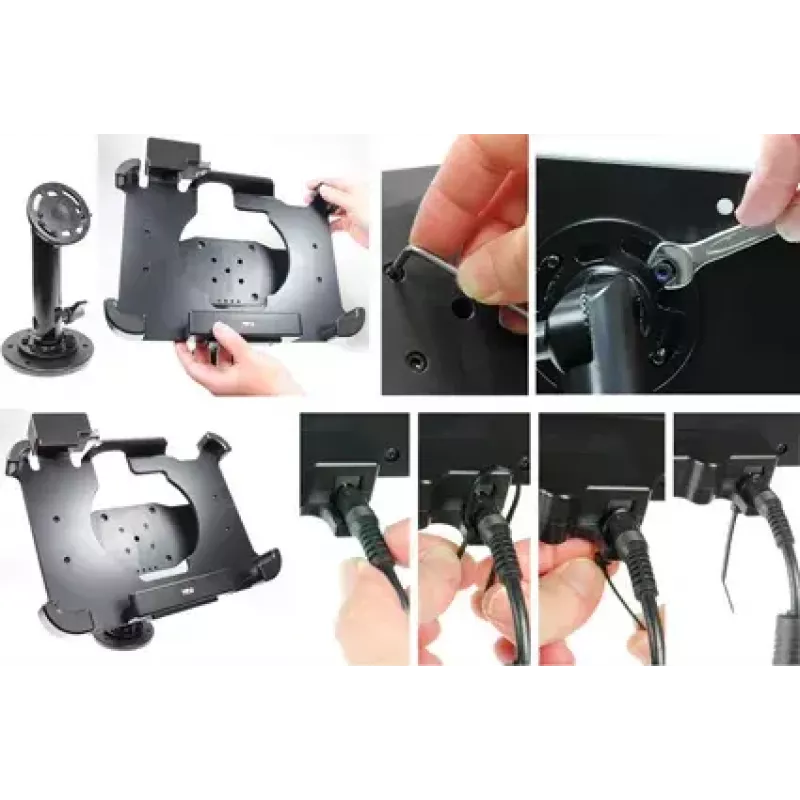

Attach the cradle to a flat surface or to a compatible Pedestal Mount using the predrilled AMPS or VESA holes. Place the Tablet/UMPC into the holder — the custom-fit design will position the device while allowing full access to camera, buttons and ports. Close and lock the holder; two keys are supplied for removal. For charging, connect an appropriate external power supply to the cradle’s DC input (power supply not included) so the device charges via the pogo-pin connection. Use the USB connector when a data connection is required.

Recommendations

Do not install the holder on a vehicle dashboard if it obstructs the driver’s view or key controls. Choose a power supply matching the cradle’s input specifications (examples: item no. 941017 — 12V cigarette lighter cable, 3A out; item no. 941012 — hard wire cable for fixed installation, 12V, 3A). Installation in vehicles is performed at the customer’s own responsibility.
