Enclosure Rittal DK 7220.600

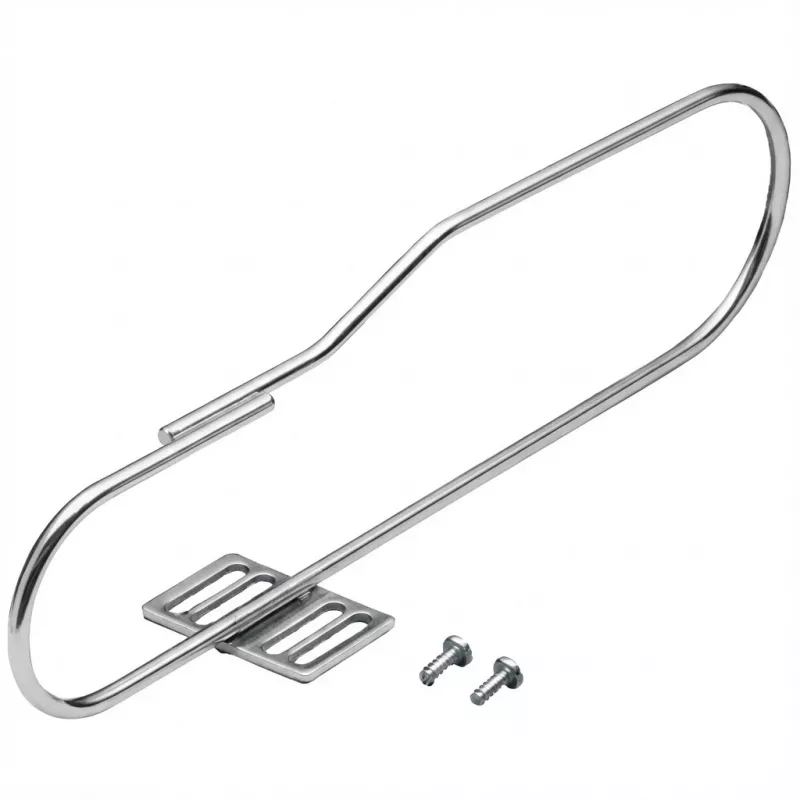

Shunting ring made of round zinc-plated, passivated steel, intended for use with electrical enclosures and cable organizing systems. The part measures 300 mm × 90 mm and is designed to provide a durable conductive connection or equipotential bonding point in installations.

Advantages

The zinc-plated, passivated finish protects the steel against corrosion while maintaining good electrical conductivity. Compact dimensions (300 × 90 mm) and a lightweight construction (220 g as referenced for the related enclosure) make the shunting ring easy to install in confined spaces. The round-steel construction provides mechanical strength and reliable contact surface for bonding.

Suitable for

• Electrical enclosures and control cabinets
• Cable organizer systems and cable routing panels
• Equipotential bonding and grounding connections
• Industrial and commercial electrical installations

Key specifications

• Material: Round steel, zinc-plated, passivated
• Dimensions (W × H): 300 mm × 90 mm
• Compatible product: Rittal DK 7220.600 (Enclosure)
• Manufacturer part number (MPN): 7220600
• EAN: 4028177305489

How to use

Mount the shunting ring at the designated bonding or grounding point inside the enclosure or on the cable organizer, ensuring secure mechanical and electrical contact with the enclosure body or grounding conductor. Use appropriate fasteners and torque values consistent with the enclosure manufacturer's instructions to achieve reliable equipotential bonding.

Recommendations

For safe and compliant installation, follow local electrical codes and the Rittal DK 7220.600 enclosure instructions. Verify electrical continuity after installation and use corrosion-resistant fasteners where prolonged exposure to moisture or aggressive environments is expected.
