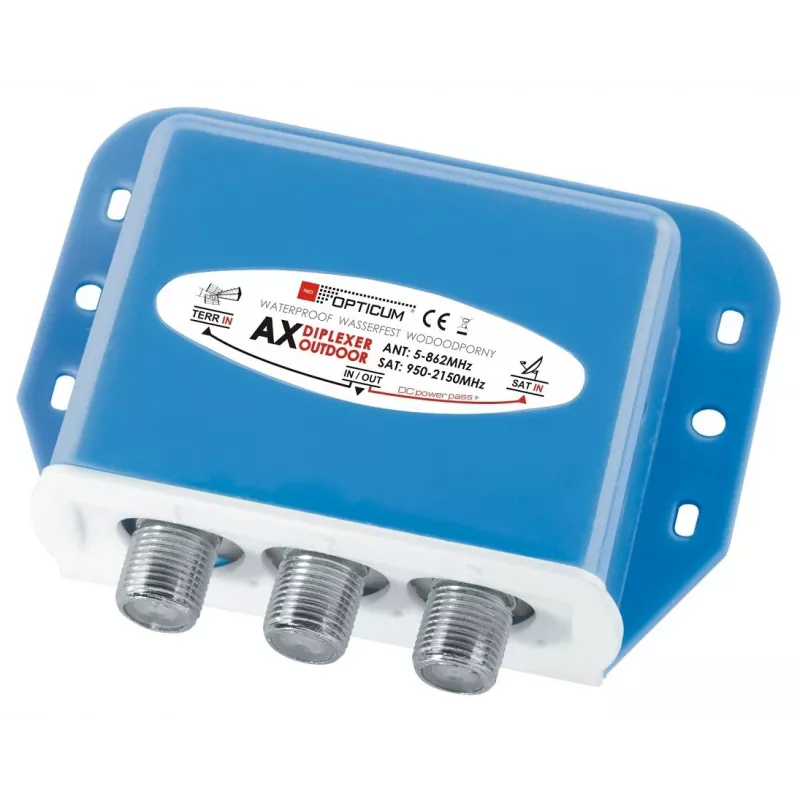

OPTICUM RTV/SAT Combiner Diplexer 5-2400 MHz F-Type

Combining terrestrial TV and satellite signals onto a single cable often leads to interference and signal loss. The OPTICUM RTV/SAT Combiner solves this by merging RTV (5-862 MHz) and SAT (950-2400 MHz) bands into one output, preserving signal integrity with low insertion loss and high isolation. Ideal for distributing both services over existing coax runs.

Who is it for

This combiner is perfect for installers and homeowners who need to feed a single satellite receiver or distribution system with both terrestrial and satellite signals. It suits setups where only one cable is available, or where simplifying cabling is desired without sacrificing performance.

Main features

• Combines RTV and SAT signals into one output
• Wide frequency range: 5-2400 MHz
• Low insertion loss: < 1.5 dB on both paths
• High isolation: > 25 dB between RTV and SAT
• DC pass on SAT path for LNB power
• F-type female connectors, 75 Ohm impedance
• Die-cast metal housing, weather-resistant

Specifications

• RTV frequency range: 5-862 MHz
• SAT frequency range: 950-2400 MHz
• Combined output frequency: 5-2400 MHz
• RTV insertion loss: < 1.5 dB
• SAT insertion loss: < 1.5 dB
• RTV-SAT isolation: > 25 dB
• SAT-RTV isolation: > 25 dB
• DC pass: Yes (SAT path)
• Connectors: F-type female
• Impedance: 75 Ohm
• Housing: Die-cast metal
• Installation: Indoor/Outdoor
• Operating temperature: -20°C to +50°C

Tips

For best results, install the combiner close to the satellite dish or antenna, and use high-quality coaxial cable to minimize losses. Ensure all connectors are properly tightened to prevent signal leakage.
