OPTICUM 1x6 DVB-T/SAT Signal Splitter 5-2400 MHz

OPTICUM 1x6 DVB-T/SAT Signal Splitter 5-2400 MHz
OPTICUM 1x6 DVB-T/SAT Signal Splitter 5-2400 MHz
OPTICUM 1x6 DVB-T/SAT Signal Splitter 5-2400 MHz
OPTICUM 1x6 DVB-T/SAT Signal Splitter 5-2400 MHz
OPTICUM 1x6 DVB-T/SAT Signal Splitter 5-2400 MHz
OPTICUM 1x6 DVB-T/SAT Signal Splitter 5-2400 MHz
OPTICUM 1x6 DVB-T/SAT Signal Splitter 5-2400 MHz
OPTICUM 1x6 DVB-T/SAT Signal Splitter 5-2400 MHz
OPTICUM 1x6 DVB-T/SAT Signal Splitter 5-2400 MHz
OPTICUM 1x6 DVB-T/SAT Signal Splitter 5-2400 MHz
R130
Passive 1x6 signal splitter for distributing DVB-T, DVB-C, SAT, FM, and DAB signals across six outputs. Its wide 5–2400 MHz frequency range and low insertion loss ensure reliable signal distribution to multiple receivers.AdvantagesBuilt with a nickel-plated zinc alloy housing for durability and high... Read More
Stock 7 Code 3312515 Brand OPTICUM Model ANT0044 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

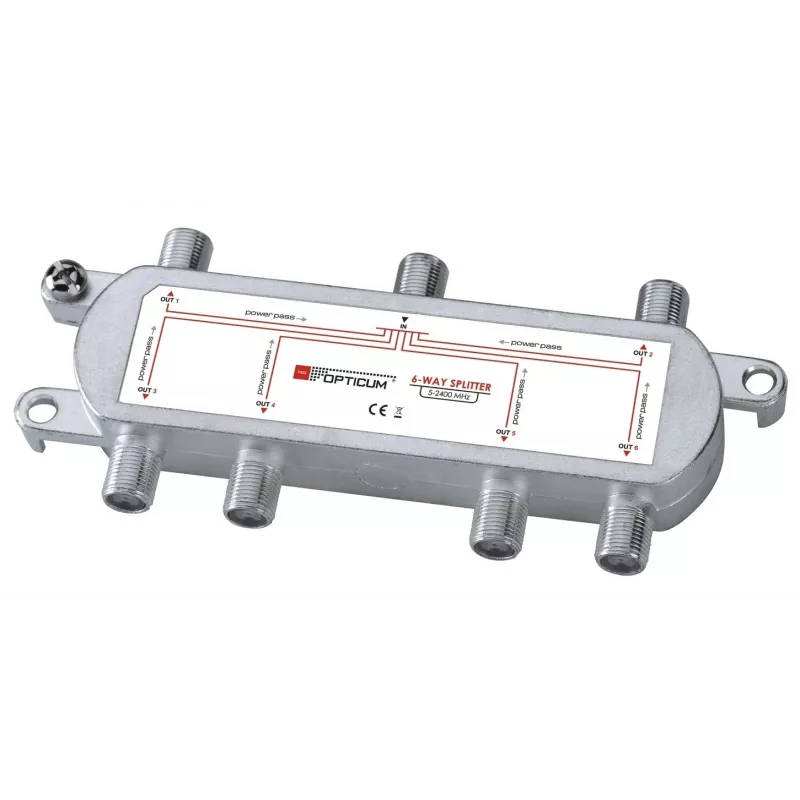

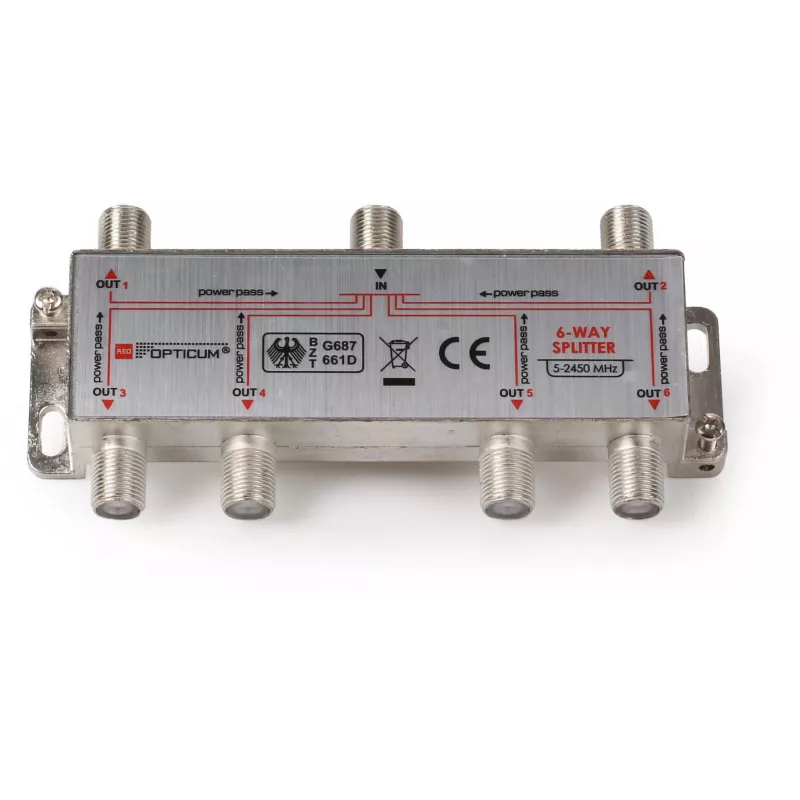

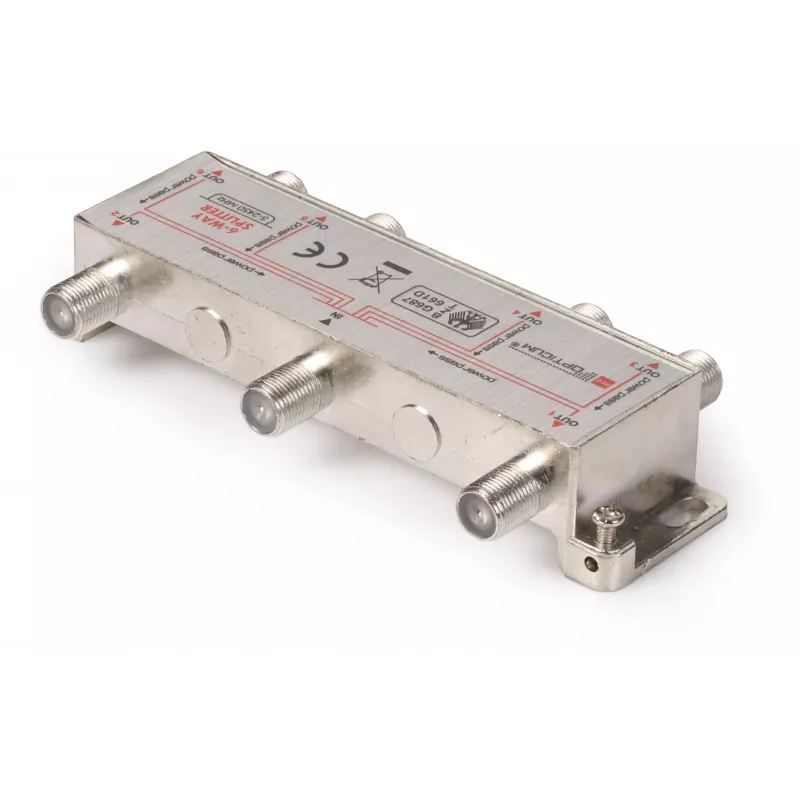

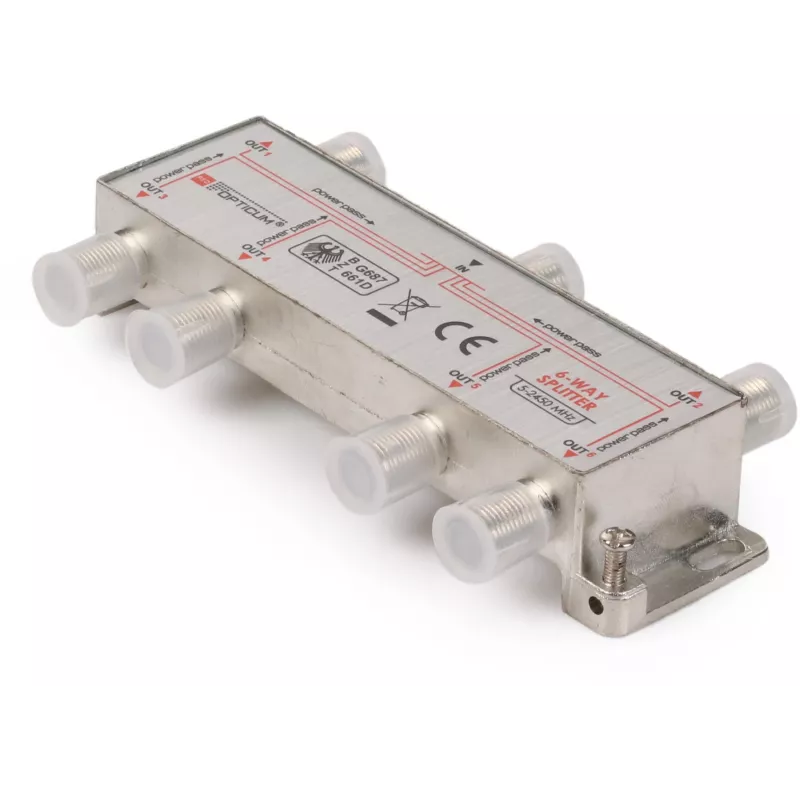

Passive 1x6 signal splitter for distributing DVB-T, DVB-C, SAT, FM, and DAB signals across six outputs. Its wide 5–2400 MHz frequency range and low insertion loss ensure reliable signal distribution to multiple receivers.

Advantages

Built with a nickel-plated zinc alloy housing for durability and high shielding effectiveness (>100 dB) to minimize interference. DC pass-through on one output allows remote powering of an active antenna or LNB. Screw mounting holes enable secure installation.

Suitable for

  • Distributing terrestrial TV signals to multiple rooms
  • SAT IF distribution in multi-dwelling units
  • Combining FM/DAB radio signals
  • Home and small commercial installations

Key specifications

  • Frequency range: 5–2400 MHz
  • Insertion loss: ≤10.5 dB (5–40 MHz), ≤11.0 dB (40–470 MHz), ≤11.5 dB (470–860 MHz), ≤13.0 dB (950–1750 MHz), ≤14.0 dB (1750–2400 MHz)
  • Isolation between outputs: ≥20 dB
  • Return loss: ≥10 dB
  • Impedance: 75 Ohm
  • Connectors: F-type female
  • DC pass: Yes, one output to input
  • Housing: Zinc alloy, nickel-plated

Recommendations

Ideal for installers needing a rugged, high-performance splitter for mixed terrestrial and satellite signal distribution. Pair with quality F-type connectors and RG6 coaxial cable for best results.

Specifications
Brand
OPTICUM
Cables included
No
Category
Signal Splitter
Colour
Silver
Connectivity technology
Wired
DC-in jack
No
EAN
5903175950031
Ethernet LAN
No
Ethernet LAN (RJ-45) ports
0
Model
ANT0044
Mounting kit
Yes
MPN
ANT0044
Networking standards
DVB-T, DVB-C, DVB-S, FM, DAB
Placement supported
Wall-mountable
Power source type
Passive
Power supply included
No
Product colour
Silver
Quick installation guide
No
Remotely operated
No
Weight
1 kg
Wi-Fi
No
