Omni-directional network antenna QuWireless QuSpot AX12S PoE/LAN, multi-band 0.694–6 GHz, max gain 3 dBi, white

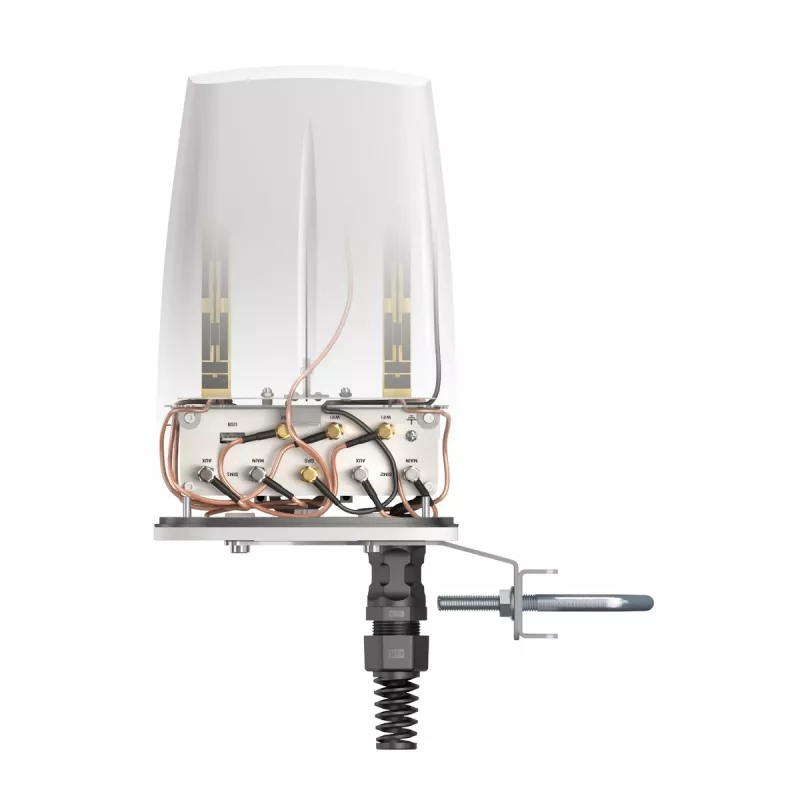

QuWireless QuSpot AX12S is an omni-directional outdoor antenna enclosure designed to host a Teltonika RUTX12 or RUTX14 router and provide multi-band cellular coverage together with integrated Wi‑Fi, GPS and Bluetooth antennas. The unit supports a wide range of frequency bands from 0.694–6 GHz, offers vertical polarization, and comes with an RJ‑45 cable suitable for PoE/LAN connection. Its compact dimensions and white housing make it suitable for fixed or mobile outdoor installations where a combined router-and-antenna solution is required.

Advantages

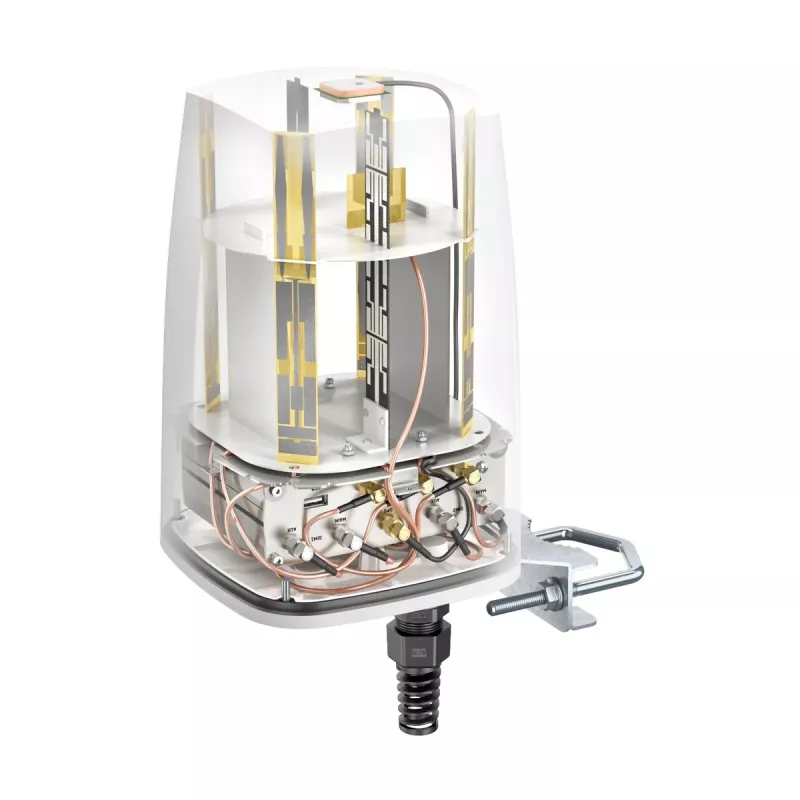

The integrated all‑in‑one design combines a multi‑band LTE omni antenna, dual‑band 2.4/5 GHz Wi‑Fi omni antenna, GPS and Bluetooth antennas in a single enclosure with a dedicated mounting space for a Teltonika RUTX12 or RUTX14 router. Broad frequency support (0.694–0.96 / 1.7–2.2 / 2.2–2.7 and 2.4–2.5 / 4.7–6 GHz) and a typical gain of 2–3 dBi simplify deployment across multiple networks and applications. The included RJ‑45 cable and PoE/LAN compatibility reduce the need for separate cabling and power sources.

Suitable for

• Outdoor or indoor wireless coverage extension
• Small base stations and public hotspots
• Industrial and CCTV installations
• Mobile platforms: yachts, boats, campers, RVs
• IoT gateways and remote connectivity sites

Key specifications

• Frequency bands: 0.694–0.96 / 1.7–2.2 / 2.2–2.7 and 2.4–2.5 / 4.7–6 GHz
• Maximum antenna gain: 3 dBi (typical 2–3 dBi)
• Polarization: vertical
• Dimensions: 160 × 160 × 240 mm
• Weight: 1.5 kg
• Color: white
• Interfaces: RJ‑45 cable for PoE/LAN connection

How to use

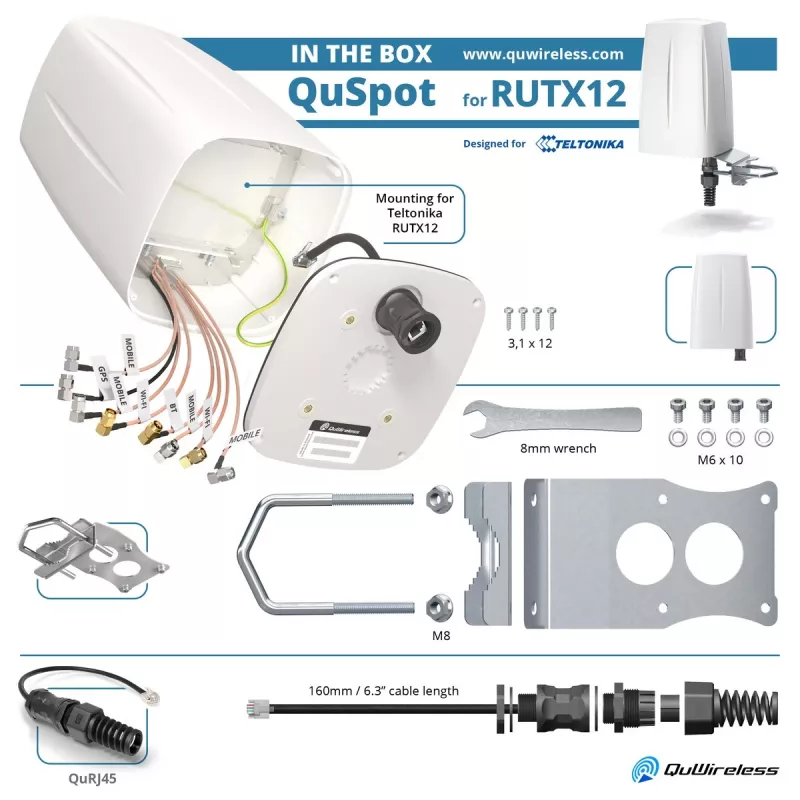

Install the QuSpot AX12S on a suitable mast or wall mount in a location with clear exposure to the desired cellular and Wi‑Fi coverage area. Place and secure a Teltonika RUTX12 or RUTX14 router into the dedicated compartment following the router manufacturer’s mounting instructions. Connect the included RJ‑45 cable to the router and to a PoE switch or PoE injector for power and network connectivity. Verify antenna orientation and check signal levels from the router’s status interface to fine‑tune placement for optimal reception.

Recommendations

For best performance, mount the antenna at least a few meters above surrounding obstructions, use shielded outdoor-rated Ethernet cabling for long runs, and follow local regulations for antenna installation. Perform a signal survey after installation to confirm the optimal position and orientation.
