Omni-directional network antenna QuWireless QuSpot AX10S, 2.4–2.5 / 4.7–6 GHz, max 7 dBi, PoE/LAN, vertical polarization

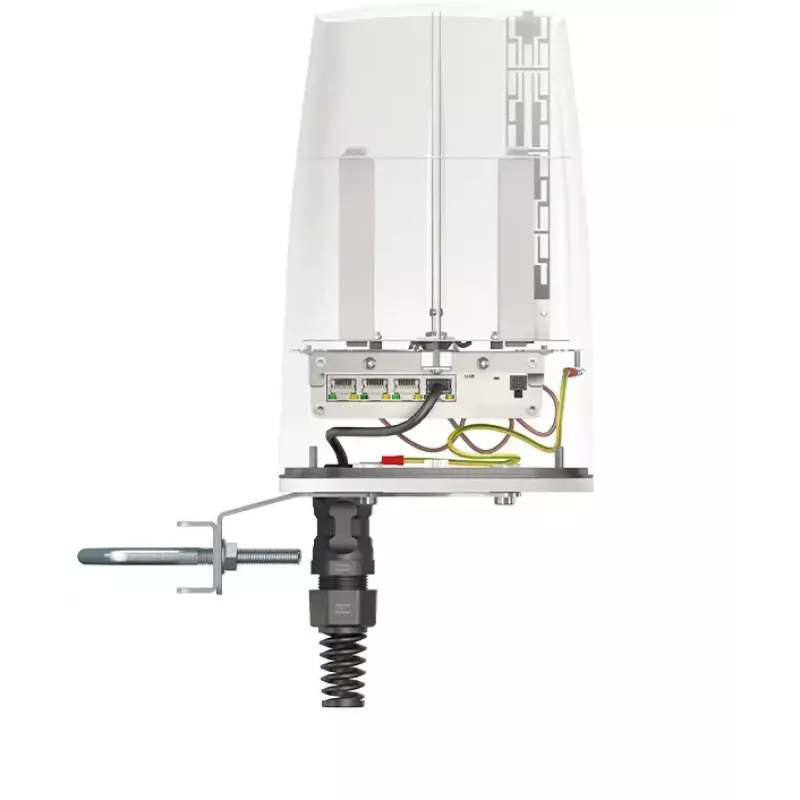

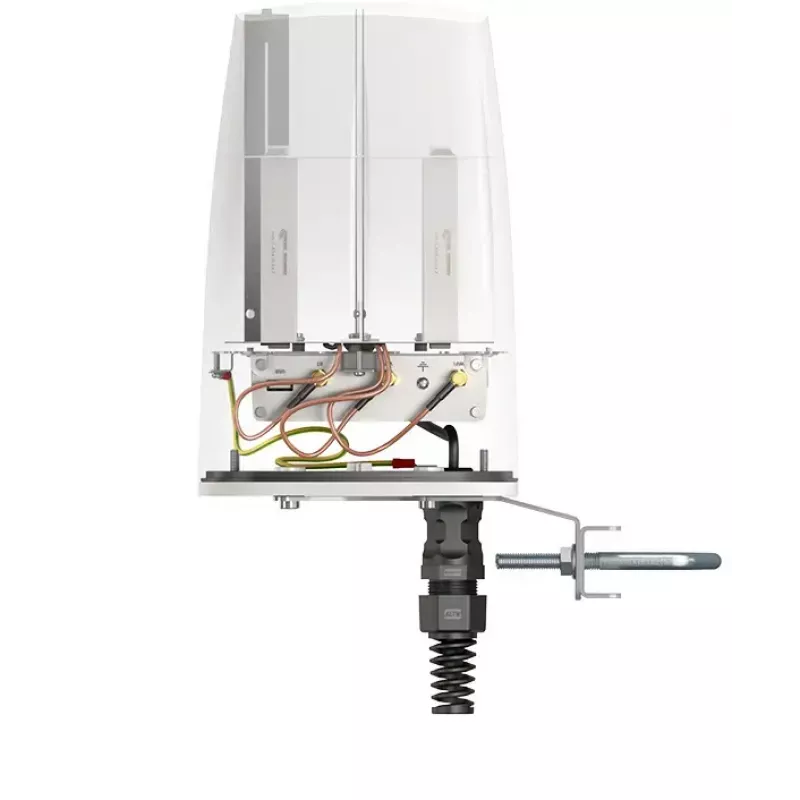

QuWireless QuSpot AX10S is an omni-directional network antenna designed for dual-band wireless coverage across 2.4–2.5 GHz and 4.7–6 GHz frequency ranges. The compact enclosure (160×160×240 mm) integrates multi-band Wi‑Fi and Bluetooth omni antennas and offers a space to install a compatible router, creating an all-in-one outdoor-ready assembly. The antenna provides up to 7 dBi peak gain (6 dBi at 2.4 GHz), uses vertical polarization and connects via PoE/LAN for power and data transport.

Advantages

The AX10S combines omni-directional coverage with a small footprint and integrated mounting options, simplifying deployment for mobile and fixed installations. Built for sheltered outdoor or indoor use, it supports a broad high-frequency band up to 6 GHz and includes Bluetooth capability alongside dual-band Wi‑Fi support. PoE/LAN connectivity reduces cable complexity and enables centralized power delivery and network management.

Suitable for

• Extending Wi‑Fi links and broad area wireless coverage
• Integrating with routers in mobile installations such as yachts, RVs and campers
• Industrial and CCTV network deployments requiring an all-in-one antenna and router enclosure
• Public hotspots and temporary outdoor coverage in sheltered locations

Key specifications

• Frequency ranges: 2.4–2.5 GHz and 4.7–6 GHz
• Maximum gain: up to 7 dBi (6 dBi at 2.4 GHz)
• Polarization: vertical
• Impedance: 50 Ω
• Connectivity: PoE/LAN for power and data
• Form factor: compact enclosure 160×160×240 mm with wall/pole mounting options
• Integrated: Wi‑Fi dual-band omni antenna and Bluetooth omni antenna; space to install a compatible router

How to use

Install the QuSpot AX10S on a wall or pole in a sheltered outdoor location or indoors where broad omni coverage is required. Mount the enclosure using the provided brackets and position the unit vertically to match the antenna polarization. Connect a PoE-capable switch or injector to the LAN/PoE port to supply power and network connectivity. If installing a compatible router in the provided space, follow the router manufacturer’s installation steps and cable routing recommendations to maintain weather protection and reliable connections.

Recommendations

Place the antenna clear of large metal obstructions and at an elevated position for best omni-directional coverage. Use outdoor-rated cabling and sealed connectors for sheltered outdoor installations. Verify compatibility and recommended placement when installing a specific router inside the enclosure to ensure ventilation and secure mounting.
