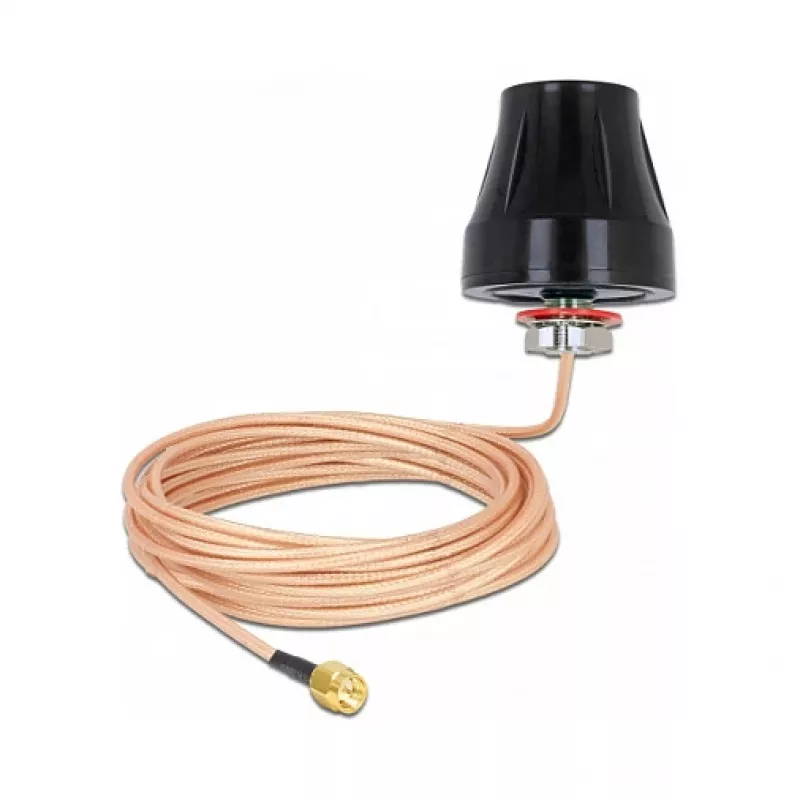

Omni-directional antenna DeLOCK 89899

The DeLOCK 89899 is an omni-directional LTE antenna designed for indoor and outdoor use. It operates across a wide frequency range (0.694–0.96 / 1.71–2.7 GHz) with a maximum gain of 2 dBi, 50 Ω impedance and an SMA connector, making it compatible with GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa (868 MHz / 915 MHz).

Advantages

The antenna offers omni-directional reception for uniform coverage, a compact black housing suitable for varied installations and a broad frequency range that supports multiple wireless standards. With a VSWR of 2–3 and SMA connectivity, it provides straightforward integration with many routers, modems and radio devices.

Suitable for

Key specifications

How to use

Mount the antenna in a stable position indoors or outdoors where it has a clear view of the signal source. Connect the SMA plug to the corresponding SMA socket on your router, modem or radio device. Adjust orientation for best reception; as an omni-directional antenna it generally performs well when placed vertically. Ensure all connectors are tightened securely and protected from moisture if installed outdoors.

Recommendations

For optimal results, place the antenna away from large metal objects and high-interference sources. If used outdoors, use weatherproofing tape or a protective cover for the connector and check local regulations for antenna installations.
