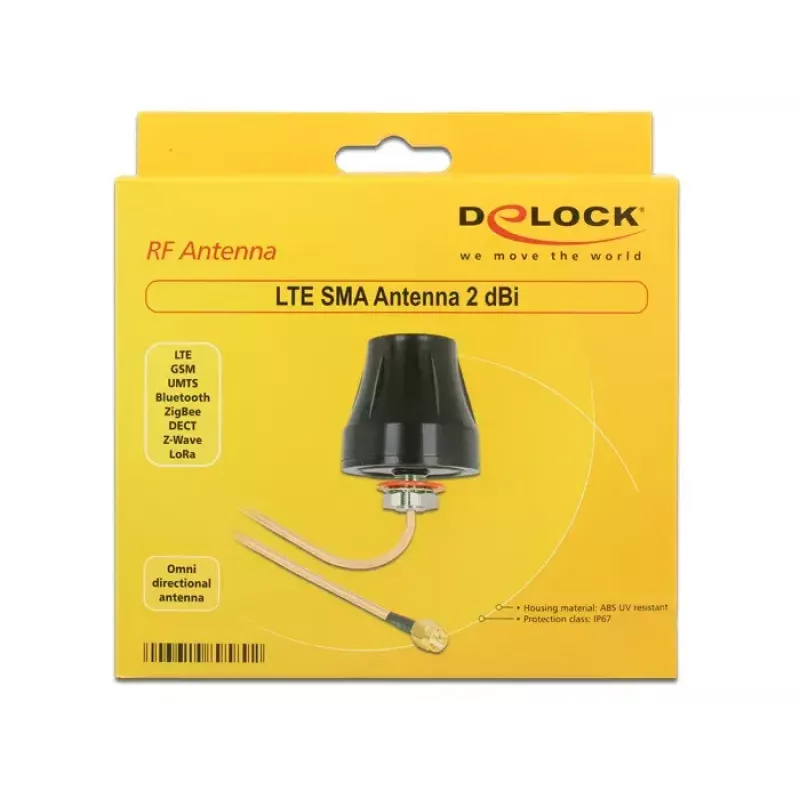

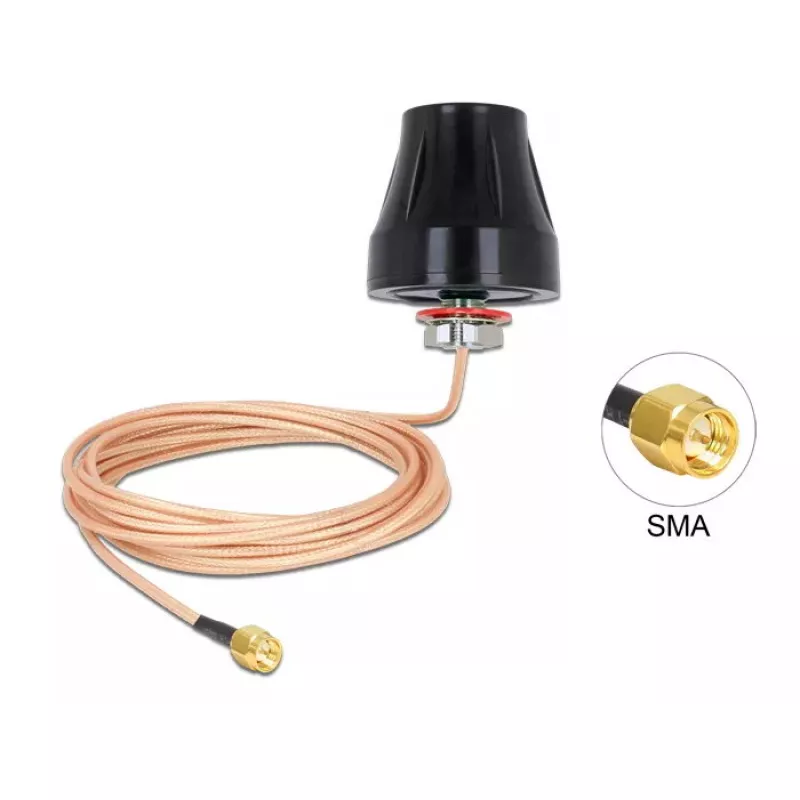

Omni-directional antenna DeLOCK 89589

The DeLOCK 89589 is an omni-directional LTE antenna designed for indoor and outdoor use. It operates across a wide frequency range of 0.694–0.96 GHz and 1.71–2.7 GHz, with a maximum gain of 2 dBi, 50 Ω impedance and linear polarization. Its compact dimensions (50 × 50 × 48 mm) and multi‑protocol compatibility make it suitable for improving reception for GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z‑Wave and LoRa (868/915 MHz).

Advantages

The antenna provides omni‑directional coverage with a modest 2 dBi gain to improve signal reception from multiple directions. Its broad frequency support covers common LTE bands and several short‑range wireless protocols, while the 50 Ω impedance ensures compatibility with standard RF equipment. The compact, lightweight housing simplifies installation both indoors and outdoors.

Suitable for

Key specifications

How to use

Connect the DeLOCK 89589 to a compatible RF connector or adapter on your router, modem or gateway following the device manufacturer’s instructions. Place the antenna in a position with a clear line of sight where possible, and mount it securely for either indoor or outdoor operation. Adjust the orientation to find the best reception; as an omni‑directional antenna it receives signals from all directions, so small position changes can affect performance.

Recommendations

For optimal LTE and wireless performance, install the antenna as high as practical, avoid obstructions and keep a safe distance from large metal objects and strong RF sources. Verify connector compatibility and cable quality to minimize signal loss.
