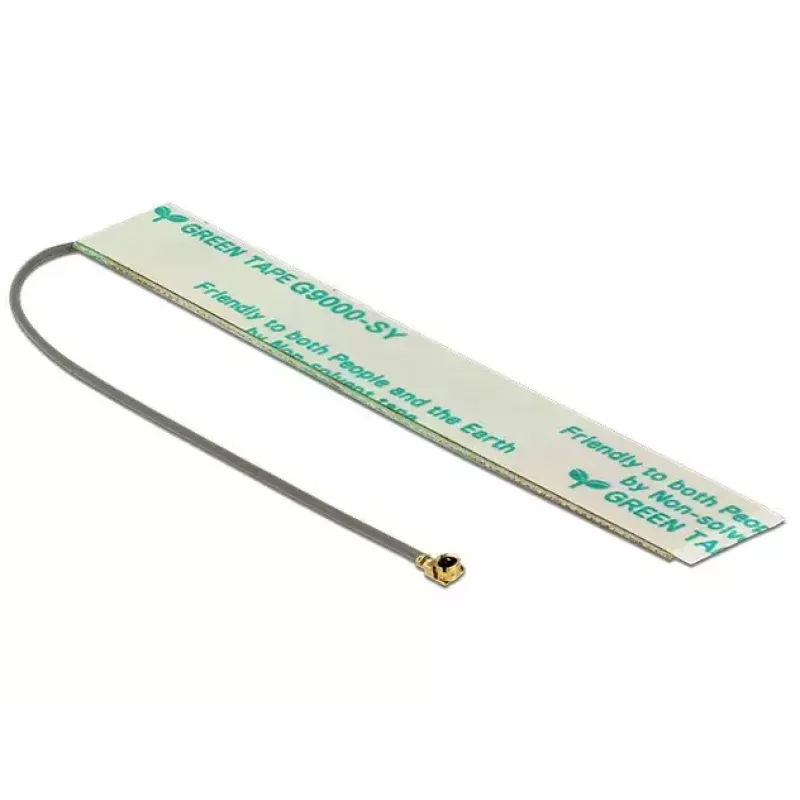

Omni-directional antenna DeLOCK 88988

The DeLOCK 88988 omni-directional antenna is designed for indoor installation to improve reception across multiple LTE bands. It is compatible with UMTS, GSM, WLAN 2.4 GHz and ZigBee networks. The antenna provides 3 dBi gain, 50 Ω impedance and uses an MHF connector, with a VSWR of 2.0:1. Its compact dimensions (14 mm × 96 mm × 0.9 mm) and neutral green/grey colour make it suitable for integration into various wireless devices and network setups.

Advantages

The antenna offers omni-directional coverage with a moderate 3 dBi gain to enhance signal reception indoors. With a 50 Ω impedance and VSWR 2.0:1 it ensures electrical compatibility with common wireless equipment. Compatibility with UMTS, GSM, WLAN 2.4 GHz and ZigBee supports use across different wireless standards. The small form factor and MHF connector simplify installation in constrained spaces.

Suitable for

Key specifications

How to use

Attach the MHF connector to the matching socket on your device according to the device manufacturer’s instructions. Position the antenna indoors in a location that provides the clearest line of sight to the signal source where possible, avoiding large metal obstructions. Secure the antenna so it remains stable and aligned; the omni-directional pattern will provide coverage without the need for precise aiming.

Recommendations

For best performance, place the antenna at a moderate height away from other electronic devices that may cause interference. Test different indoor positions to find the optimal placement for your specific LTE, WLAN or ZigBee environment.
