Omni-directional antenna DeLOCK 12631

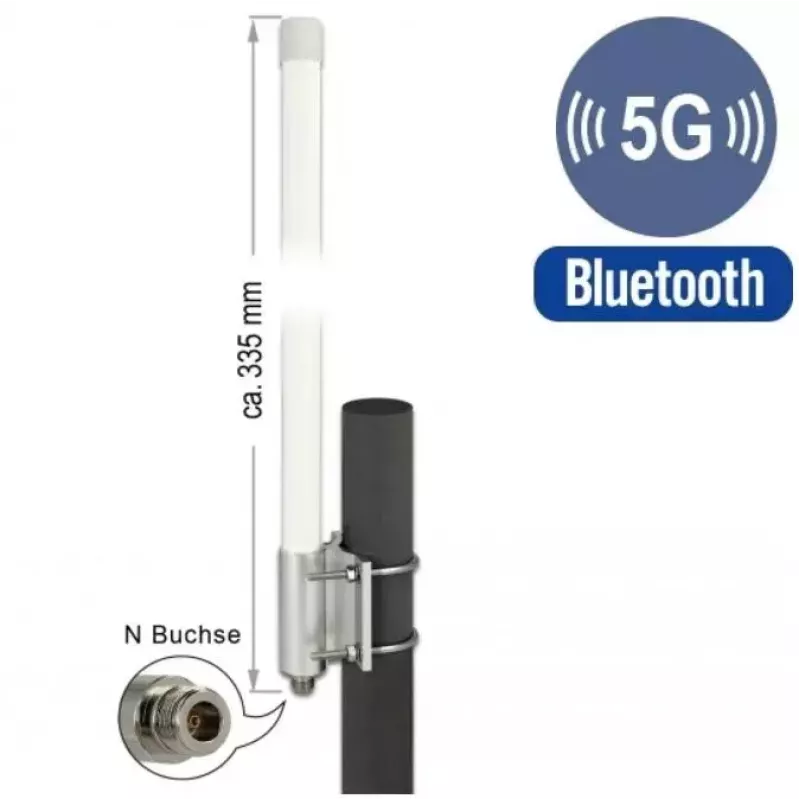

The DeLOCK 12631 omni-directional antenna is a waterproof outdoor antenna designed to support multiple mobile and wireless standards including 5G, LTE, UMTS, GSM, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT and LoRa. It provides an omnidirectional 360° horizontal radiation pattern with a gain of 2.93 dBi, 50 Ω impedance and an N-type male connector. The antenna measures 335 mm in height, has a diameter of 2.7 cm, weighs 284 g and can handle up to 100 W of power.

Advantages

The antenna’s waterproof design enables reliable outdoor use across a wide range of frequency bands, while the omnidirectional 360° pattern simplifies placement by providing uniform coverage around the installation point. Compact dimensions and a low weight make mounting straightforward, and the N-type male connector ensures compatibility with many outdoor radio setups. The broad protocol compatibility allows one antenna to serve multiple applications and devices.

Suitable for

• Outdoor 5G and LTE signal reception and distribution
• IoT networks using NB-IoT, ZigBee, Z-Wave or LoRa
• WLAN 2.4 GHz and Bluetooth extension in outdoor or semi-outdoor areas
• DECT and other ISM band applications

Key specifications

• Antenna type: omnidirectional
• Gain (max): 2.93 dBi
• Horizontal beam width: 360°
• Impedance: 50 Ω
• Connector: N-type male
• Maximum power: 100 W
• Dimensions: 335 mm height, 2.7 cm diameter
• Weight: 284 g
• Colour: White

How to use

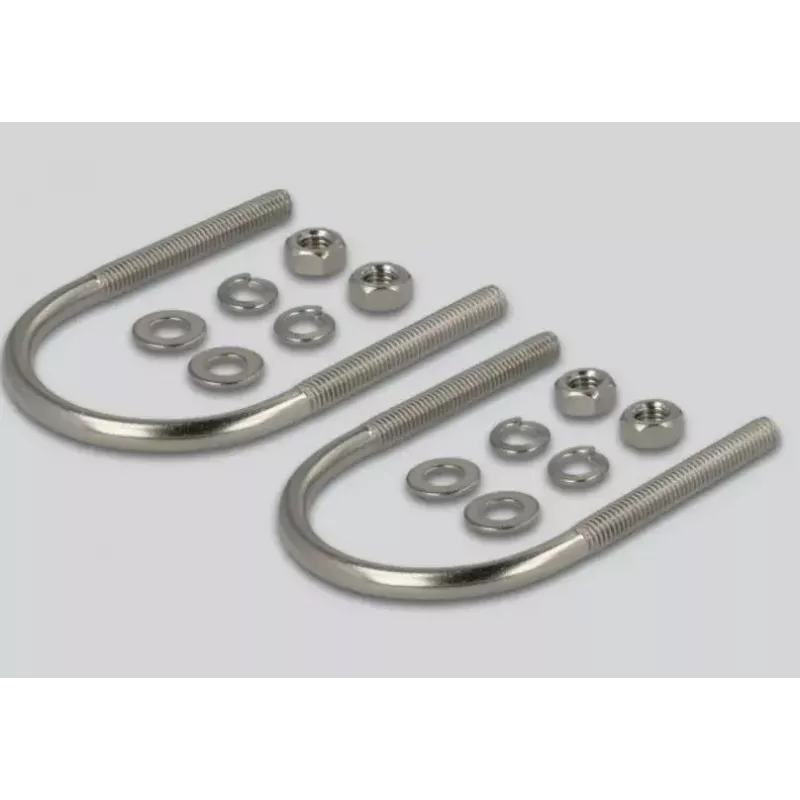

Mount the antenna outdoors in a location with a clear line of sight to the desired coverage area, using appropriate brackets or mounting hardware (not included). Connect the antenna to your radio, router or gateway using a compatible N-type female cable assembly. Ensure the connected equipment is powered down while making the connection. After installation, power up the system and verify signal levels and device operation. Adjust position or height as needed to optimise reception.

Recommendations

For outdoor installations, choose a mounting point that minimises obstructions and exposure to extreme mechanical stress. Use weatherproof cable glands and corrosion-resistant fittings for long-term reliability. Verify that the connected device supports the intended frequency bands (5G, LTE, NB-IoT, etc.) before deployment.
