Omni-directional antenna DeLOCK 12430

The DeLOCK 12430 is an omni-directional indoor antenna designed to improve reception across multiple wireless bands. With a maximum gain of 4 dBi and coverage from 0.698 to 5.875 GHz, the antenna supports LTE and a range of other standards. Its compact white housing and SMA connector make it suitable for integration into routers, access points and other wireless equipment where multi-band reception is required.

Advantages

This omni-directional antenna provides broad frequency coverage including LTE bands, Wi‑Fi and short-range wireless protocols while maintaining a compact form factor. The 4 dBi gain helps enhance signal reception without directional alignment, and the SMA connector ensures compatibility with many consumer and professional devices. It is compatible with Bluetooth, UMTS, GSM, WLAN (dual band) and ZigBee networks.

Suitable for

• Improving indoor LTE reception
• Extending Wi‑Fi coverage for 2.4 GHz and 5 GHz networks
• Integrating with routers, gateways and access points
• Use with devices requiring Bluetooth, GSM, UMTS or ZigBee antennas

Key specifications

• Antenna type: omni-directional
• Frequency band: 0.698–0.791 / 0.824–0.960 / 1.710–2.170 / 2.400–2.500 / 5.150–5.875 GHz
• Gain (max): 4 dBi
• Connector: SMA

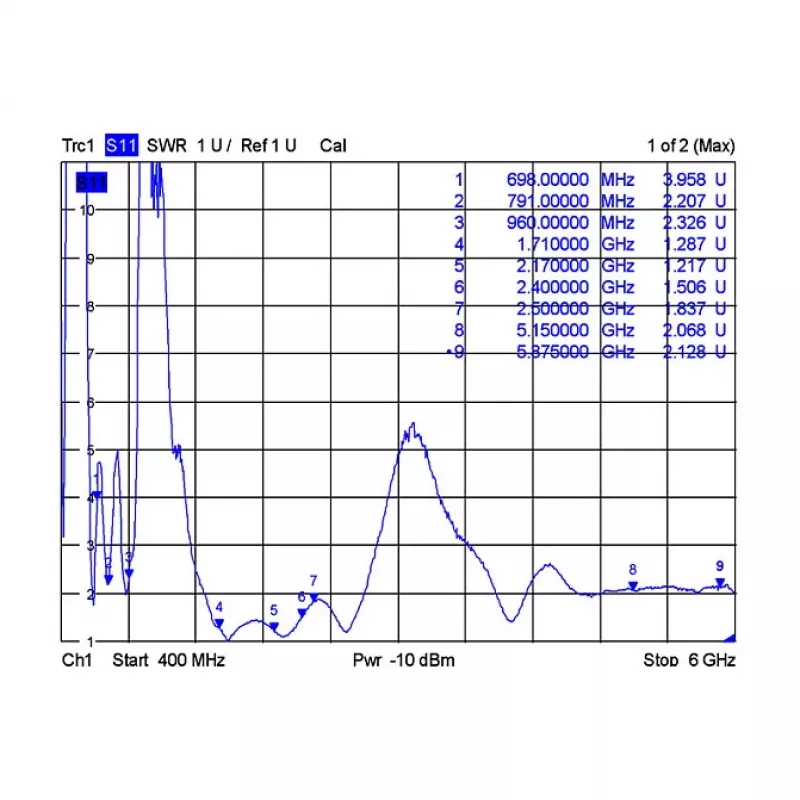

• VSWR: 2.5:1 to 5.0:1
• Colour: White

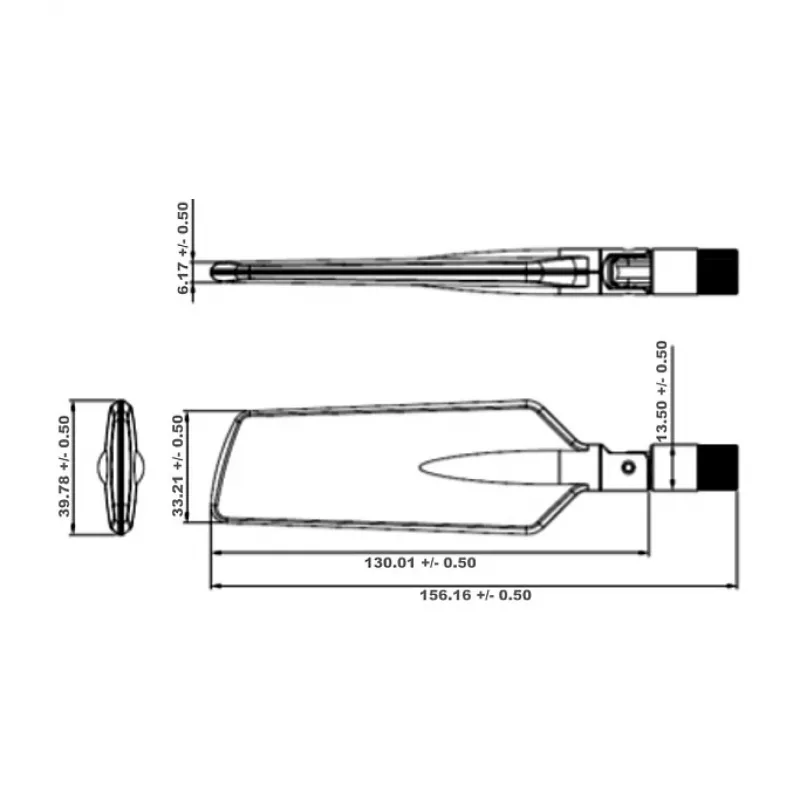

• Dimensions (W × D × H): 39.8 × 156.2 × 13.5 mm

How to use

Connect the antenna to a compatible SMA socket on your router, modem or wireless device. Position the antenna vertically in an indoor location with minimal obstructions for best omni-directional coverage. Adjust placement to find the best reception; avoid enclosing the antenna in metal cabinets or placing it directly behind large obstacles.

Recommendations

For optimal performance, place the antenna as high as practical and away from other electronic equipment that may cause interference. Verify device compatibility with an SMA connector and the required frequency bands before installation.
