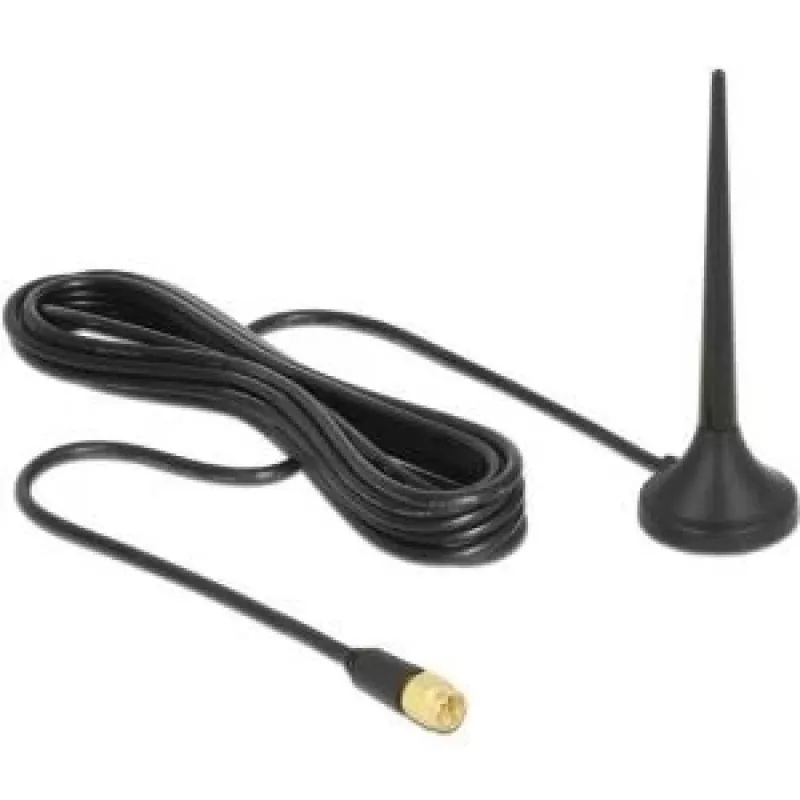

Omni-directional antenna DeLOCK 12416

The DeLOCK 12416 omni-directional antenna supports multiple mobile and wireless standards and covers frequency ranges of 0.8–0.96 GHz and 1.71–2.7 GHz. With a maximum gain of 3 dBi, vertical polarization and 50 Ω impedance, this compact antenna (29 × 29 × 88.7 mm) is supplied with an SMA connector and is suitable for indoor and outdoor use where stable reception across LTE, GSM and UMTS bands is required.

Advantages

The antenna offers multi-band coverage for mobile and short-range wireless technologies, a compact form factor for flexible installation, and a standard SMA connector for compatibility with many devices. Its 3 dBi gain and vertical polarization provide balanced omnidirectional reception for varied deployment scenarios.

Suitable for

• Extending LTE, GSM and UMTS reception for routers and gateways
• Improving signal for Bluetooth, WLAN 2.4 GHz and ZigBee devices
• Use with DECT, Z-Wave and LoRa (868/915 MHz) enabled equipment

Key specifications

• Frequency band: 0.8 - 0.96 / 1.71 - 2.7 GHz
• Antenna gain (max): 3 dBi
• Polarization: vertical
• Impedance: 50 Ω
• Connector: SMA
• Dimensions: 29 × 29 × 88.7 mm
• Colour: Black

How to use

Connect the SMA connector to the corresponding antenna port of your router, gateway or radio device. Position the antenna vertically for omnidirectional coverage and place it where reception is best — ideally elevated and away from large metal objects. For outdoor installations, ensure connectors and the device are protected against weather according to the host equipment’s guidelines.

Recommendations

For optimal performance, test different mounting positions and heights to locate the strongest signal. Use the antenna within the stated frequency ranges and ensure proper sealing of outdoor connections if used externally.
