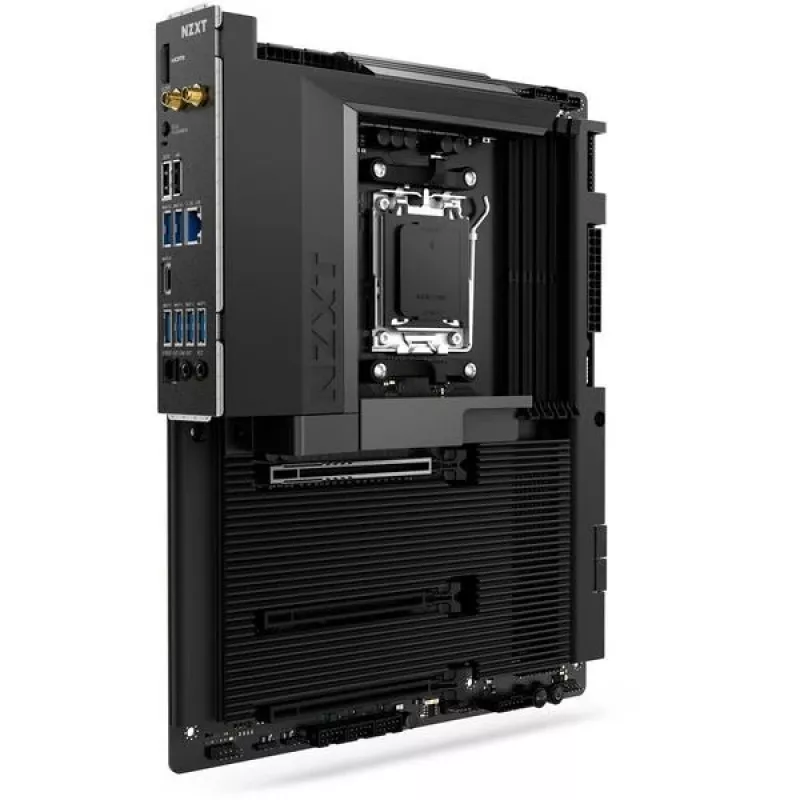

Motherboard NZXT N7 B850 AMD B850 Socket AM5 ATX

The NZXT N7 B850 is an ATX motherboard designed for AMD Socket AM5 processors, compatible with AMD Ryzen 7000, 8000, and 9000 series. It combines a refined full-cover PCB design with high-performance features including DDR5 memory support, multiple M.2 slots, PCIe 5.0 expansion, and modern networking options such as Wi‑Fi 6E and 2.5 Gigabit Ethernet. The board offers robust power delivery and thermal solutions suited for gaming and high-performance desktop builds. Update BIOS and drivers as specified for full compatibility and stability.

Advantages

The N7 B850 provides stable power through a 16+2+1 power phase design with high-current DrMOS and an eight-layer copper PCB for reliable CPU delivery. DDR5 support across four DIMM slots enables very high memory speeds and improved system responsiveness. Multiple M.2 slots, including a top PCIe 5.0 slot with an aluminum heatsink and quick-release latch, deliver fast storage performance. Built-in Wi‑Fi 6E and 2.5GbE networking give low-latency, high-bandwidth connectivity. The full PCB cover creates a clean, minimal aesthetic while helping to manage airflow and component layout.

Suitable for

• Gaming PCs using AMD Ryzen 7000/8000/9000 series CPUs
• High-performance desktop builds with DDR5 memory
• Systems requiring fast NVMe storage and PCIe 5.0 GPU support
• Home or office setups needing Wi‑Fi 6E and 2.5GbE networking

Key specifications

• Form factor: ATX
• Chipset: AMD B850
• CPU socket: AMD Socket AM5 (supports Ryzen 7000/8000/9000 series)
• Memory: 4 × DDR5 DIMM slots, dual-channel support, rated for high frequencies (8000+ MT/s supported)
• Storage: Three M.2 slots (one PCIe 5.0 with heatsink and quick-release latch, two PCIe 4.0) and SATA ports
• PCIe expansion: One PCIe 5.0 x16 slot and additional PCIe 4.0 x16 slots for expansion
• Audio codec: High-definition onboard audio
• Networking: Integrated Wi‑Fi 6E and 2.5 Gigabit Ethernet
• Power delivery: 16+2+1 phase design with high-current DrMOS and multi-layer copper PCB

How to use

Install the NZXT N7 B850 into an ATX-compatible case, seat an AMD Socket AM5 processor and apply the appropriate CPU cooler. Populate DDR5 DIMMs into matching slots for dual-channel operation and connect storage devices to the M.2 slots or SATA ports as required. Install your GPU into the PCIe 5.0 x16 slot for next-generation graphics performance and connect power supply cables to the motherboard’s ATX and CPU power connectors. After assembly, power on the system and enter the BIOS to verify component recognition and to update the BIOS if needed.

Recommendations

Update the BIOS to version 3.20 or later before using an AMD Ryzen 7 9800X3D to avoid memory-related issues. Keep chipset and system drivers up to date for optimal stability and performance; downloads and support information are available from the manufacturer's support resources.
