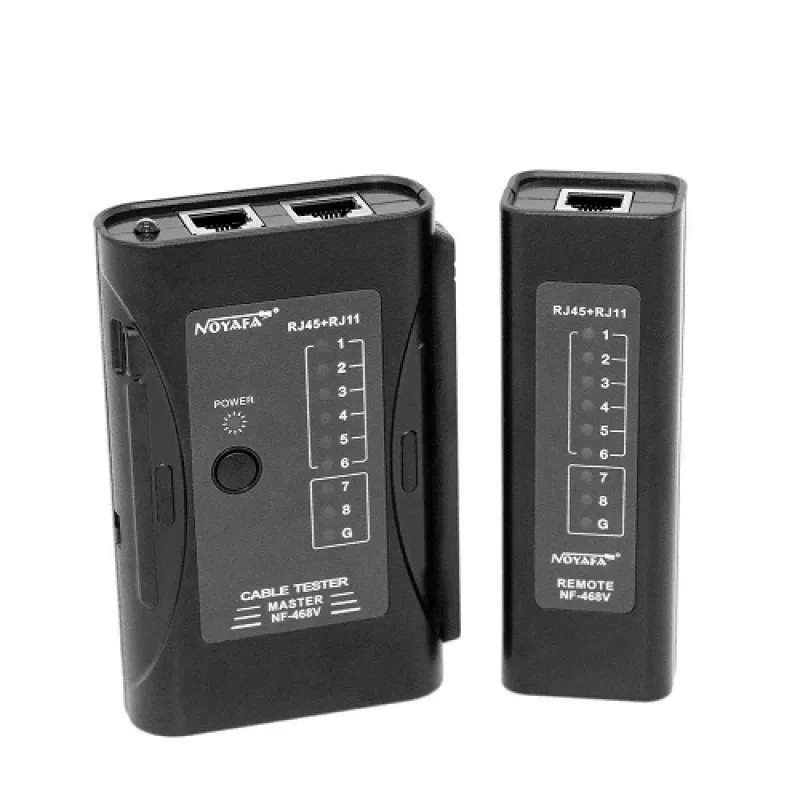

NOYAFA NF-468V Network & Telephone Cable Tester for RJ-45/RJ-11, UTP/STP, up to 100m

The NOYAFA NF-468V goes beyond a basic continuity checker. It automatically scans each wire pair and pinpoints open, short, crossed, reversed and split-pair faults, making it an essential companion for verifying structured cabling and telecom lines. Whether you are installing new network points or troubleshooting a sluggish connection, this tester gives you clear LED feedback and covers runs up to 100 metres.

Highlights

• Tests RJ-45 (8P8C) and RJ-11 (6P6C/6P4C/6P2C) terminated cables
• Works with UTP, STP and telephone wiring
• Automatic fast-scan mode with clear LED results
• Detects open, short, crossover, reverse and split pair errors
• Removable remote unit allows testing of installed patch panels and wall outlets
• Test length up to 100 m for most structured cabling jobs

In daily use

Plug one end of the cable into the main unit and the other into the remote unit. Switch on the automatic scan and follow the LED sequence: green means correct, red or missing lights indicate faults. The handy low-battery indicator and automatic power-off preserve your 9V battery, while the compact ABS housing fits easily in a tool bag.

Full specifications

• Brand: NOYAFA
• Model: NF-468V
• Product type: Network and telephone cable tester
• Supported connectors: RJ-45, RJ-11
• Cable types: UTP, STP, telephone cable
• Test types: open, short, crossover, reverse, split pair, shield
• Display: LED indicators
• Test mode: automatic scan
• Maximum cable length: 100 m
• Power: 1 x 9V PP3 battery (not included)
• Low battery indicator: yes
• Auto power off: yes
• Housing material: ABS
• Operating temperature: 0 °C to 50 °C

Final note

The NF-468V combines swift auto-scanning, a removable remote unit and simple LED diagnostics, making it a smart choice for anyone who works with network or telephone cabling.
