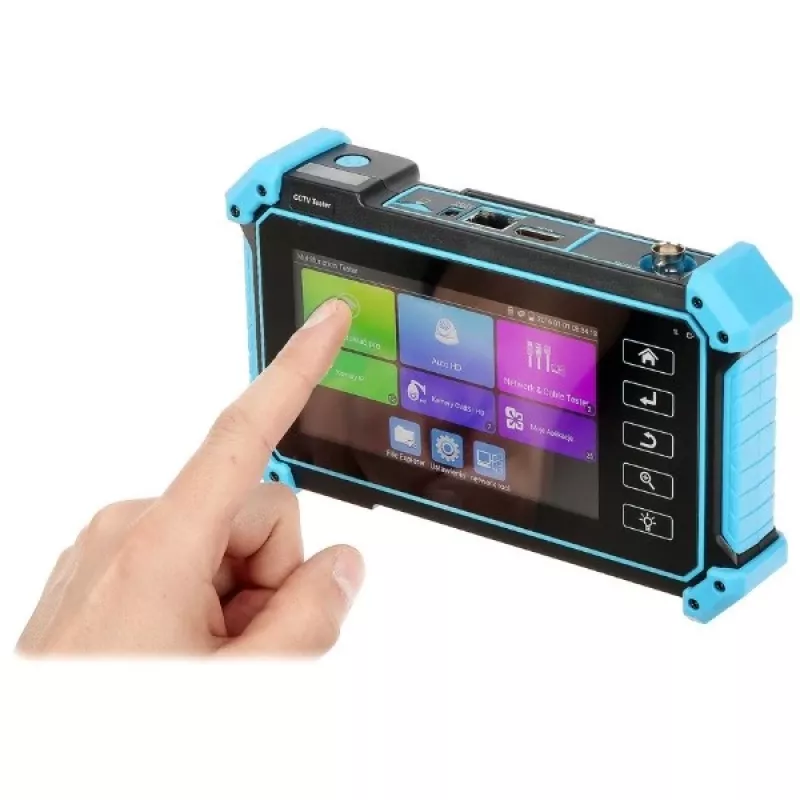

CCTV Tester CS-H6-50H Delta Tester with 5-inch IPS Touchscreen, PoE, PTZ, Cable Testing

The Delta CS-H6-50H is a professional multi-function CCTV tester designed for installers and technicians. It combines IP and analog camera testing, PoE output, cable diagnostics, and PTZ control in a portable handheld device with a 5-inch IPS touchscreen.

Advantages

All-in-one solution for CCTV system installation and maintenance. Supports up to 8MP analog HD (AHD/TVI/CVI) and 4K IP cameras. Built-in PoE (48V, 25.5W) powers cameras directly. Includes network tools (Ping, IP Scan, Wi-Fi Analyzer) and cable testing (UTP, TDR). Long-lasting 7800mAh battery ensures all-day field work.

Suitable for

• Security system installers
• IT network technicians
• Facility maintenance professionals
• Field service engineers

Key specifications

• Display: 5-inch IPS touchscreen, 1920x1080
• Video Input: IP (ONVIF), AHD, TVI, CVI, CVBS
• Analog HD Support: Up to 8MP
• IP Decoding: H.265/H.264, up to 4K/8MP
• PoE Output: 48V, 25.5W
• DC Output: 12V/3A, 5V/2A (USB)
• Battery: 7.6V 7800mAh Lithium-ion
• PTZ Control: RS485, 30+ protocols
• Cable Testing: UTP, RJ45 TDR (length, quality, breakpoint)
• Network Tools: Ping, IP Scan, Port Flash, DHCP, Wi-Fi Analyzer
• HDMI Output: up to 1080p
• Storage: 8GB internal, MicroSD slot
• Audio: 3.5mm input
• Digital Multimeter: Yes
• Flashlight: Built-in LED

Recommendations

Ideal for professionals who need a versatile tester for both analog and IP CCTV systems. The integrated PoE and cable testing features reduce the need for multiple tools.
