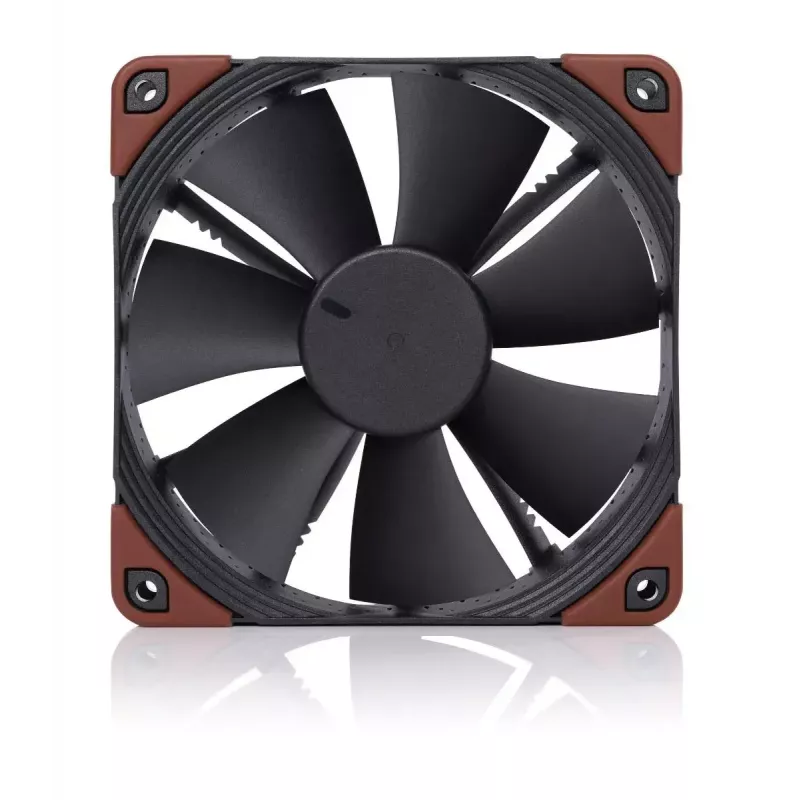

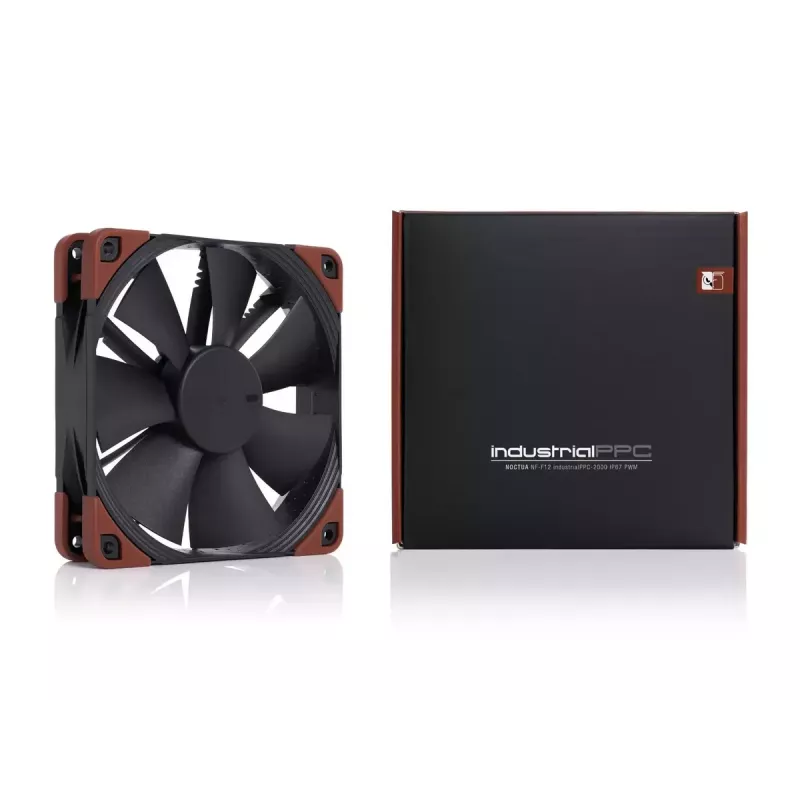

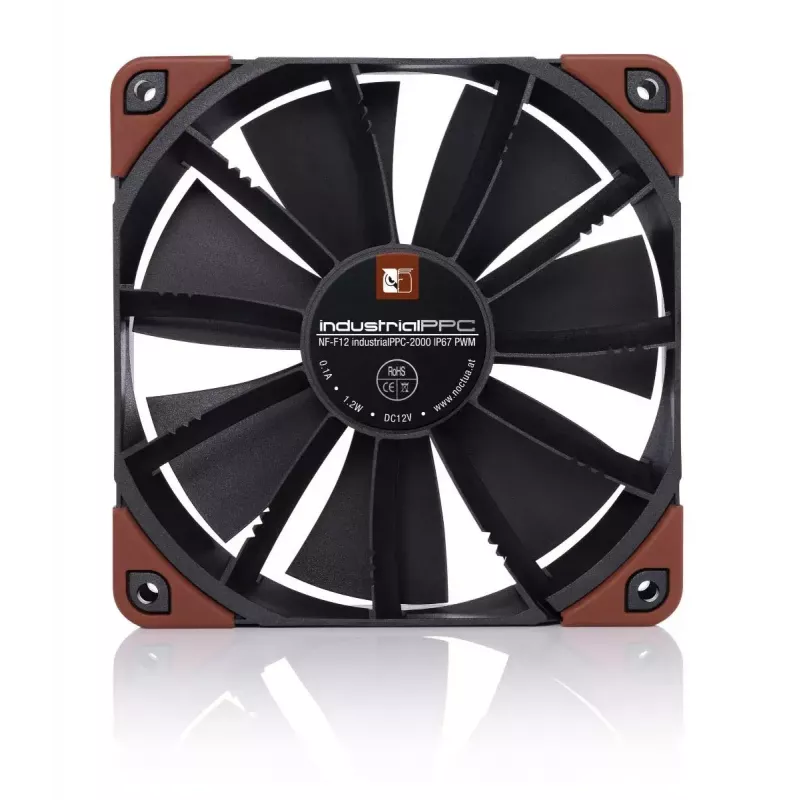

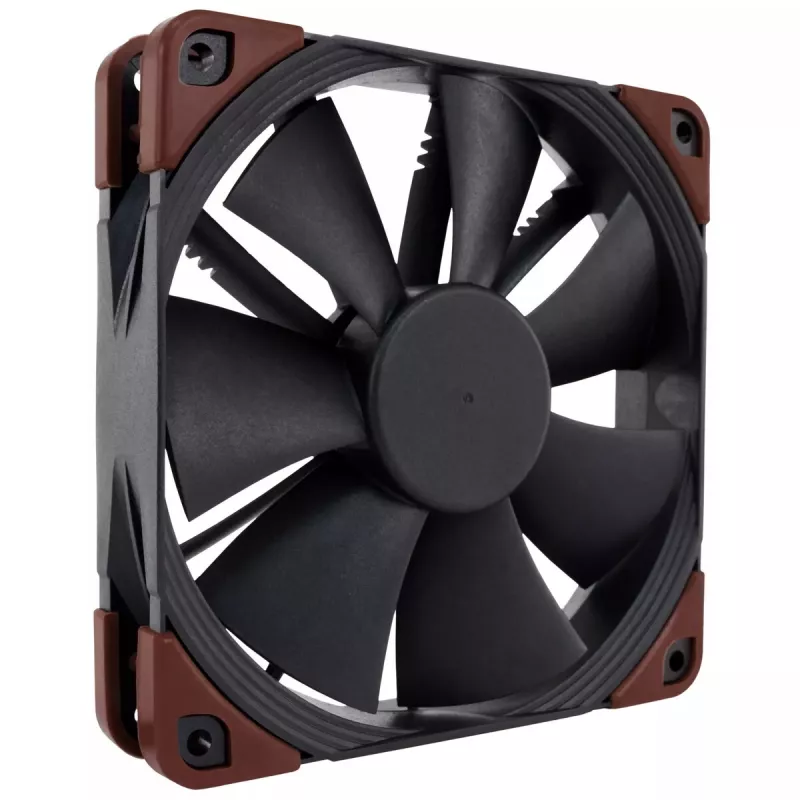

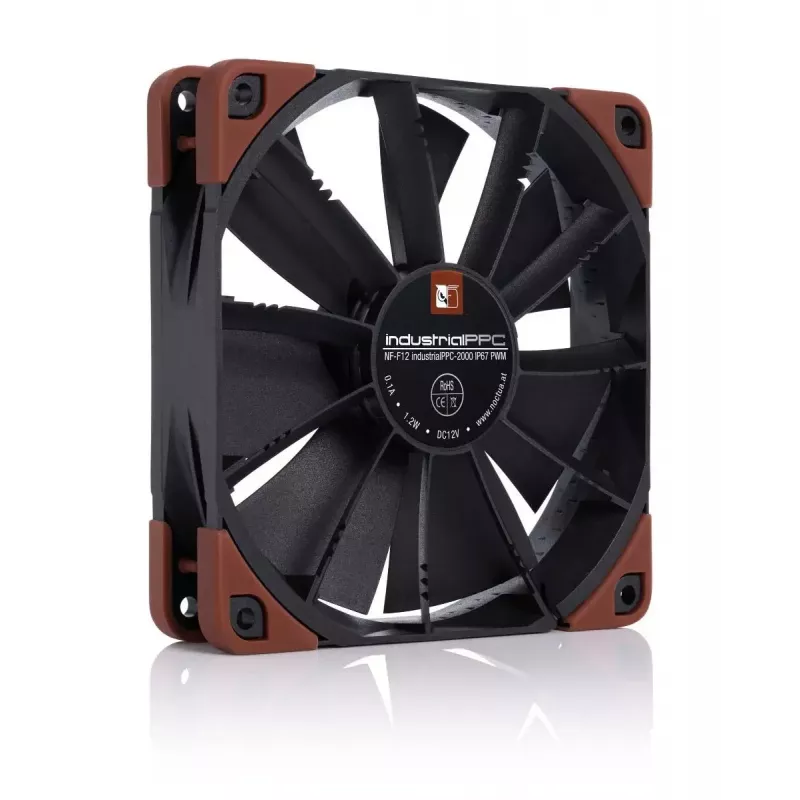

Fan Noctua NF-F12 INDUSTRIALPPC-2000 12 cm 450-2000 RPM Black Brown

The Noctua NF-F12 INDUSTRIALPPC-2000 is a rugged 120 mm high-speed cooling fan designed for industrial heavy-duty applications that require enhanced cooling performance and advanced ingress protection. Built on the award-winning NF-F12 aerodynamic design and equipped with a three-phase motor, this industrialPPC version delivers increased airflow and static pressure up to 2000 RPM while maintaining moderate noise and power consumption compared with similar high-speed models. Its fibre-glass reinforced polyamide impeller and frame, IP67-rated motor and PCB encapsulation, and SSO2 bearing technology provide long-term reliability with an MTTF of over 150,000 hours and a 6-year manufacturer’s warranty.

Advantages

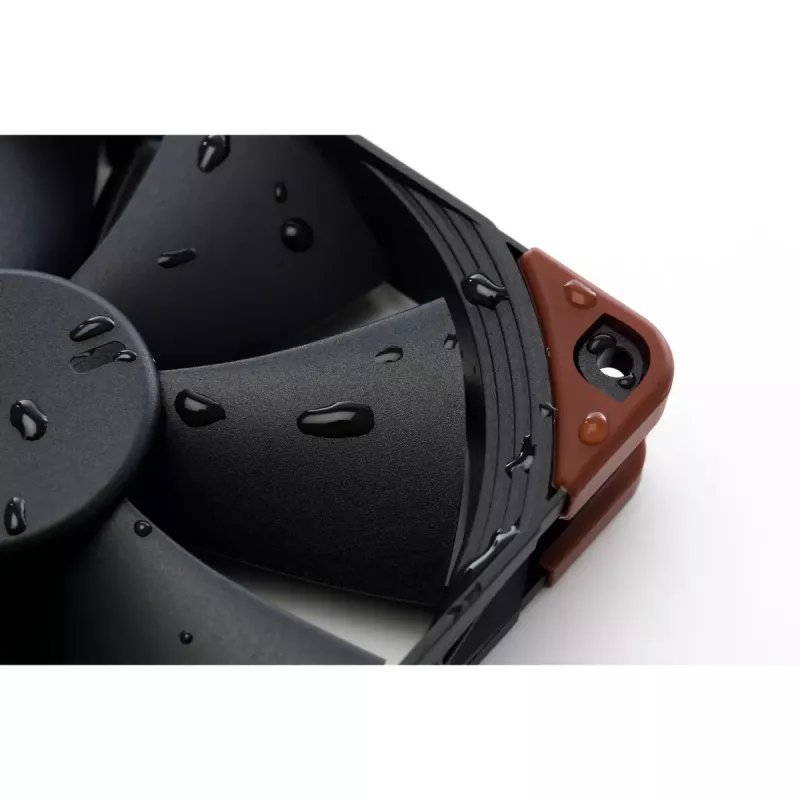

The NF-F12 INDUSTRIALPPC-2000 offers superior airflow and pressure capacity for demanding cooling tasks thanks to its focused-flow frame, heptaperf impeller and three-phase motor design. Construction from fibre-glass reinforced polyamide increases mechanical robustness and thermal resistance up to 140°C, while the IP67 protection ensures complete dust tightness and waterproofing to 1 m depth. Noise-optimising features such as varying angular distance stator vanes, vortex-control notches, stepped inlet design and inner surface microstructures help spread and reduce tonal noise. Additional benefits include integrated anti-vibration pads, a CNC-milled brass bearing shell and a custom NE-FD2 PWM IC with Smooth Commutation Drive for reduced switching noise.

Suitable for

• Industrial enclosures and control cabinets requiring robust cooling
• Heat sinks and radiators in industrial or outdoor equipment
• Applications with dust, moisture or occasional water exposure (IP67)
• Systems that require continuous operation and long service life
• Use cases demanding higher static pressure and airflow at 2000 RPM

Key specifications

• Fan diameter: 120 mm
• Speed range: 450–2000 RPM
• Airflow: 121.8 m³/h (manufacturer specification)
• Max. static pressure: 3.94 mmH2O (manufacturer specification)
• Bearing: SSO2 (self-stabilizing oil-pressure bearing)
• Construction: Fibre-glass reinforced polyamide impeller and frame
• Ingress protection: IP67 (motor and PCB cast in heat-conductive resin)
• Operating temperature resistance: up to 140°C (material limit)
• Connector / control: PWM (custom NE-FD2 IC with SCD)
• MTTF / Warranty: >150,000 hours MTTF; 6-year manufacturer’s warranty

How to use

Install the NF-F12 INDUSTRIALPPC-2000 in the required orientation using standard mounting holes and screws; the integrated anti-vibration pads maintain compatibility with typical screw mounting. Connect the fan to a compatible PWM controller or power source, respecting the specified voltage and connector type for your model. Use PWM to control speed automatically; the NE-FD2 IC with Smooth Commutation Drive reduces switching noise at lower speeds. For industrial setups, follow your system’s wiring, grounding and protection standards and ensure appropriate cable routing and fastening to avoid strain on the connector.

Recommendations

Use this industrialPPC model where higher speeds, increased airflow and IP67 ingress protection are required. For low-noise PC or consumer applications where quieter operation is a priority, consider Noctua’s retail lines (e.g. chromax for black fans) with lower top speeds. For custom requirements (voltage variants, connectors, cable lengths, certifications), contact the manufacturer or authorised reseller to request industrial customisation options.
