Case fan Noctua NF-A9X14 PWM 92 mm, 12 V, 1700–2200 RPM, 50.5 m³/h, 0.92–1.64 mmH2O, SSO2 bearing

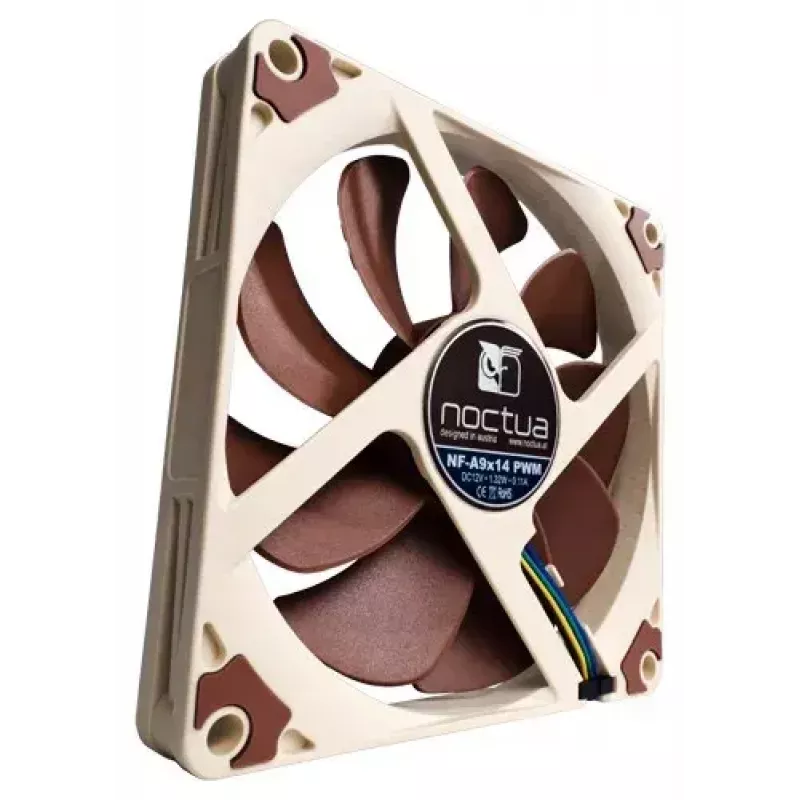

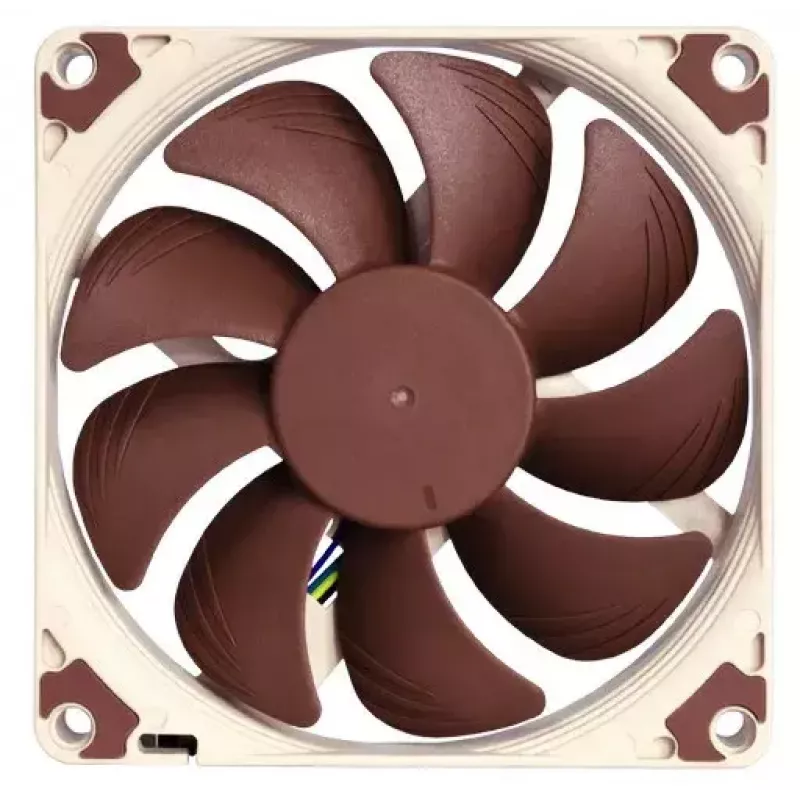

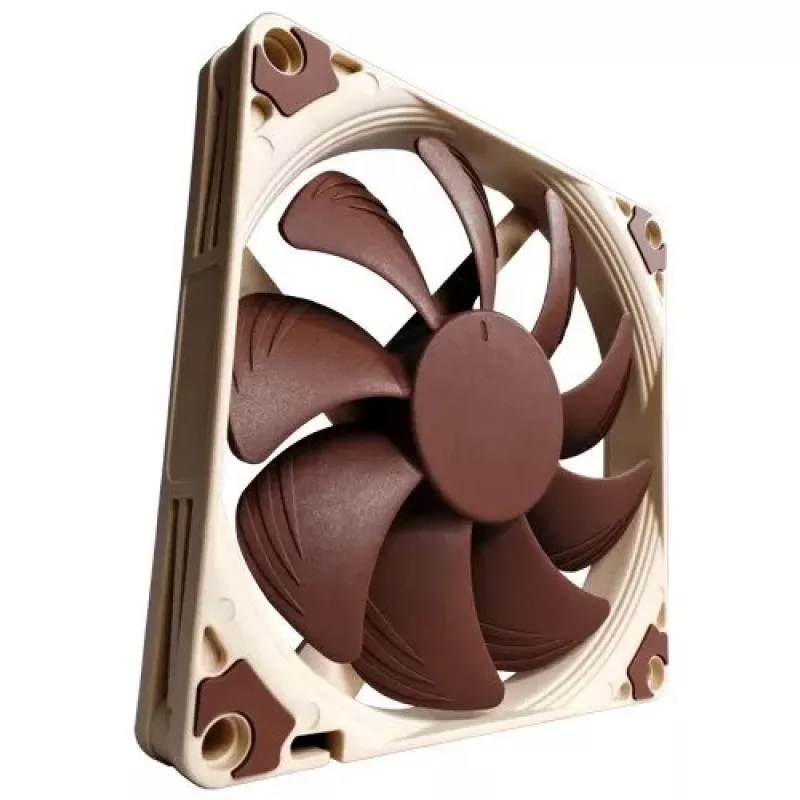

The Noctua NF-A9x14 PWM is a 92×14 mm low-profile cooling fan designed for space-constrained PC builds and low-profile CPU coolers. It features Noctua’s AAO frame, Flow Acceleration Channels and a custom PWM IC with Smooth Commutation Drive for automatic, quiet speed control. The fan uses SSO2 bearings for long-term stability, comes with modular sleeved cabling, a Low-Noise Adaptor and is intended for 12 V systems.

Advantages

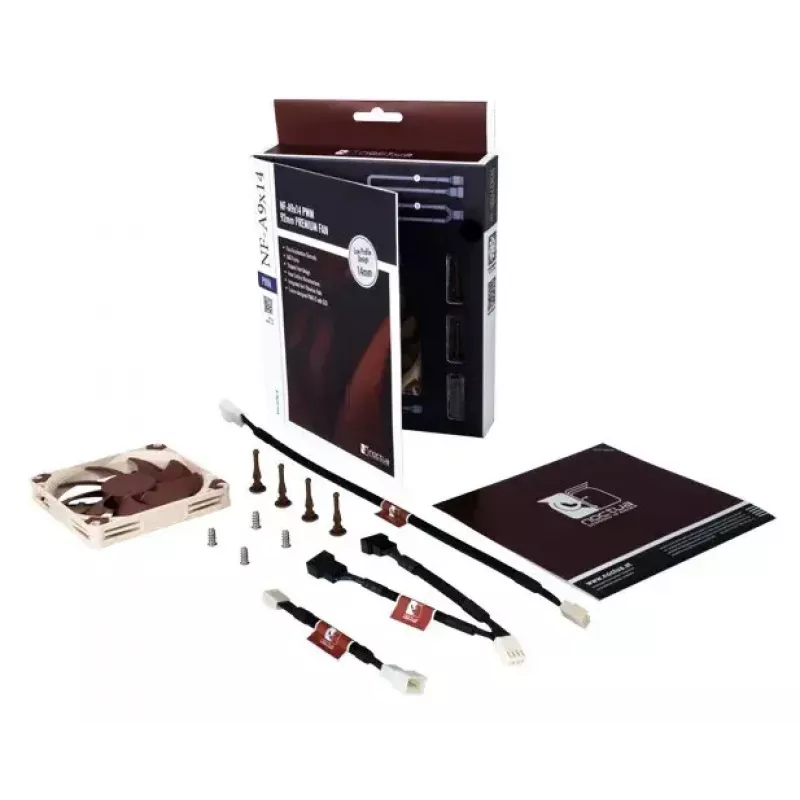

The slim 14 mm profile allows installation in tight spaces where standard 92×25 mm fans would not fit, while Flow Acceleration Channels and Inner Surface Microstructures improve airflow efficiency and reduce vortex and blade-passing noise. The AAO frame integrates anti-vibration pads and a stepped inlet design to lower intake noise and enhance flow attachment. The SSO2 bearing and Noctua’s NE-FD1 PWM IC with SCD ensure smooth operation, reduced PWM switching noise and reliable long-term performance. Included accessories such as a Low-Noise Adaptor, extension cable, sleeved cabling and a Y-cable increase installation flexibility.

Suitable for

• Low-profile CPU coolers in HTPCs and compact desktops
• Small form-factor cases and slim server enclosures
• Applications requiring slim 92 mm fans with PWM control

Key specifications

• Size: 92 × 92 × 14 mm
• Rated voltage: 12 V
• Speed range: 2200 rpm (max) / 1700 rpm (with L.N.A.) / 1200 rpm (fixed with L.N.A.)
• Airflow: 50.5 m³/h
• Static pressure: 0.92–1.64 mmH2O (typical values)
• Bearing: SSO2
• Connector: 4-pin PWM
• Colour: brown

How to use

Mount the NF-A9x14 in the required orientation using standard fan screws or compatible clips, taking advantage of the integrated anti-vibration pads to minimise transmitted vibrations. Connect the 4-pin PWM connector to a compatible motherboard fan header for automatic speed control. Use the supplied 30 cm extension if additional reach is needed and the Y-cable to run a second fan from the same header. To reduce maximum speed and noise, attach the included Low-Noise Adaptor (L.N.A.).

Recommendations

For optimal results in compact systems, place the fan where airflow paths are least obstructed and configure PWM curves in BIOS or fan-control software to balance cooling and noise. Regularly check mounting and cable routing to maintain vibration isolation and airflow efficiency.
