Case fan Noctua NF-A14x25r G2 PWM 140 mm, 1250–1500 RPM, 155.6 m³/h, 19.7–24.8 dB, 12 V, 4-pin

The Noctua NF-A14x25r G2 PWM is a 140 mm round-frame cooling fan engineered for efficient and quiet operation in PC cases, heatsinks and radiators. Made with Sterrox® LCP and featuring an ultra-tight 0.7 mm tip clearance, a Progressive-Bend impeller with winglets, Flow Acceleration Channels and a Centrifugal Turbulator hub, it delivers improved performance against back pressure while maintaining low noise levels. The PWM model supports automatic speed control and includes a Low-Noise Adaptor to limit top speed from 1500 to 1250 RPM.

Advantages

The NF-A14x25r G2 PWM combines advanced aerodynamic features and high-quality materials to achieve a favourable pressure-to-airflow curve suitable for both static-pressure and airflow-demanding applications. Its etaPERF™ motor with Smooth Commutation Drive 2 and SupraTorque™ capability provides efficient, smooth operation and maintains target RPM under back pressure. Additional strengths include SSO2 bearing technology, a CNC-milled brass bearing shell for stability, integrated anti-vibration pads, extensive cabling options and multiple electrical protections, all backed by a 6-year manufacturer’s warranty.

Suitable for

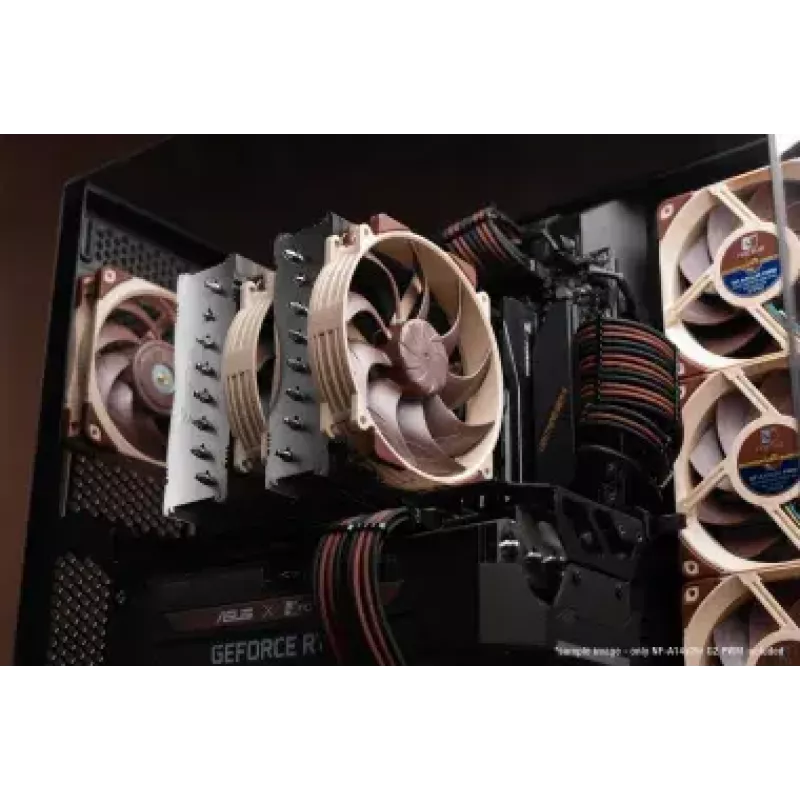

• 140 mm CPU heatsinks (including upgrades for NH-D15(S) and NH-U14S series)
• Radiators in liquid-cooling setups

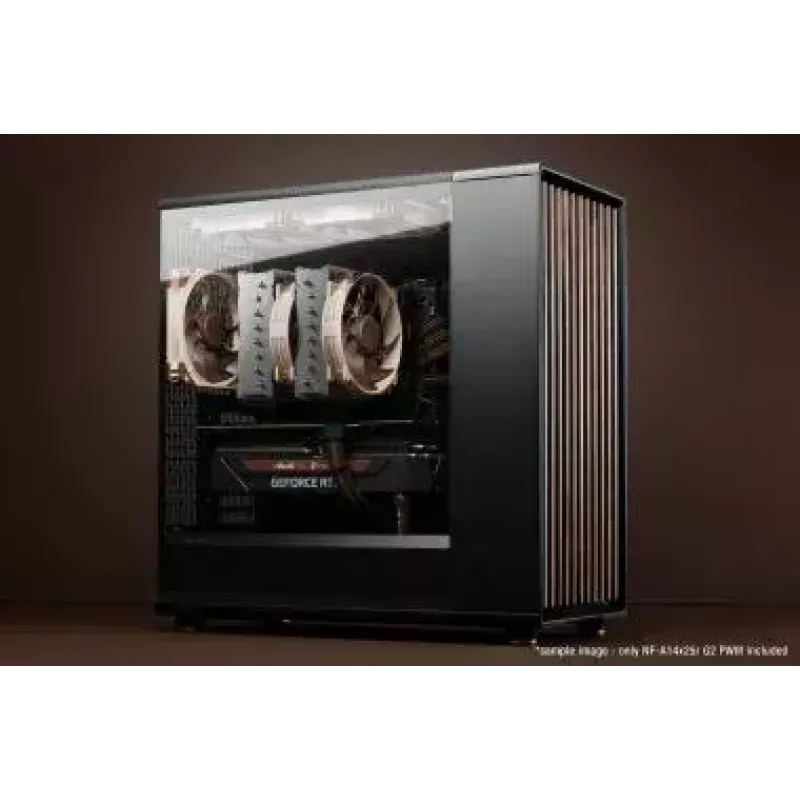

• Case cooling in mid-tower and full-tower systems
• Push/pull fan configurations (Sx2-PP set recommended)

Key specifications

• Size: 140 mm
• Speed range: 300–1500 RPM (PWM); L.N.A. caps max to 1250 RPM
• Airflow: up to 155.6 m³/h (manufacturer data)
• Noise level: 19.7–24.8 dB (typical operating range)
• Bearing: SSO2 (self-stabilising oil-pressure bearing)
• Impeller material: Sterrox® liquid-crystal polymer (LCP)
• Tip clearance: 0.7 mm

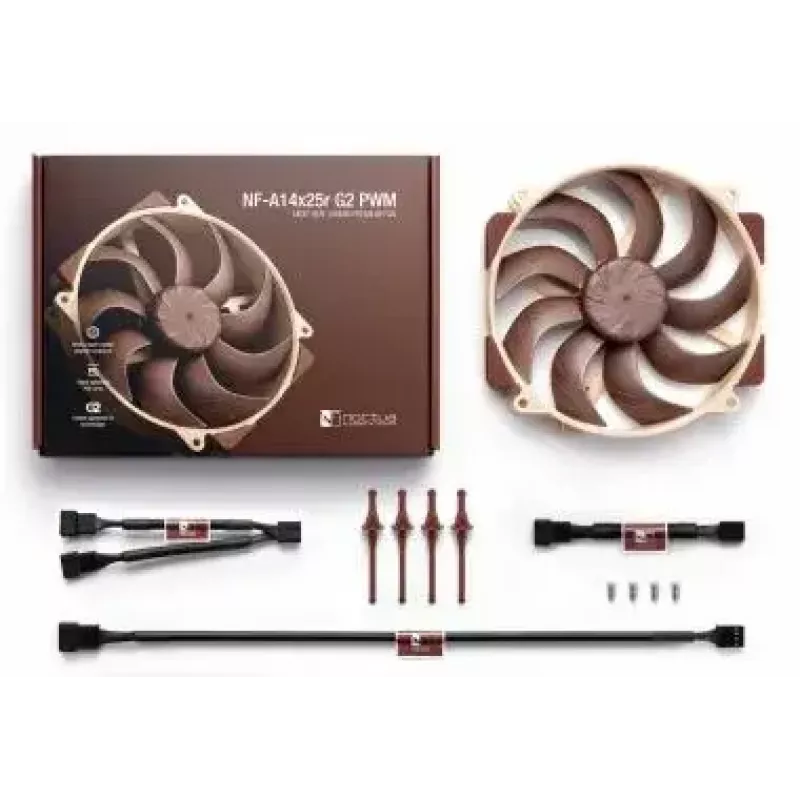

• Connector: 4-pin PWM; includes 20 cm cable, 30 cm extension and 4-pin Y-cable
• Warranty: 6 years
• Certifications: CE, TÜV, UKCA, UL (meets EN 62368-1, EN 55035, EN 55032, UL-507)

How to use

Install the fan using standard 140 mm mounting holes or compatible adapters. Connect the 4-pin PWM cable to a motherboard or fan controller to allow automatic speed regulation based on temperature, or use manual controllers as needed. For push/pull configurations on heatsinks or radiators, use the recommended Sx2-PP mounting set to secure a second fan. If lower maximum noise is required, attach the supplied Low-Noise Adaptor to cap the top speed at 1250 RPM.

Recommendations

Use PWM control to benefit from the wide speed range (300–1500 RPM) and enable semi-passive setups where the fan can stop at 0% PWM for silent idle operation when system temperatures allow.
