Network switch Cudy FS1006P Fast Ethernet 6-port (4 PoE, 1 PoE+) 10/100 Mbps, 1.2 Gbit/s bandwidth, metal housing, rack/wall mount

60W Power budget & 30W Maximum One Port PoE switch provides up to 60W total Power over Ethernet and supports a single port delivering up to 30W. The device auto-detects connected equipment and complies with IEEE 802.3af/at standards, preventing damage to non-standard PoE devices or to regular PoE switches.

Advantages

Supports multiple installation options including rack, wall and desktop mounting. Fanless metal housing ensures silent operation, reliable heat dissipation and long service life. Plug-and-play operation requires no configuration, and the switch uses standard PoE pin assignment (Mode A: 1/2(+), 3/6(-)).

Key specifications

• Total PoE budget: 60W
• Maximum PoE per port: 30W
• PoE standards: IEEE 802.3af/at
• Auto-detection: supports detection of powered devices and protects non-standard devices
• Installation: rack mount, wall mount, desktop
• Design: fanless, metal case
• Pin assignment: Mode A (1/2(+), 3/6(-))

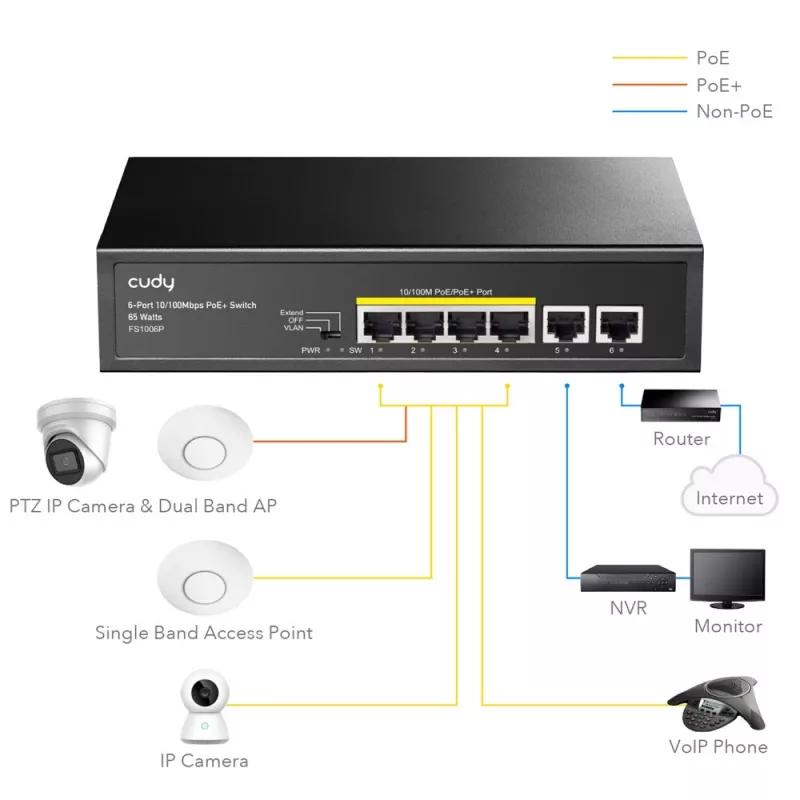

• Typical applications: IP cameras, VoIP phones, Wi‑Fi access points

How to use

Place and secure the unit using the preferred mounting method (rack, wall or desktop). Connect the switch to power and to your network uplink. Plug PoE-enabled devices (IP cameras, VoIP phones, Wi‑Fi APs) into the switch ports; the unit will automatically detect powered devices and supply appropriate power up to the per‑port and total budget limits.

Recommendations

Verify combined power requirements of connected PoE devices to ensure they do not exceed the 60W total budget, and avoid connecting more than one device drawing 30W or higher to a single port. Use appropriate cabling and follow local installation rules for mounting and grounding.
