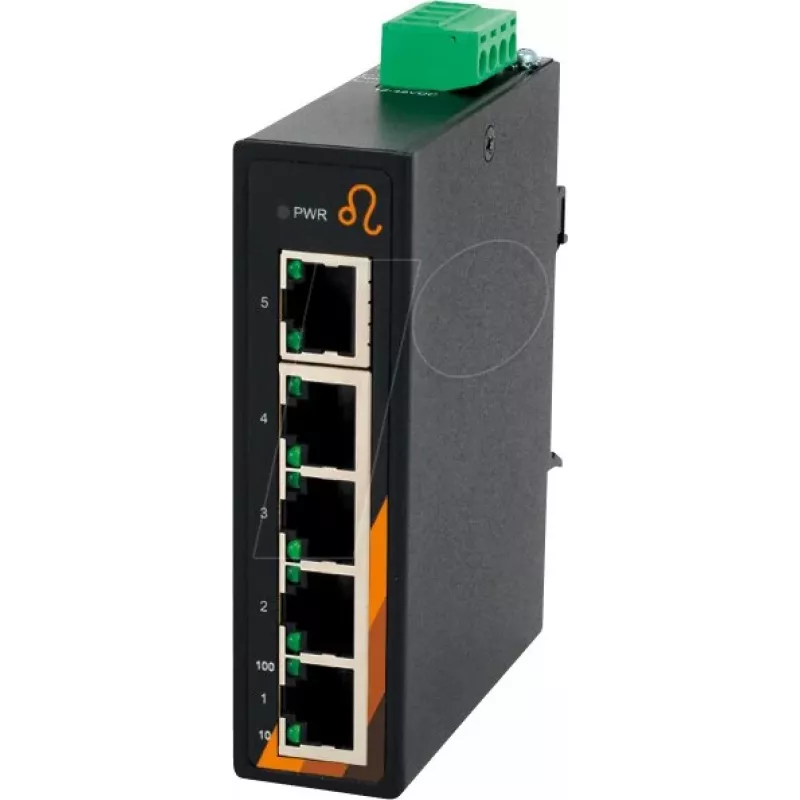

EXSYS EX-6200 5-Port Industrial Ethernet Switch, Unmanaged, 10/100Base-TX, DIN Rail, -40 to 75°C

In demanding industrial environments, standard office switches fail quickly—this 5-port unmanaged Ethernet switch is built to endure extreme temperatures from -40°C to 75°C, vibration, and electrical noise. Housed in a rugged IP30 metal enclosure, it offers reliable store-and-forward switching for automation, transportation, and factory floor networks where downtime is not an option.

Highlights

• Five 10/100Base-TX RJ45 ports for Fast Ethernet connectivity
• Redundant 12-48V DC power inputs with reverse polarity protection
• Wide operating temperature range: -40°C to 75°C
• DIN rail and wall mount options for flexible installation
• 6KV surge and ESD protection for harsh electrical environments

In daily use

The EX-6200 operates silently without fans, reducing maintenance and points of failure. Its compact metal housing dissipates heat efficiently, and the LED indicators provide instant status of power and link/activity. With a switching capacity of 1 Gbps and a 1K MAC address table, it handles typical industrial traffic with ease, while the store-and-forward architecture ensures error-free packet delivery.

Full specifications

• Ports: 5 x 10/100Base-TX RJ45
• Standards: IEEE 802.3, 802.3u, 802.3x
• Switch type: Unmanaged
• Switching capacity: 1 Gbps
• MAC address table: 1K entries
• Power input: 12-48V DC, redundant
• Power consumption: max 2.4 W
• Operating temperature: -40°C to 75°C
• Storage temperature: -40°C to 85°C
• Humidity: 5% to 95% RH non-condensing
• Housing: Metal, IP30 rated
• Mounting: DIN rail, wall mount
• ESD protection: 6KV DC
• Surge protection: 6KV DC
• MTBF: > 500,000 hours
• LED indicators: Power, Link/Activity

Final note

For integrators and system builders, the EX-6200 provides a cost-effective, robust networking solution that meets the reliability demands of industrial applications without unnecessary complexity.
