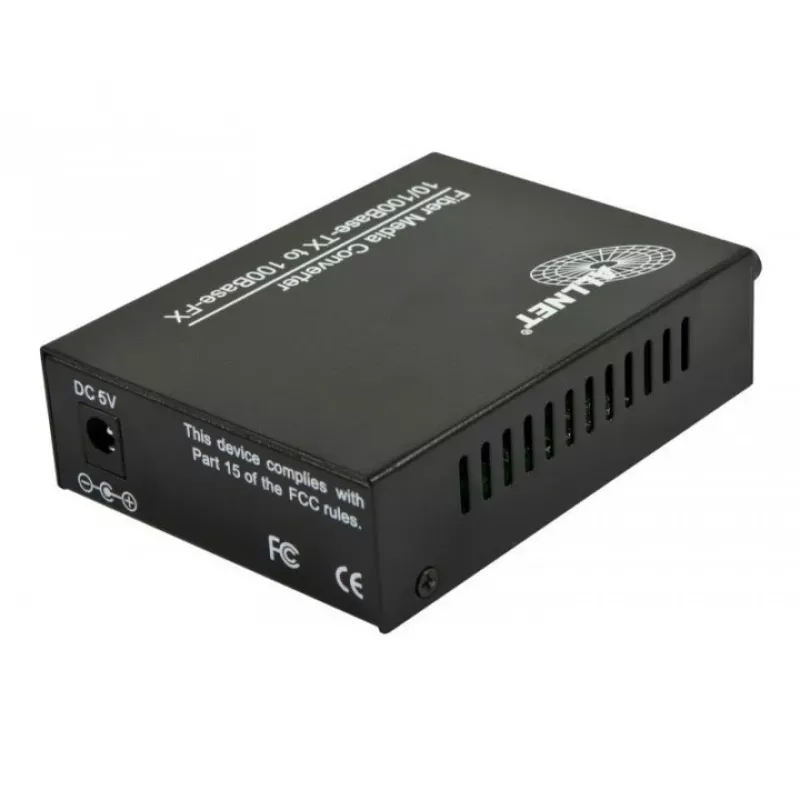

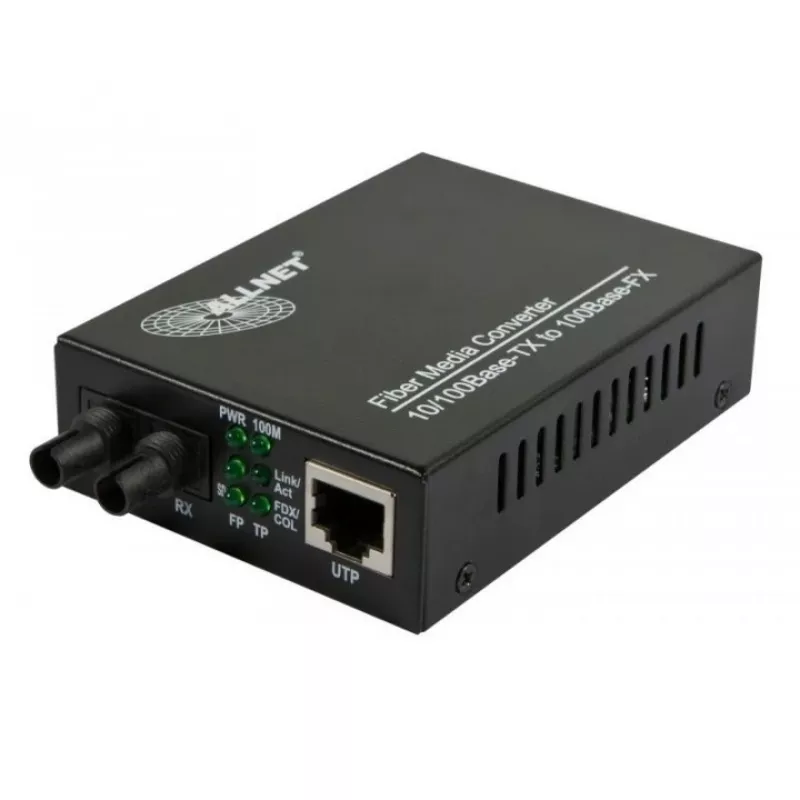

Network Media Converter ALLNET ALL-MC107-ST-MM

The ALLNET ALL-MC107-ST-MM is a compact multi-mode network media converter designed to connect a single RJ-45 Fast Ethernet port to an SC fiber optic link. Supporting IEEE 802.3 standards and data rates of 10/100 Mbit/s with a maximum throughput of 100 Mbit/s, this converter extends network segments up to 1000 m over multimode fiber. The unit is housed in a black enclosure, features LED indicators for link, power and speed, and has a low power consumption of 2.5 W with CE certification.

Advantages

The converter provides a simple and reliable way to bridge copper and multimode fiber cabling without requiring configuration. Its compact form factor and low 2.5 W power draw make it suitable for rack, wall or desktop placement where space and power are limited. Visible LEDs for link, power and speed enable quick status checks and basic troubleshooting. With support for standard Fast Ethernet speeds, the device maintains compatibility with existing 10/100 Mbit/s network equipment.

Suitable for

• Extending Ethernet networks over multimode fiber up to 1000 m
• Connecting a single 10/100 Mbit/s device to a fiber backbone
• Deployments requiring a compact, low-power media conversion solution
• Environments where simple plug-and-play operation and basic status LEDs are preferred

Key specifications

• Maximum data transfer rate: 100 Mbit/s
• Ethernet LAN ports (RJ-45): 1
• Fiber ports quantity: 1
• Supported Ethernet data rates: 10, 100 Mbit/s
• Ethernet interface type: Fast Ethernet
• Fiber connector type: SC (multimode)
• Maximum transfer distance over multimode fiber: 1000 m
• Product colour: Black
• Power consumption: 2.5 W
• Weight: 0.23 kg

How to use

Power the ALLNET ALL-MC107-ST-MM using an appropriate adapter or power source, then connect the Ethernet device to the RJ-45 port and the multimode fiber cable to the SC connector. The LEDs indicate power and link status; when link and speed LEDs show connectivity, normal operation is established. No software configuration is required for standard media conversion; the device operates as a plug-and-play link between copper and fiber segments. For fiber runs approaching the maximum distance, verify cable type and quality to maintain signal integrity.

Recommendations

Install the converter in a ventilated location away from heat sources and excessive moisture. Use certified multimode fiber cabling and clean SC connectors before insertion to reduce attenuation. Ensure connected network equipment matches the device's 10/100 Mbit/s capabilities to avoid mismatches. For permanent installations, secure cabling to prevent strain on the SC connector and periodically inspect LED status to detect link issues early.
