Network Card Veracity VAD-PP Ethernet 100 Mbit/s

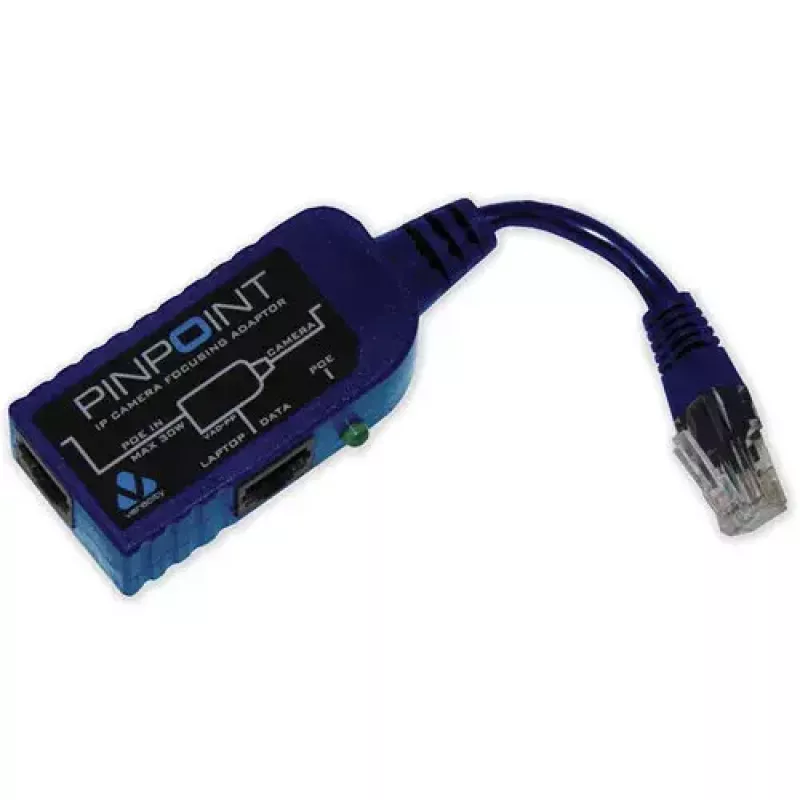

The Veracity Pinpoint IP Camera Setup Adaptor allows viewing and configuring IP PoE cameras from a laptop or other portable device without removing the camera from the network or interrupting PoE power. The compact adaptor is designed to simplify and speed up on-site camera setup by enabling a single installer to precisely adjust focus and settings, avoiding the need for a partner in the control room and reducing installation time.

Advantages

The adaptor supports IEEE 802.3af PoE, PoE Plus and non-standard PoE types up to 30 W, and works with 10BASE-T and 100BASE-TX Ethernet. Its small dimensions (65 x 32 x 20 mm) make it easy to carry and connect on-site. An integrated LED indicates the presence of PoE power, and the device uses a standard Cat5E patch cable for connection, enabling accurate camera focusing and configuration while leaving the camera powered and networked.

Suitable for

• Field installation and configuration of IP PoE cameras
• Single-person camera alignment and focus adjustments
• Testing and troubleshooting Ethernet-connected PoE cameras
• Temporary on-site camera setup when a laptop or portable device is used for configuration

Key specifications

• PoE support: IEEE 802.3af, PoE Plus and non-standard PoE types up to 30 W
• Ethernet: 10BASE-T, 100BASE-TX
• Connector: RJ-45
• Dimensions: 65 x 32 x 20 mm
• Indicator: PoE LED

How to use

Connect the adaptor between the PoE source and the IP camera using a standard Cat5E patch cable, then attach a laptop or other portable device to the adaptor to access the camera’s web interface or configuration software. Adjust focus and image settings directly from the portable device while the camera remains powered and on the network. After configuration, disconnect the adaptor and return the camera to its permanent network connection.

Recommendations

Use the adaptor with a Cat5E or better patch cable and ensure the PoE source provides up to 30 W if non-standard PoE is required. Verify LED indication to confirm PoE presence before attempting camera configuration.
