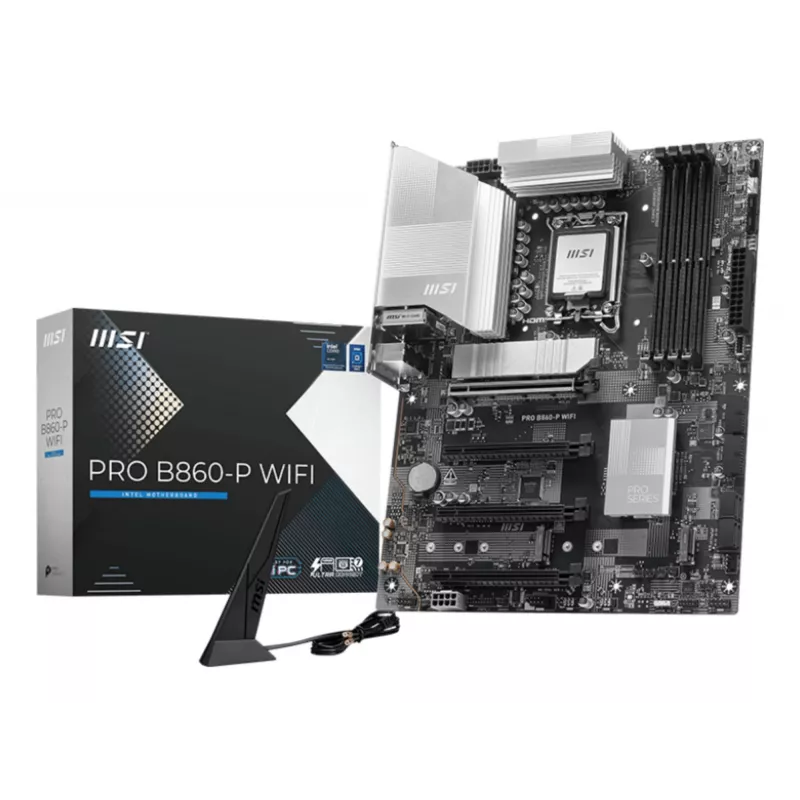

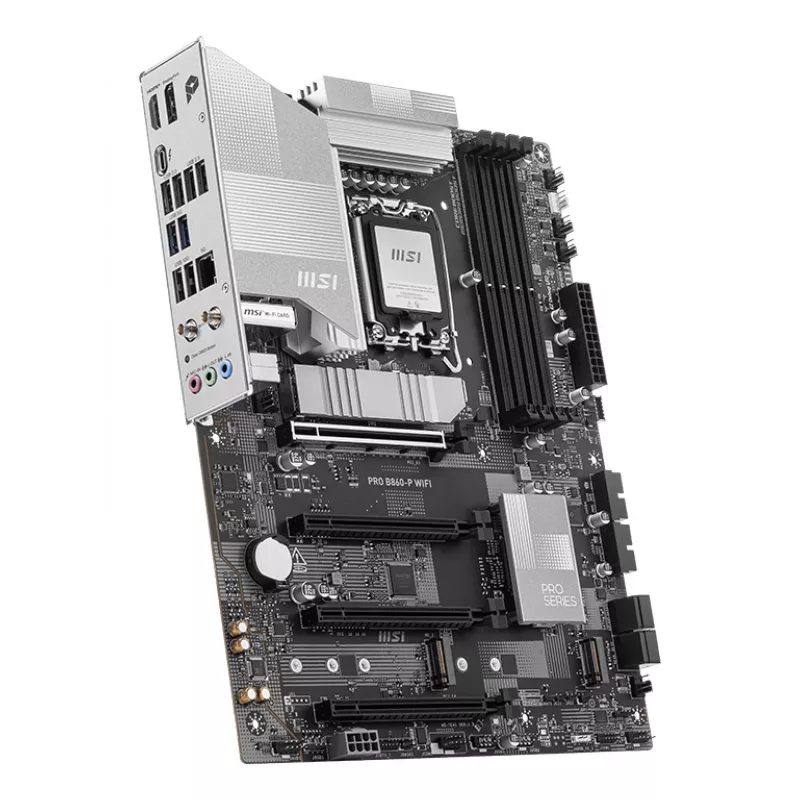

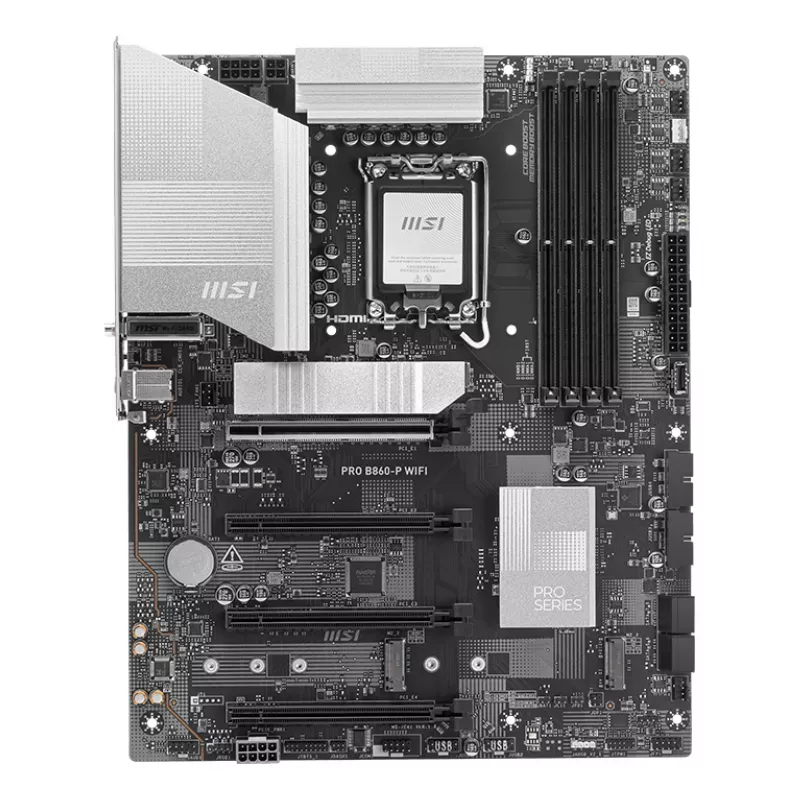

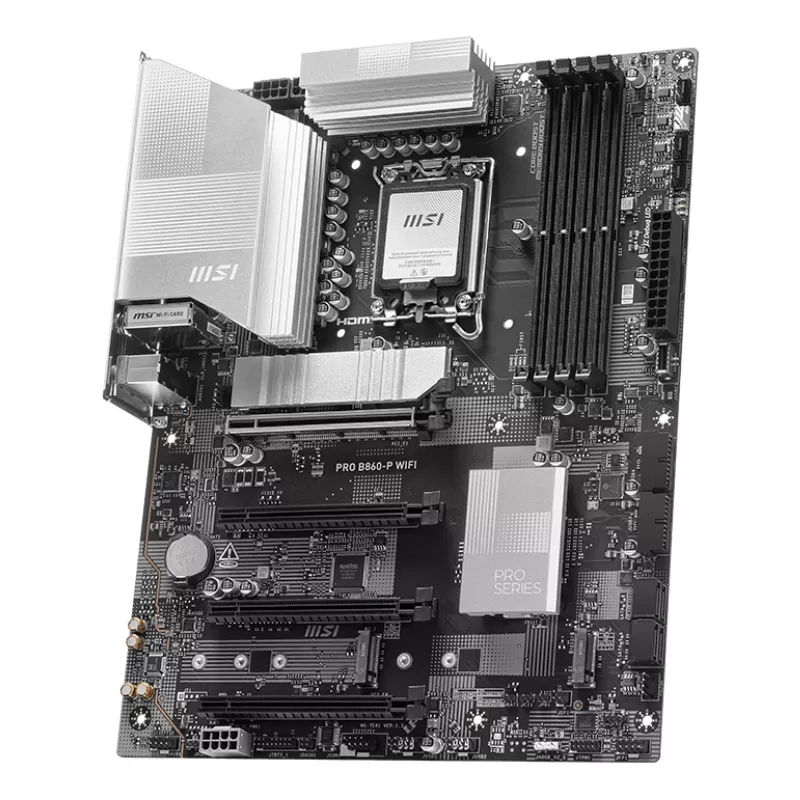

MSI PRO B860-P WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX

MSI PRO B860-P WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX
MSI PRO B860-P WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX
MSI PRO B860-P WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX
MSI PRO B860-P WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX
MSI PRO B860-P WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX
36 mo.
MSI PRO B860-P WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX
MSI PRO B860-P WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX
MSI PRO B860-P WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX
MSI PRO B860-P WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX
MSI PRO B860-P WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX
R3,666
PRO B860-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the In... Read More
Stock 3 Code 105799 Brand MSI Model PRO B860-P WIFI Warranty 3 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
PRO B860-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.

MSI PRO B860-P WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

Key Highlights
  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
  • Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2

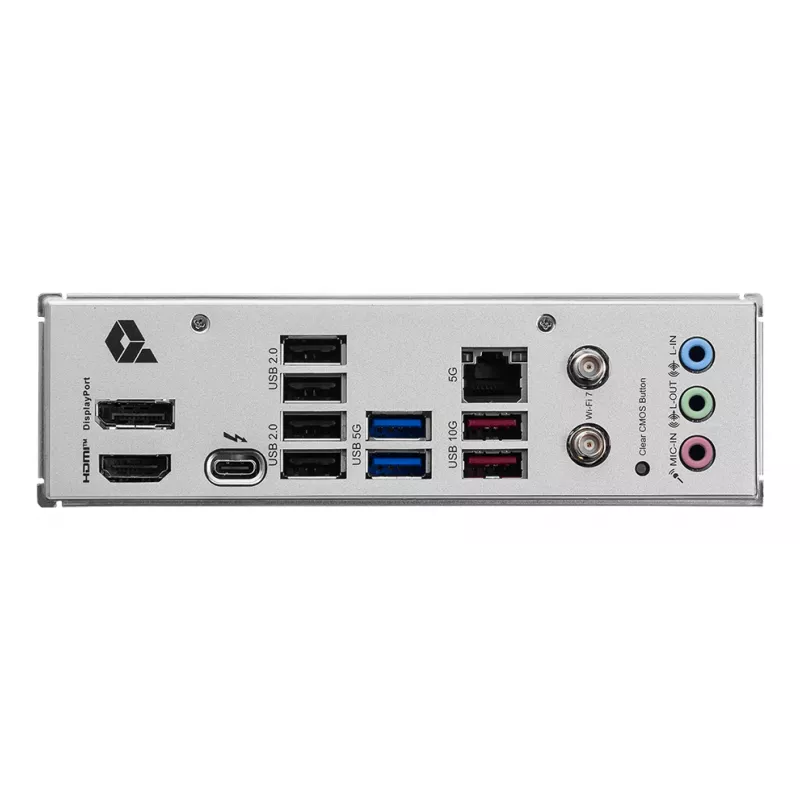

  • Ultra Connect: Thunderbolt™ 4 port, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
  • PC ATX Intel B860 Realtek ALC897 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, Micro SATA III RAID support Number of storage drives supported: 7
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 6.5
  • 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Specifications
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
2280
ACPI version
6.5
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.4
Compatible processor series
Intel Core Ultra (Series 2)
Component for
PC
CPU fan connector
Yes
Depth
304.8 mm
DVI-D ports quantity
0
ECC сompatibility
Non-ECC
Ethernet interface type
5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
Maximum internal memory
256 GB
Maximum internal memory supported by processor
256 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Motherboard chipset
Intel B860
Motherboard chipset family
AMD
Motherboard form factor
ATX
Number of CPU fan connectors
1
Number of HDDs supported
4
Number of M.2 (M) slots
3
Number of memory slots
4
Number of RGB LED pin headers
3
Number of SATA III connectors
4
Number of storage drives supported
7
Number of water pump connectors
1
PCI Express x16 (Gen 4.x) slots
3
PCI Express x16 (Gen 5.x) slots
1
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Product colour
Black
RAID levels
0, 1, 5, 10
RAID support
Yes
RGB LED pin header
Yes
Supported memory clock speed (max)
8800 MHz
Supported memory clock speeds
4800,6400,8800 MHz
Supported memory types
DDR5-SDRAM
Supported processor sockets
LGA 1851
Supported storage drive interfaces
M.2, Micro SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
3.7
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Total number of SATA connectors
4
USB 2.0 connectors
4
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
VGA (D-Sub) ports quantity
0
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Width
243.8 mm
Windows operating systems supported
Windows 11 x64
