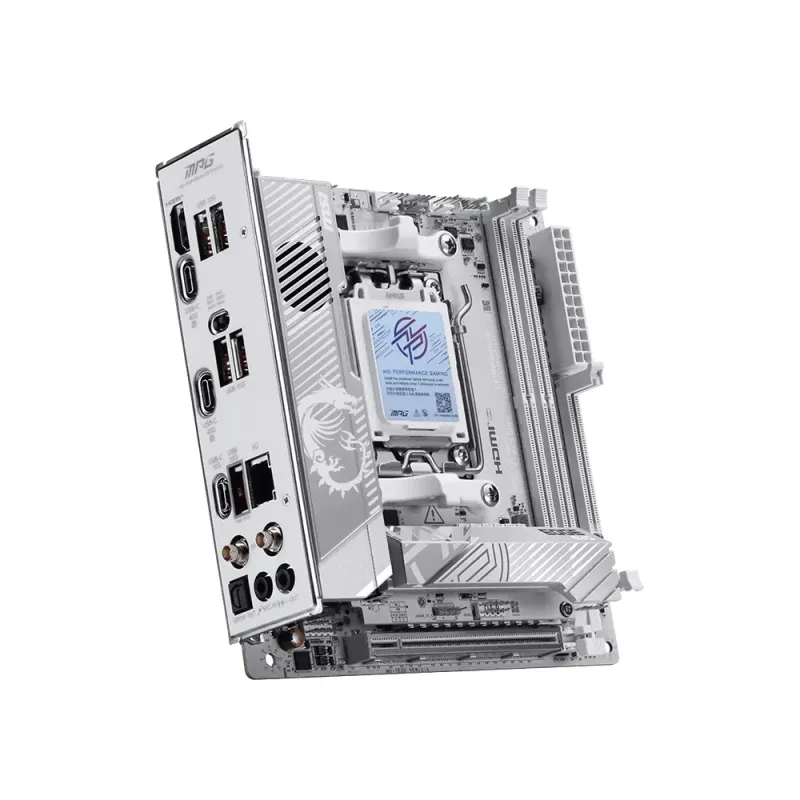

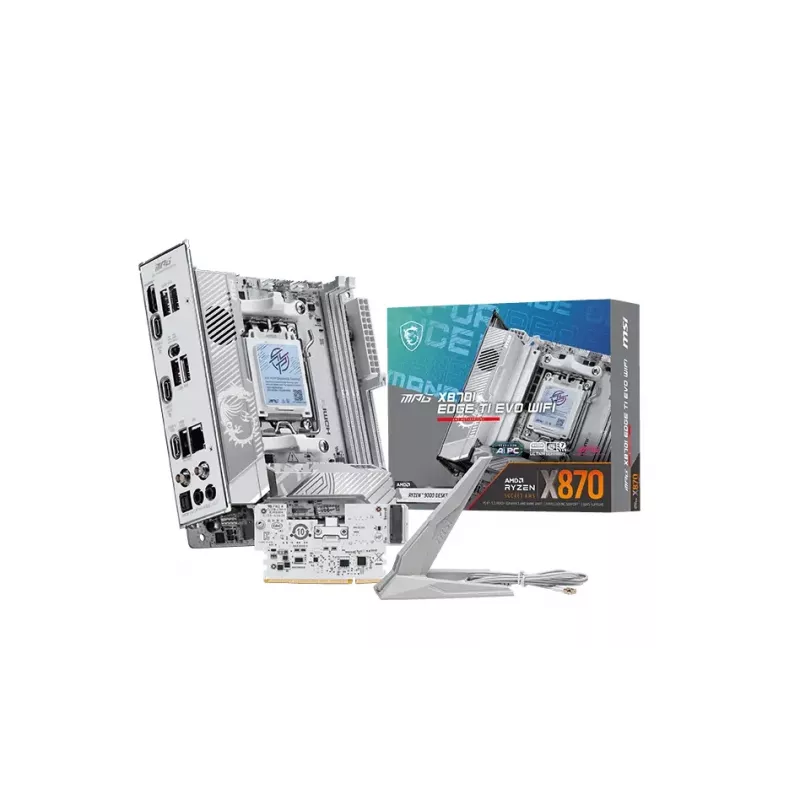

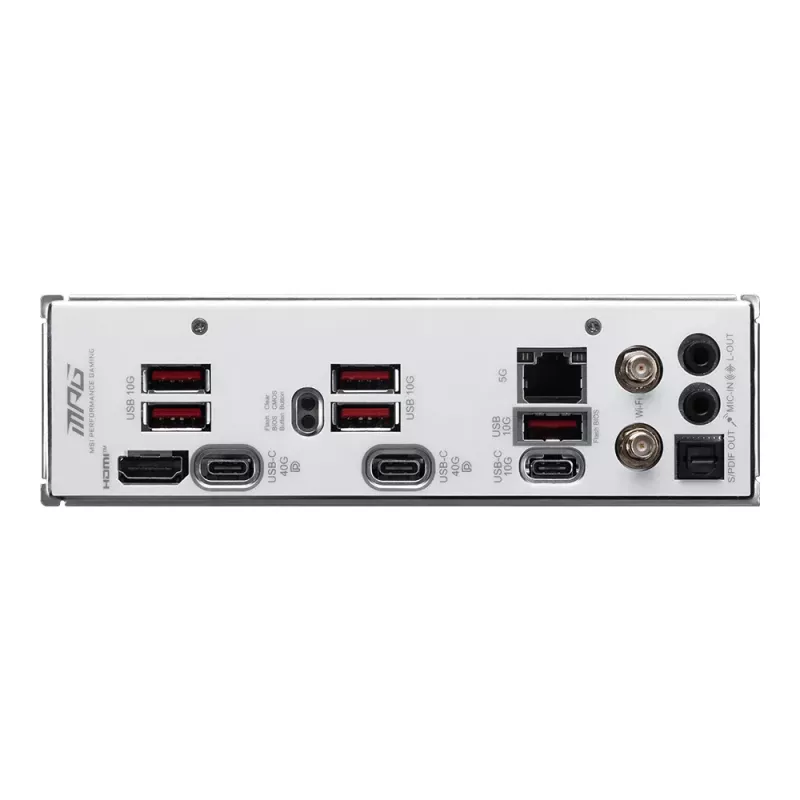

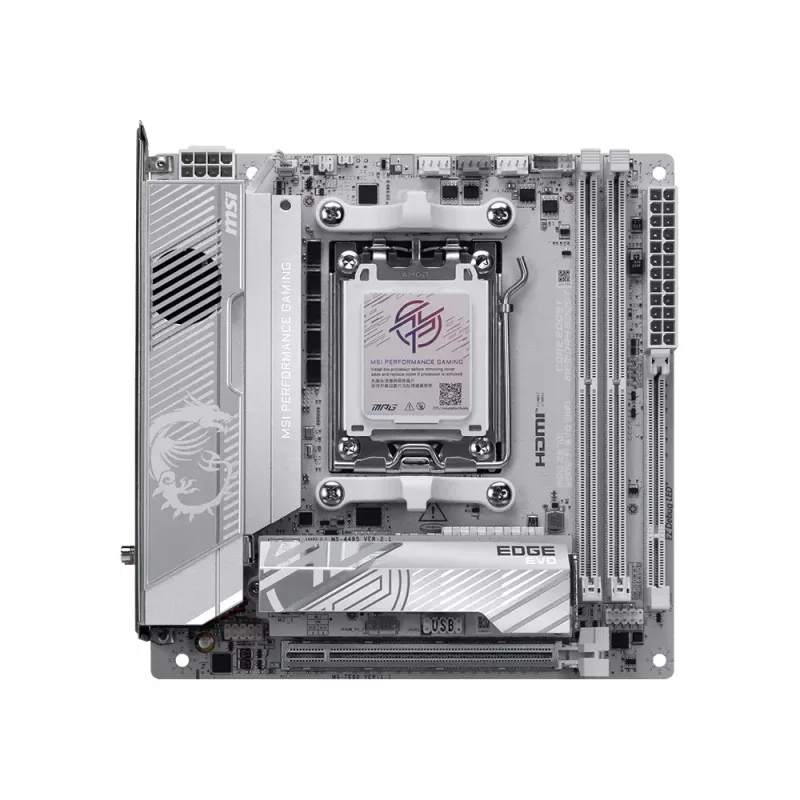

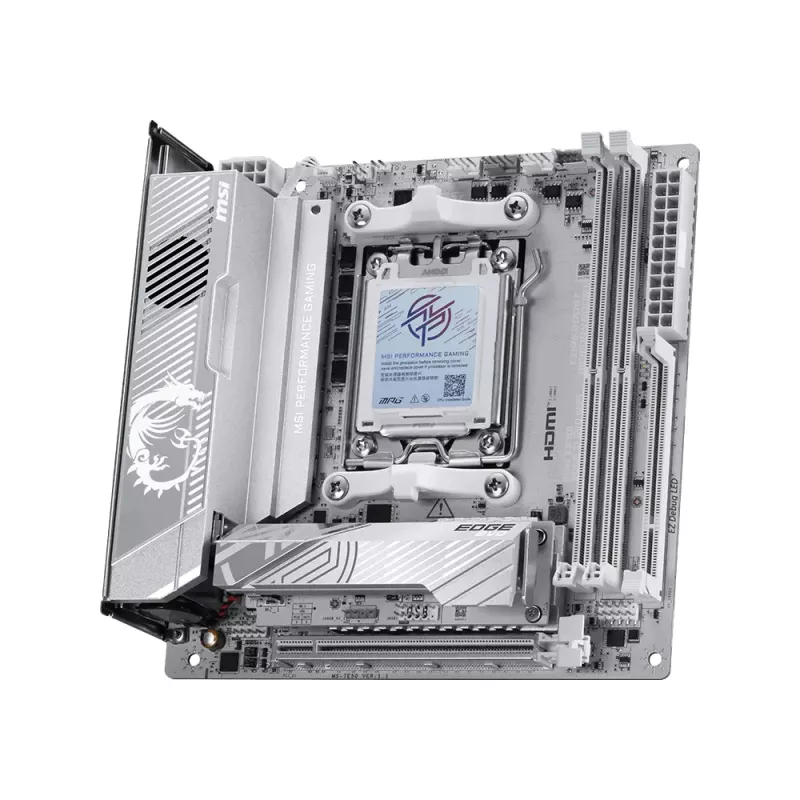

MSI MPG X870I EDGE TI EVO WIFI motherboard AMD X870 Socket AM5 mini ATX

MSI MPG X870I EDGE TI EVO WIFI motherboard AMD X870 Socket AM5 mini ATX
MSI MPG X870I EDGE TI EVO WIFI motherboard AMD X870 Socket AM5 mini ATX
MSI MPG X870I EDGE TI EVO WIFI motherboard AMD X870 Socket AM5 mini ATX
MSI MPG X870I EDGE TI EVO WIFI motherboard AMD X870 Socket AM5 mini ATX
MSI MPG X870I EDGE TI EVO WIFI motherboard AMD X870 Socket AM5 mini ATX
36 mo.
MSI MPG X870I EDGE TI EVO WIFI motherboard AMD X870 Socket AM5 mini ATX
MSI MPG X870I EDGE TI EVO WIFI motherboard AMD X870 Socket AM5 mini ATX
MSI MPG X870I EDGE TI EVO WIFI motherboard AMD X870 Socket AM5 mini ATX
MSI MPG X870I EDGE TI EVO WIFI motherboard AMD X870 Socket AM5 mini ATX
MSI MPG X870I EDGE TI EVO WIFI motherboard AMD X870 Socket AM5 mini ATX
R8,527
MSI MPG X870I EDGE TI EVO WIFI is a compact ITX motherboard based on the AMD X870 chipset with AM5 socket. It supports DDR5 memory and offers modern storage options including M.2 and two SATA connectors, plus integrated Wi‑Fi for wireless networking. The board is intended for small-form-factor build... Read More
Stock 5 Code 1539773 Brand MSI Model MPG X870I EDGE TI EVO WIFI Warranty 3 Years

Shipping & Returns

Estimated delivery Monday, October 5
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

MSI MPG X870I EDGE TI EVO WIFI is a compact ITX motherboard based on the AMD X870 chipset with AM5 socket. It supports DDR5 memory and offers modern storage options including M.2 and two SATA connectors, plus integrated Wi‑Fi for wireless networking. The board is intended for small-form-factor builds where high performance and connectivity are required.

Advantages

The motherboard combines AM5 compatibility with DDR5 support in an ITX form factor, providing a balance of performance and space efficiency. It includes onboard Wi‑Fi, multiple storage interfaces (M.2 and SATA) and a robust build by MSI, making it suitable for compact gaming systems and mini workstations. The product ships with an embedded accumulator-type battery and complies with relevant WEEE classifications.

Suitable for

  • Compact gaming PCs
  • Mini-ITX content creation rigs
  • Small high-performance workstations
  • Upgrading AM5 systems to DDR5 with onboard Wi‑Fi

Key specifications

  • Producer: MSI
  • Producer product name: MPG X870I EDGE TI EVO WIFI
  • MPN: 7E50-001R
  • EAN: 4711377401463
  • Chipset: AMD X870
  • Processor family: AMD, Socket: AM5
  • Supported memory: DDR5
  • Supported storage interfaces: M.2, SATA (2 SATA connectors)
  • Embedded battery: Yes (accumulator type)
  • Gross weight: 2.12 kg; Net weight: 1.67 kg
  • Packing dimensions (HxDxW): 170 x 170 x 82 mm
  • Packing quantity: 1 pc; Palette quantity: 365 pcs
  • Warranty: 36 months

How to use

Install the motherboard into a compatible Mini-ITX chassis, fit an AM5-compatible CPU and DDR5 memory modules according to the motherboard manual. Connect storage devices using the M.2 slot(s) and the two SATA connectors. Attach power and front-panel cables as instructed, and configure BIOS/UEFI settings for desired performance and storage boot order. Install operating system and drivers provided by MSI to enable onboard Wi‑Fi and other features.

Recommendations

For stable operation, use a compatible AM5 CPU and high-quality DDR5 modules, ensure adequate case airflow and a suitable cooling solution for the chosen processor. Follow ESD precautions during installation and update the BIOS/UEFI to the latest MSI release for improved compatibility and stability.
Key Highlights
  • Compact gaming PCs
  • Mini-ITX content creation rigs
  • Small high-performance workstations
  • Upgrading AM5 systems to DDR5 with onboard Wi‑Fi
  • Producer: MSI
  • Producer product name: MPG X870I EDGE TI EVO WIFI
  • MPN: 7E50-001R
  • EAN: 4711377401463
  • Chipset: AMD X870
  • Processor family: AMD, Socket: AM5
  • Supported memory: DDR5
  • Supported storage interfaces: M.2, SATA (2 SATA connectors)
  • Embedded battery: Yes (accumulator type)
  • Gross weight: 2.12 kg; Net weight: 1.67 kg
  • Packing dimensions (HxDxW): 170 x 170 x 82 mm
  • Packing quantity: 1 pc; Palette quantity: 365 pcs
  • Warranty: 36 months
Specifications
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
2280
ACPI version
6.5
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC4080
Audio output channels
7.1 channels
BIOS memory size
512 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.4
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for
PC
CPU fan connector
Yes
Depth
170 mm
DisplayPorts quantity
2
DVI-D ports quantity
0
ECC сompatibility
Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
LAN controller
Realtek RTL8126
Maximum internal memory
256 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
AMD X870
Motherboard chipset family
AMD
Motherboard form factor
mini ATX
Number of HDDs supported
2
Number of M.2 (M) slots
1
Number of memory slots
2
Number of SATA connectors
0
Number of SATA II connectors
0
Number of SATA III connectors
2
Number of storage drives supported
3
On-board graphics card
No
PC health monitoring
CPU, Fan, Temperature, Voltage
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Processor manufacturer
AMD
Processor socket
Socket AM5
Product colour
White
RAID levels
0, 1, 5, 10
RAID support
Yes
S/PDIF out port
Yes
Supported memory clock speed (max)
9000 MHz
Supported memory clock speeds
9000,8000,7000 MHz
Supported memory types
DDR5-SDRAM
Supported processor sockets
Socket AM5
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
3.7
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Total number of SATA connectors
2
USB 2.0 connectors
2
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB4 Gen 2x2 ports quantity
1
VGA (D-Sub) ports quantity
0
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Width
170 mm

Manual

Open Manual

Leaflet

Open Leaflet
Price history over the last 6 months
MSI MPG X870I EDGE TI EVO WIFI motherboard AMD X870 Socket AM5 mini ATX
Current
R8,527
Lowest
R8,354
Highest
R8,789
Change 24H
-R29   0%
Week
+R161   +2%
Month
+R22   +0%

Independent reviews by tech media

techpowerup.comCombatus

Verdict: The MSI MPG X870I Edge Ti Evo Wi-Fi will be available for US$400

Pros
  • Three M.2 ports
  • Excellent CPU cooler compatibility compared to other boards
  • Four decent wattage fan headers
  • No bandwidth sharing
  • 27 W front panel Type-C power
  • Tool-free SSD and heatsink installation
  • Dual 40 Gbps USB4 Type-C ports with Thunderbolt 4
Cons
  • Gigabyte's X870 option is much cheaper
  • PCIe Gen 5 double-sided SSD temperature disappointing
  • VRMs get hot with out-of-the-box settings
  • VRM fan needs fine-tuning to avoid poor thermals and noise, but can't be tuned in software
  • EFI fan control has some
Read the full review at techpowerup.com →
