Mounting kit Noctua NM-M1-MP83 for Intel LGA 1150 1151 1155 1156

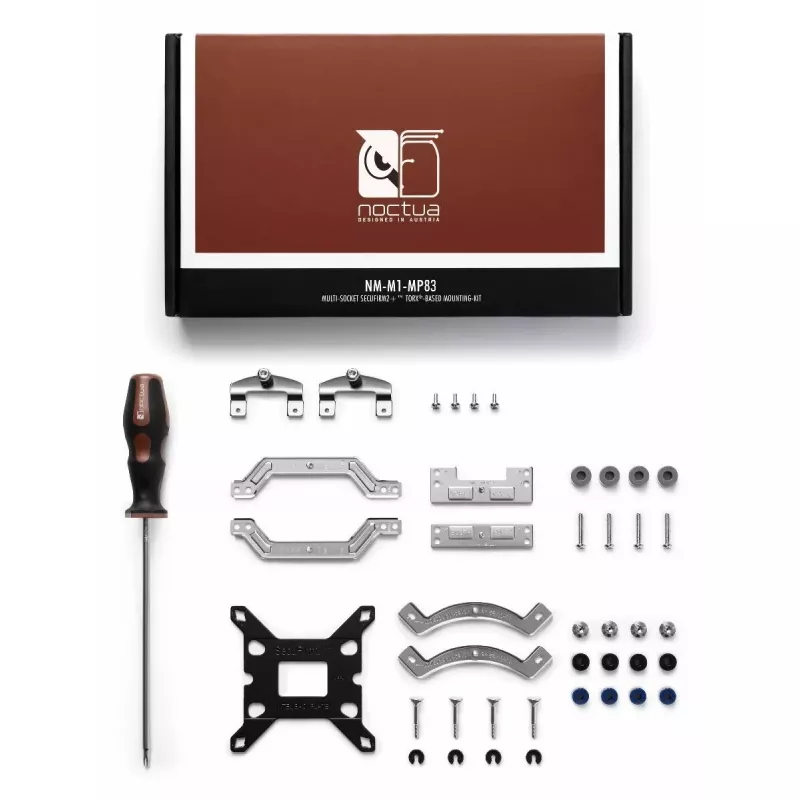

The Noctua NM-M1-MP83 is an enthusiast-grade multi-socket SecuFirm2+™ mounting kit for CPU coolers with an 83 mm mounting pitch. It enables users to upgrade or migrate compatible Noctua coolers to modern Torx®-based SecuFirm2+™ fittings and supports a broad range of desktop platforms, including AMD AM5 & AM4 and Intel LGA1851, LGA1700, LGA1200 and LGA115x. The kit includes Noctua’s magnetic-tip NM-SD1 Torx® T20 screwdriver and offers integrated fastening brackets, coil-spring pressure screws and an AM5 offset mounting option that can improve thermal contact and reduce CPU temperatures by about 1–3°C in typical scenarios.

Advantages

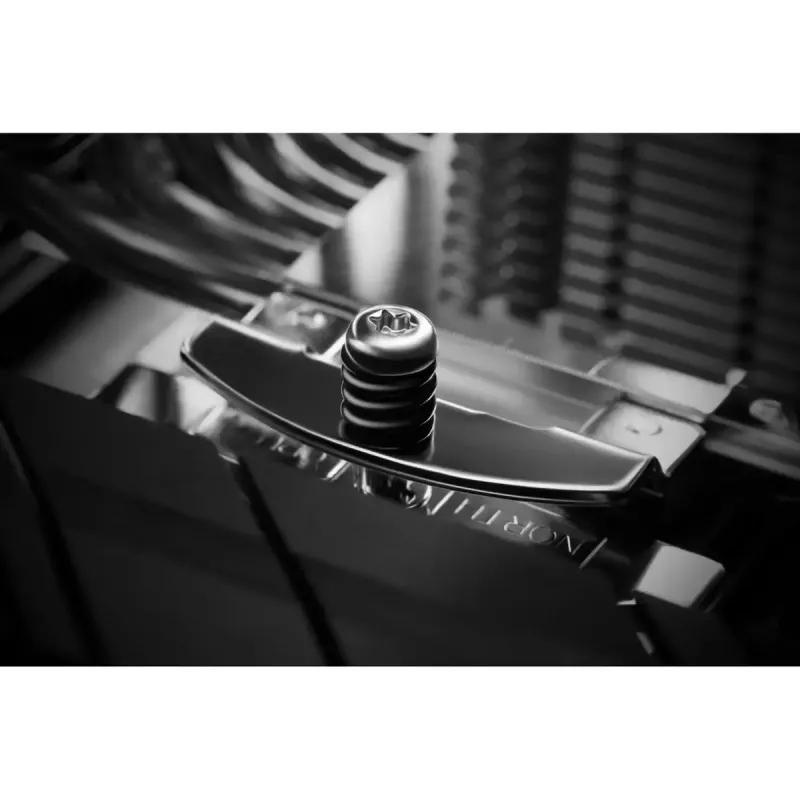

The SecuFirm2+™ standard uses Torx® T20 screws for reduced cam-out and improved durability compared with Phillips heads. The NM-M1-MP83 provides multi-socket compatibility for many Intel and AMD desktop sockets, tailored parts for each platform to avoid cross-platform issues, and fully integrated fastening brackets with pre-fixed springs for straightforward installation. The included NM-SD1 magnetic T20 screwdriver with a 150 mm shaft helps reach screws in compact builds, and the AM5 offset bars allow improved contact pressure over the processor hotspot.

Suitable for

• Upgrading Noctua CPU coolers with 83 mm mounting pitch to newer Intel and AMD sockets
• Migrating older Noctua coolers to AM5/AM4 or recent Intel platforms
• ITX, HTPC and compact builds where a magnetic long-shaft screwdriver eases installation
• Air-cooled premium PC builds requiring reliable, long-term mounting hardware

Key specifications

• Model: NM-M1-MP83
• Mounting pitch: 83 mm
• Supported sockets: AMD AM5, AM4; Intel LGA1851, LGA1700, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156
• Standard: SecuFirm2+™ (Torx® T20)
• Includes: NM-SD1 magnetic Torx® T20 screwdriver (150 mm shaft)
• Colours: Black, Brown, Silver

How to use

Verify that your heatsink uses an 83 mm mounting pitch and consult Noctua’s compatibility information before installation. Fit the tailor-made AMD or Intel parts for your socket, use the integrated fastening brackets with their pre-fixed springs and tighten screws using the included NM-SD1 Torx® T20 screwdriver until the coil springs compress evenly to achieve correct contact pressure. For AM5 systems, install the offset mounting bars if improved contact over the Core Complex Die(s) is desired. The Torx® drive minimizes cam-out and simplifies tightening, especially in space-restricted environments.

Recommendations

Only use this kit with heatsinks that have an 83 mm mounting pitch; for 78 mm pitch coolers select the NM-M1-MP78 kit. Follow Noctua’s detailed compatibility lists and installation instructions to ensure correct part selection and mounting. Regularly check screw tightness after initial installation and avoid excessive force to prevent damage.
