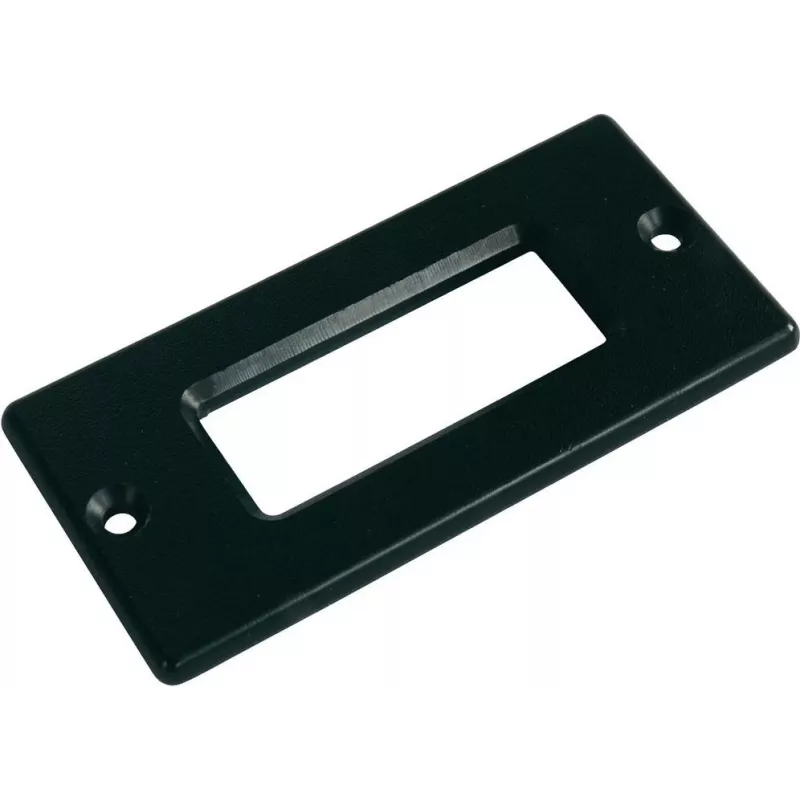

Mounting Bracket for Light Sensor Panasonic MSEQ501 horizontal mounting

Panasonic MSEQ501 horizontal mounting bracket is designed to support compatible Panasonic light sensors from the EQ500 series. The accessory combines metal and plastic components to provide a stable, fixed horizontal orientation for sensors used in building automation and lighting control systems. It is intended for retrofit and new installations where a reliable horizontal alignment of the sensor is required to achieve consistent ambient light detection and uniform performance.

Advantages

The bracket offers a rigid support structure that resists deformation and maintains sensor alignment over time. Its combined metal and plastic construction balances durability with lightweight handling, simplifying installation while ensuring a secure hold. The design provides consistent horizontal orientation, helping to reduce measurement variance and improve repeatability of light sensing in control applications.

Suitable for

• Mounting compatible Panasonic EQ500 series light sensors in a fixed horizontal position
• Retrofit projects where an existing fixture requires horizontal sensor alignment
• New installations in offices, corridors, retail spaces and public buildings requiring ambient light monitoring
• Lighting control systems and building automation where stable sensor orientation improves control accuracy

Key specifications

• Orientation: fixed horizontal mounting for light sensors
• Construction: combination of metal and plastic materials for strength and reduced weight
• Compatibility: designed for use with Panasonic EQ500 series light sensors
• Application: indoor installation for lighting control and ambient light detection
• Mounting method: bracket attachment suitable for retrofit and new-build installations

How to use

Secure the bracket to the intended mounting surface following local electrical and mounting regulations. Attach the compatible Panasonic sensor to the bracket and ensure it is aligned in the horizontal orientation specified. Check that fixation points are tightened to prevent movement but avoid over-torquing plastic parts. After installation, verify sensor readings and adjust the bracket position if necessary to achieve the required detection area and measurement consistency.

Recommendations

Install the bracket in locations free from direct obstructions and major sources of reflected glare. Avoid mounting near strong artificial light sources that could skew ambient light measurements. For long-term reliability, perform periodic inspections to confirm the bracket and sensor remain securely fastened and free from damage or contamination.
