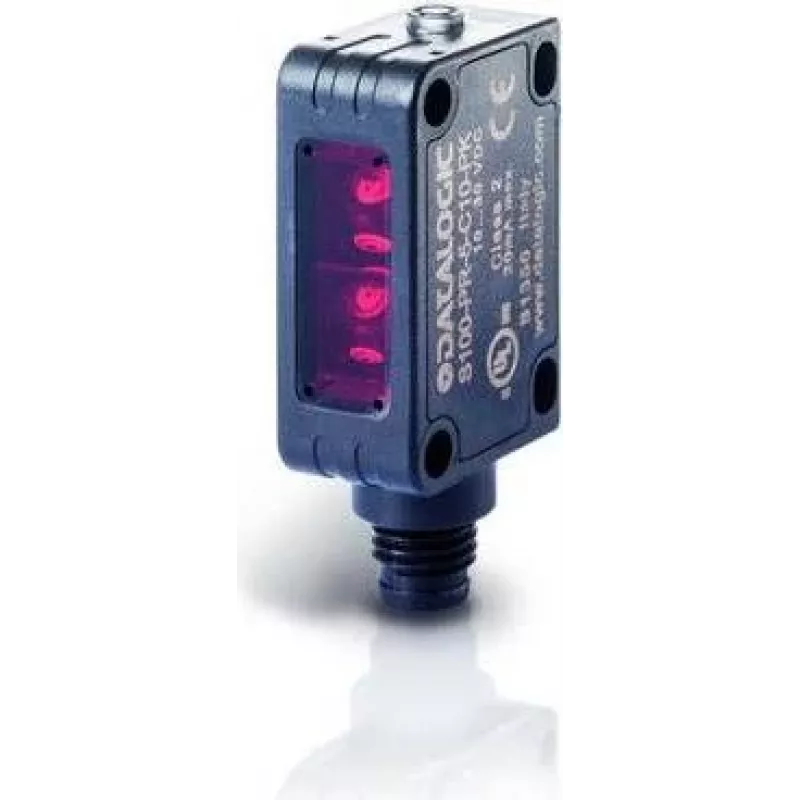

Photoelectric sensor Datalogic S100-PR-5-B00-PK — black plastic, IP67, 12×20×32 mm

Datalogic S100-PR-5-B00-PK is a compact photoelectric sensor in a black plastic housing with IP67 protection, sized 12×20×32 mm. The sensor belongs to the S100 miniature series and is designed for reliable object detection and presence sensing in confined spaces where dust- and water-resistant performance is required. The S100 range features a compact footprint and multiple mounting options that simplify integration in machines and equipment with limited space.

Advantages

The S100-PR-5-B00-PK offers a robust IP67-rated enclosure that protects internal electronics from dust and water, enabling use in demanding industrial environments. Its small dimensions reduce the space needed for sensor placement while the black plastic housing provides corrosion-resistant mechanical protection. The series design includes four fixing holes (two threaded on the front and two slotted on the rear) for versatile mounting. The model omits manual adjustment, which simplifies installation and eliminates the risk of unintended parameter changes during operation. When used with IO-Link-capable variants of the S100 family, the sensor platform supports programmability and remote configuration through Datalogic ASIC features, including stable dual outputs and minimized output jitter during digital communication.

Suitable for

• Object presence and detection in compact machinery
• Conveyor lines with limited mounting space
• Packaging and handling equipment requiring IP67-rated sensors
• Applications where tamper-free fixed sensing is preferred

Key specifications

• Housing material: black plastic
• Ingress protection: IP67
• Dimensions: 12 mm (width) × 20 mm (depth) × 32 mm (height)
• Sensor type: photoelectric / miniature series
• Mounting options: two threaded front holes and two slotted rear holes
• Output channels: dual output architecture (model dependent)

How to use

Install the sensor in the required position using the provided fixing holes, selecting either the threaded front or slotted rear mounts to suit the application. Position the sensing face toward the target area and ensure alignment with the object path. Connect the sensor to the control system according to wiring guidelines provided by the system manufacturer; if used within an IO-Link system, configure communication parameters from the master device or engineering software. Because this model does not include manual adjustment, verify correct detection distance and alignment during initial setup and lock the sensor mechanically to prevent displacement.

Recommendations

Place the sensor so the sensing axis is perpendicular to the object surface to maximize detection reliability. Keep the sensing face free of heavy contaminant buildup and periodically inspect seals and connectors to maintain IP67 integrity. When integrating with IO-Link-capable devices, apply centralized configuration to manage thresholds and diagnostics remotely for consistent performance.
