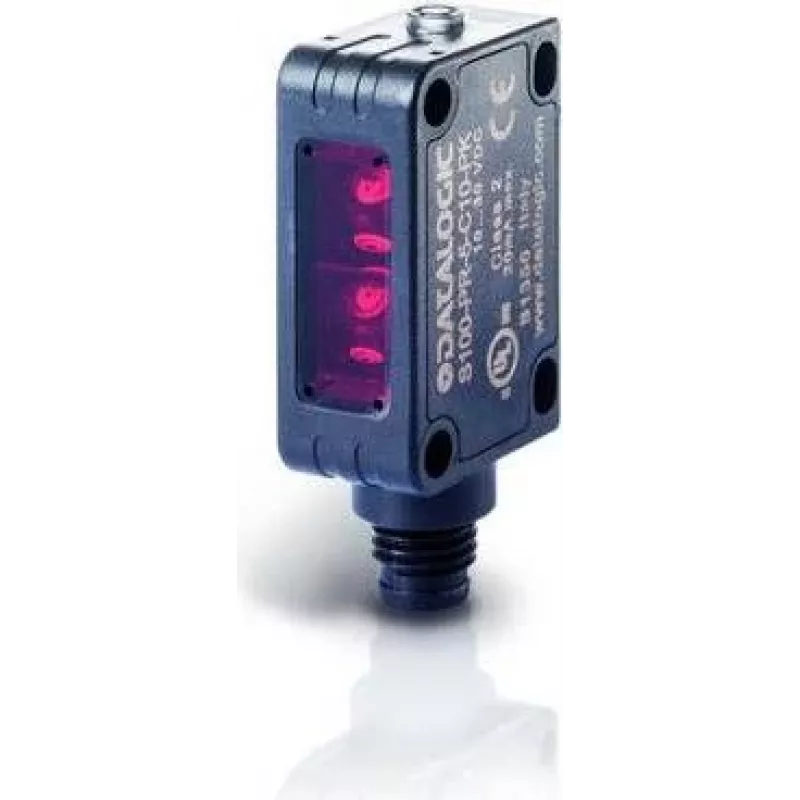

Photoelectric sensor Datalogic S100-PR-2-B10-PK, plastic housing, IP67, 12×20×32 mm

Datalogic S100-PR-2-B10-PK is a compact photoelectric sensor designed for reliable object detection in industrial automation. The sensor features a black plastic housing with IP67 ingress protection and a miniature footprint of 12 × 20 × 32 mm, making it suitable for installations with limited space. The S100 series provides a standardized, small-form solution with four fixing holes (two threaded on the front and two slotted on the rear) to simplify mounting in different machine frames and conveyor systems. The model is supplied without manual sensitivity adjustments and relies on Datalogic's integrated electronics for stable performance and IO-Link programmability where applicable.

Advantages

The sealed plastic housing and IP67 rating ensure operation in dusty and wet environments while maintaining a low overall weight and compact size. The sensor’s small dimensions and multiple mounting options enable flexible placement on machines and conveyors. Fixed factory settings remove the need for local adjustment, reducing commissioning time and preventing accidental tampering. With Datalogic’s ASIC and IO-Link capability in the S100 family, the device supports digital configuration and precise control of dual outputs, enabling consistent, jitter-free signaling in automated systems.

Suitable for

• Conveyor belt monitoring and object presence detection
• Part counting and pick-and-place verification in compact machines
• Integration into control cabinets and tight mechanical assemblies
• Applications requiring a sealed sensor in dusty or wet conditions

Key specifications

• Sensor type: Photoelectric sensor (through-beam/reflex/contrast family within S100 series)
• Housing material: Plastic, black
• Ingress protection: IP67 (dust-tight and protected against immersion up to specified limits)
• Dimensions (W × D × H): 12 × 20 × 32 mm
• Mounting: Four fixing holes (two threaded front, two slotted rear) for versatile installation
• Output: Dual output channels with stable digital signaling (IO-Link programmable in S100 family)

How to use

Mount the sensor using appropriate screws or brackets that match the provided threaded and slotted holes. Position the device so the optical path aligns with the target object or reflector according to the chosen sensing mode. Connect power and signal wiring following the machine’s wiring diagram and the manufacturer’s electrical specifications. If IO-Link configuration is available for the installed unit, use an IO-Link master to program sensor parameters and output behavior; otherwise use the factory-set operating mode. Verify detection by running test cycles and adjust mechanical alignment if necessary.

Recommendations

For reliable detection, keep the optical window free of dust and residue and verify mounting stability to avoid misalignment from vibration. Use appropriate cable protection and strain relief when routing wiring in moving or exposed areas. When integrating into IO-Link systems, confirm compatibility with the IO-Link master and apply recommended configuration parameters for dual-output behavior to ensure consistent, jitter-free signals.
