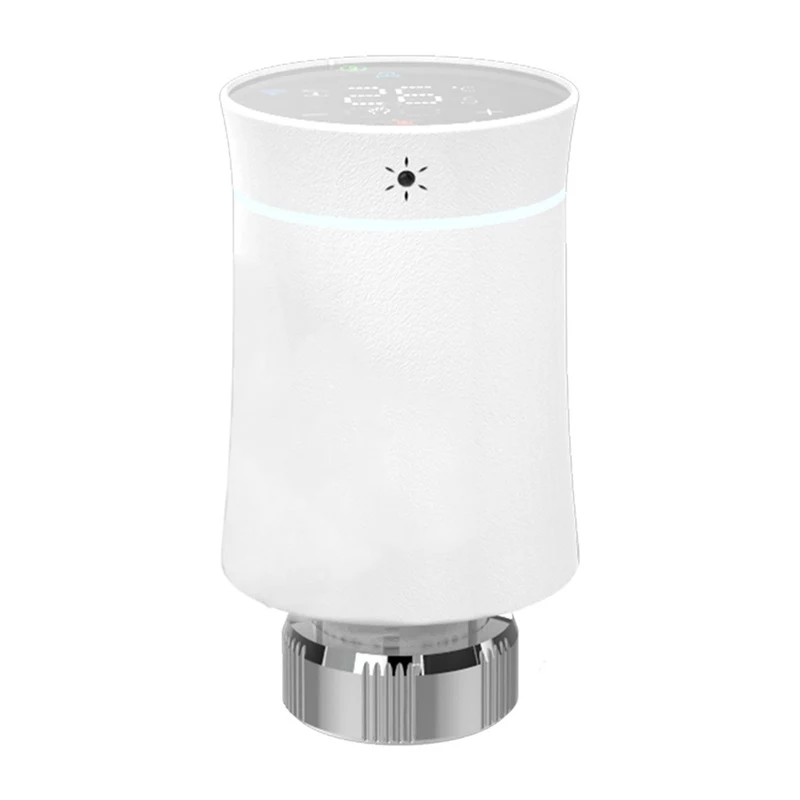

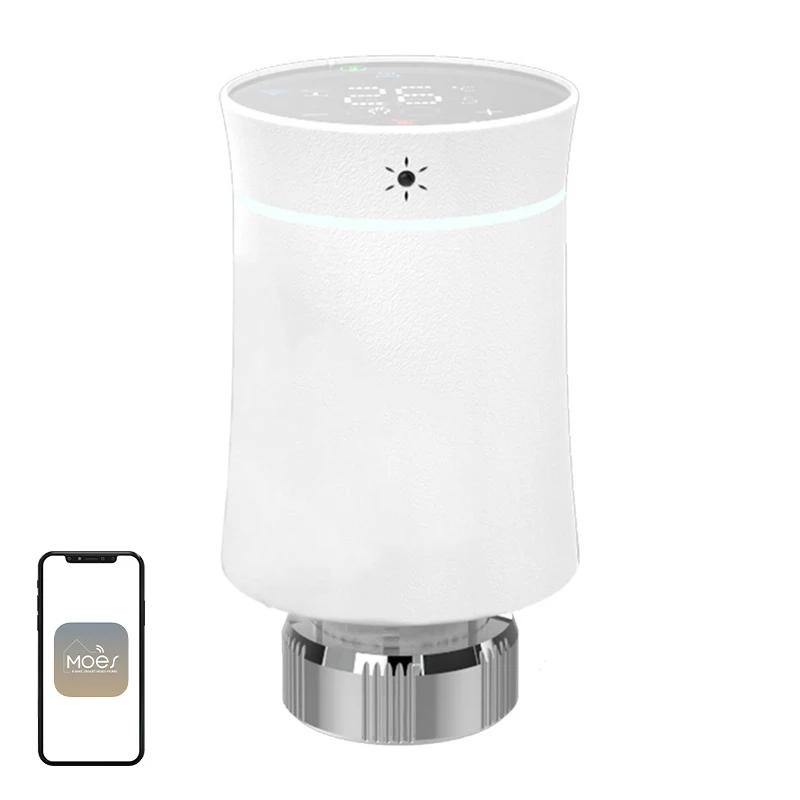

MOES TRV BY100 ZigBee Touch Thermostatic Head

Take control of your home heating with the MOES TRV BY100, a smart thermostatic radiator valve that replaces manual valves to deliver precise, automated temperature management for every room. This ZigBee 3.0 device pairs with a compatible gateway to enable scheduling, remote control, and energy savings, all from your smartphone or voice assistant.

Who is it for

Homeowners and renters seeking to reduce heating costs and enhance comfort without complex installation. Ideal for those already using Tuya Smart or Smart Life ecosystems, or anyone wanting to add smart climate control to individual radiators.

Main features

• ZigBee 3.0 connectivity for reliable, low-power mesh networking (requires ZigBee gateway).
• Touchscreen LCD with backlight for intuitive local control and clear temperature display.
• Versatile scheduling: 5+2, 6+1, or 7-day programs with 6 periods per day.
• Special modes: manual, programmed, holiday, and boost for temporary comfort.
• Child lock, anti-freeze function, and open window detection for safety and efficiency.

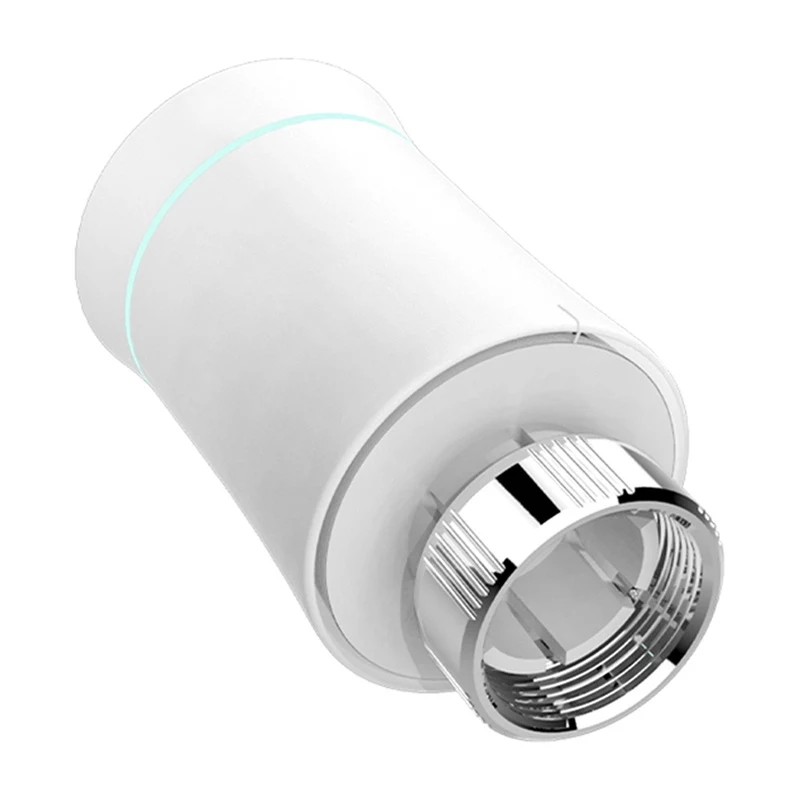

• Compatible with M30x1.5mm valve threads; adapters included for RA, RAV, RAVL, Caleffi, Giacomini, and M28.
• Powered by 2x AA alkaline batteries (approx. 1 year battery life).
• Works with Amazon Alexa and Google Assistant via compatible ZigBee hub.

Specifications

• Connectivity: ZigBee 3.0 (IEEE 802.15.4)
• Power supply: 2x AA 1.5V alkaline batteries
• Battery life: approx. 1 year (typical)
• Temperature sensor: NTC
• Temperature setting range: 5–35°C
• Temperature display range: 0–70°C
• Temperature accuracy: ±0.5°C
• Display: LCD touch screen with backlight
• Valve thread: M30x1.5mm
• Included adapters: RA, RAV, RAVL, Caleffi, Giacomini, M28
• Operating temperature: 0–50°C
• Operating humidity: 5–95% RH (non-condensing)
• Material: PC + ABS

Tips

For full smart functionality, pair with a ZigBee 3.0 gateway such as the MOES ZigBee Hub. Use the Tuya Smart or Smart Life app to create schedules that match your daily routine and save energy automatically.
