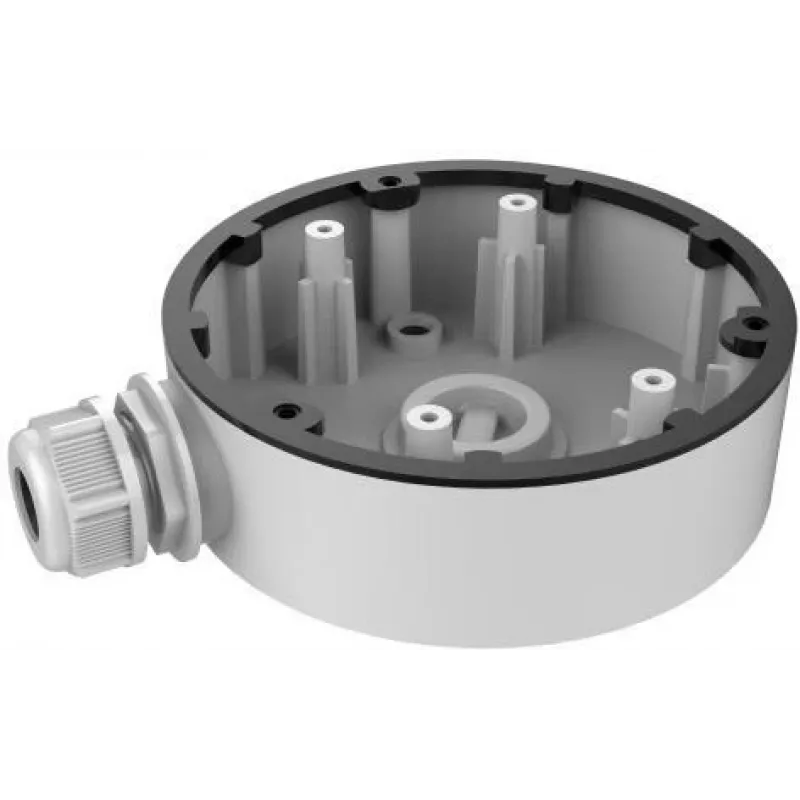

MITON MT-P1280-D46 Surface-Mounted Junction Box IP65 IK07 Grey ABS

The MITON MT-P1280-D46 is a robust surface-mounted junction box designed for indoor and outdoor applications. Manufactured from high-quality ABS material, it offers excellent durability and resistance to environmental factors. With an IP65 rating, it is dust-tight and protected against water jets, making it suitable for demanding environments. The IK07 impact protection ensures resistance against mechanical impacts. The grey (RAL 7035) opaque lid is secured with 4 plastic screws, providing a secure enclosure for electrical connections.

Advantages

This junction box provides reliable protection for electrical installations. Its UV and chemical resistance make it ideal for outdoor use, while the internal mounting bosses allow for easy installation of DIN rails or mounting plates. The user-definable cable entries offer flexibility for various cabling requirements.

Suitable for

• Electrical junction and connection boxes in industrial, commercial, and residential settings
• Outdoor installations requiring weatherproof protection
• Enclosures for network outlets, consolidation points, and fibre/FTTH boxes

Key specifications

• Product Type: Surface-mounted junction box
• Ingress Protection: IP65
• Impact Protection: IK07
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Grey (RAL 7035)
• Lid Type: Opaque
• Lid Fastening: 4 plastic screws
• Operating Temperature: -25°C to +60°C
• Flammability Rating: UL94-V2
• Glow Wire Test: 650°C
• UV Resistance: Yes
• Chemical Resistance: Yes
• Internal Mounting: Mounting bosses for DIN rail/plate
• Application Environment: Indoor/Outdoor
• Certifications: CE, RoHS
• External Dimensions (L x W x H): 128 x 80 x 46 mm
• Internal Dimensions (L x W x H): 120 x 72 x 40 mm (approx.)
• Cable Entries: User-definable (no pre-drilled holes)

Recommendations

For optimal performance, ensure proper sealing of cable entries with appropriate glands. This junction box is suitable for use with DIN rail components and can be mounted on walls or other surfaces. Always follow local electrical codes and regulations during installation.
