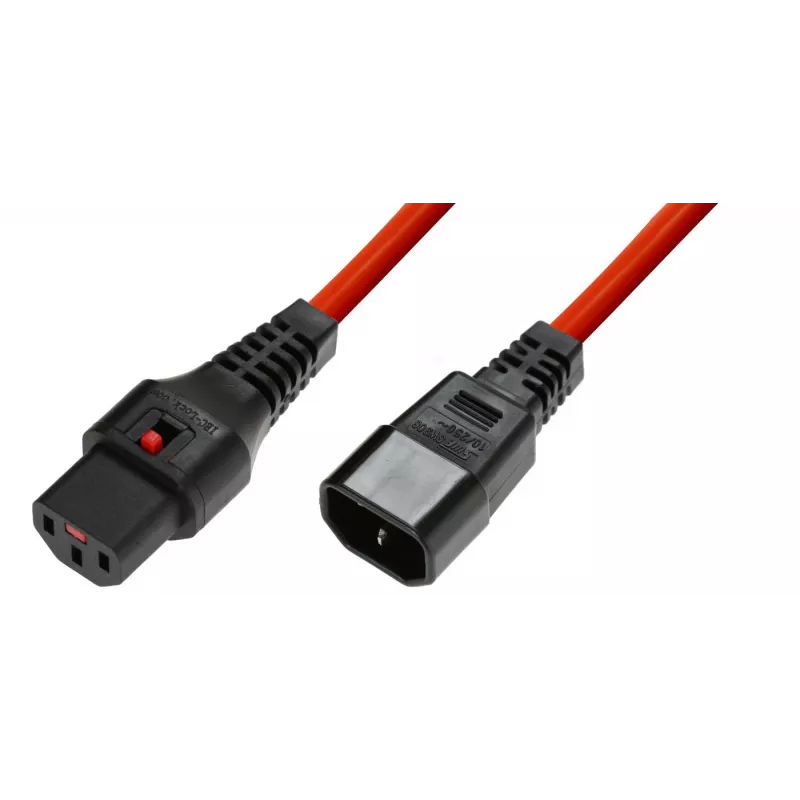

Microconnect MC-C13C14LOCK-1.5M power cable Red C13 coupler C14 coupler

The MicroConnect MC-C13C14LOCK-1.5M is a 1.5 m power cable with IEC C13 to C14 connectors designed for 230V AC systems and rated at 10 A. Constructed with H05VV-F red jacket and 1.00 mm² conductor cross-section, the cable provides a standard connection solution for computers, servers, network equipment and other electronic devices requiring a detachable IEC power lead with locking function.

Advantages

This IEC power cable offers a locking mechanism for improved retention between C13 and C14 connectors, a 1.5 meter length that balances reach and cable management, and a flexible H05VV-F sheath in red for visibility and routing. The 1.00 mm² conductors and 10 A rating make it suitable for common IT and office equipment while complying with typical 230V AC installations.

Suitable for

• Desktop computers and workstations
• Rack servers and data centre equipment with IEC C14 inlets
• Network switches, UPS units and power distribution units (PDUs)
• Laboratory or office devices using detachable IEC power leads

Key specifications

• Connector: IEC C13 to C14 (locking)
• Length: 1.5 m
• Cable type: H05VV-F
• Conductor size: 1.00 mm²
• Voltage / current: 230 V AC / 10 A
• Colour: Red
• Brand / model: MicroConnect MC-C13C14LOCK-1.5M

How to use

Insert the IEC C14 plug into the equipment inlet and connect the IEC C13 connector to the power source or PDU. Ensure the locking mechanism engages to secure the connection. Route the cable to avoid sharp bends and mechanical strain, and verify that connected devices do not exceed the 10 A rating. Disconnect by releasing the lock before pulling the connector.

Recommendations

Use this cable for standard 230V installations within its 10 A rating, avoid permanent outdoor exposure, and inspect periodically for wear or damage. Replace the cable if the jacket, conductors or locking feature show signs of deterioration.
