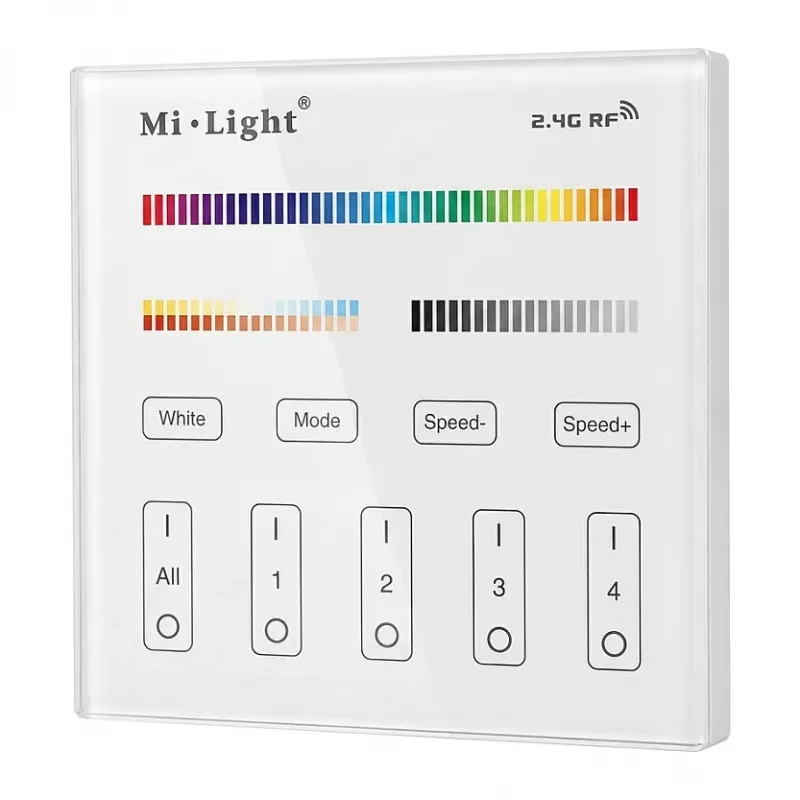

MIBOXER B4 Smart Panel RGB-CCT 4-Zone Remote Control

Control your RGB+CCT LED lighting with the MIBOXER B4 Smart Panel Remote Control. This capacitive touch panel offers intuitive control over four independent zones, allowing you to adjust brightness, color temperature, and dynamic effects. Designed for wall mounting, it seamlessly integrates with MiBoxer and MiLight 2.4GHz LED controllers.

Advantages

Easy touch control with tempered glass surface; supports RGB, warm white, and cool white LEDs; memory function retains last setting; reliable 2.4GHz wireless connection up to 30 meters.

Suitable for

• Smart home lighting systems
• Commercial and residential LED installations
• Multi-zone lighting control

Key specifications

• Product Type: Smart Panel Remote Control
• Control Method: Capacitive Touch Panel, Wireless RF
• Wireless Frequency: 2.4GHz
• Number of Control Zones: 4 Zones
• LED Type Compatibility: RGB+CCT (RGB, Warm White, Cool White)
• Dimming Capability: Yes (Brightness & Saturation)
• Color Temperature Adjustment: Yes (2700K-6500K)
• Power Input: AC 100-240V
• Installation Type: Wall-mounted (Standard Wall Box)
• Panel Material: Tempered Glass
• Control Distance: Up to 30 meters
• Operating Modes: Static Color, Dynamic Modes, White Light Modes
• Memory Function: Yes (retains last setting)
• Compatibility: MiBoxer / MiLight 2.4GHz Series LED Controllers
• Operating Temperature: -20°C to 60°C
• Certifications: CE, RoHS

Recommendations

For optimal performance, pair with compatible MiBoxer or MiLight 2.4GHz LED controllers. Ensure proper wall box installation.
