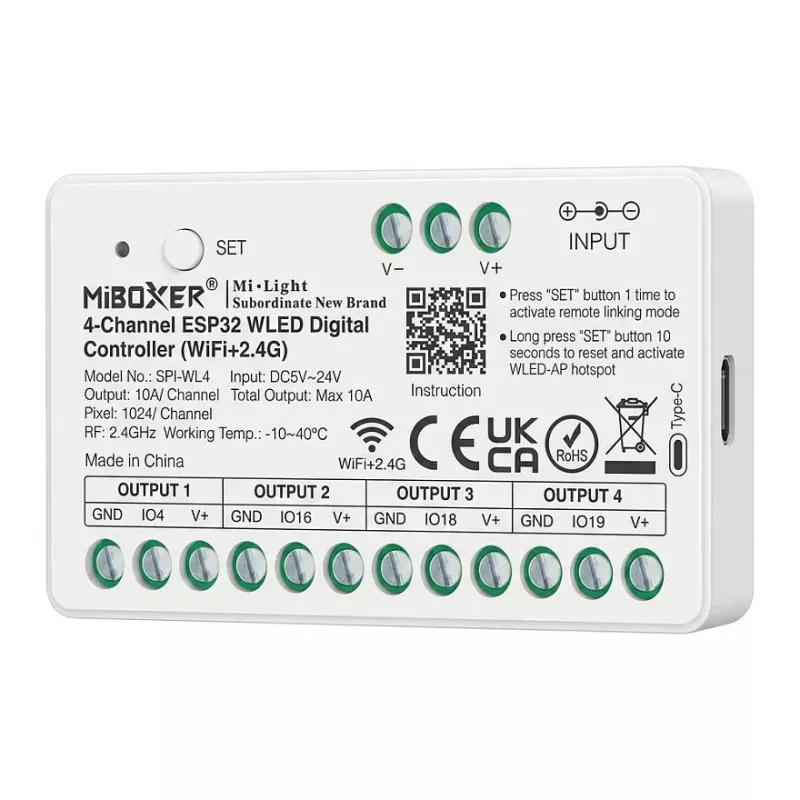

Synergy 21 Pixel LED Controller SPI-Series WLED (2.4GHz+WiFi) 4 Channels MiLight/MiBoxer (SPI-WL4)

The Synergy 21 Pixel LED Controller SPI-Series WLED (SPI-WL4) is a versatile 4-channel controller designed for addressable RGB LED strips and pixels. It supports both 2.4GHz RF (MiLight/MiBoxer compatible) and Wi-Fi control, enabling seamless integration with the WLED app for dynamic lighting effects. Ideal for home, commercial, and entertainment lighting projects.

Advantages

Dual wireless control (Wi-Fi and 2.4GHz RF) for flexible operation. Pre-installed WLED firmware offers extensive customization with over 100 dynamic effects, static colors, brightness control, and music synchronization. Supports a wide range of LED chipsets including WS2811, WS2812, SK6812, and more. Screw terminals for secure and easy wiring.

Suitable for

• Addressable LED strip installations (WS2812B, SK6812, etc.)
• Pixel LED projects for signage, decoration, or stage lighting
• Smart home lighting systems with WLED app control
• Integration with MiLight/MiBoxer remotes and gateways

Key specifications

• Controller Type: Pixel LED Controller
• Control Protocol: SPI
• Input Voltage: DC 5-24V
• Output Channels: 4 independent channels
• Max Pixels per Channel: 600 pixels
• Max Total Pixels: 2048 pixels
• Wireless Connectivity: Wi-Fi (2.4GHz) and 2.4GHz RF
• Compatible LED Chipsets: WS2811, WS2812, WS2812B, WS2813, WS2815, SK6812, TM1804, UCS1903
• Control App: WLED App
• RF Remote Compatibility: MiLight/MiBoxer series
• Firmware: WLED (pre-installed)
• Operating Temperature: -20°C to 60°C
• Housing Material: ABS Plastic
• Input/Output Connection: Screw terminals

Recommendations

For optimal performance, use a stable 5V or 12V power supply suitable for your LED setup. Ensure proper power injection for long runs. Compatible with MiLight WL-Box1 gateway for RF control.
