Meeting room display ALLNET MT10RK3288A10POENFC 10 inch (25.4 cm) IPS 1280×800 Android 10 2GB RAM 16GB Black

The ALLNET MT10RK3288A10POENFC is a 10" (25.4 cm) meeting room display with a 1280×800 IPS touchscreen and Android 10 operating system. The display offers a 16:10 aspect ratio and a brightness of 280 cd/m², combined with multi-touch capability for interactive presentations and collaboration. The unit integrates a 2 MP camera, built-in microphone and a 1.5 W speaker, and provides 2 GB of RAM and 16 GB of internal storage for applications, signage content and meeting software. Connectivity options include Wi‑Fi (802.11a/b/g/n), Bluetooth, Ethernet LAN, USB and NFC, and the device supports Power over Ethernet (PoE) to simplify installation.

Advantages

The IPS panel delivers wide viewing angles and consistent color reproduction suitable for meeting participants positioned around the display. Integrated camera, microphone and speaker reduce the need for external peripherals and streamline video conferencing setups. PoE support and VESA mounting make installation flexible and help minimize cable clutter in meeting rooms. Android 10 with on-board storage and RAM enables local execution of conferencing apps, signage players and management tools.

Suitable for

• Small and medium meeting rooms for video conferencing
• Presentation and collaboration stations

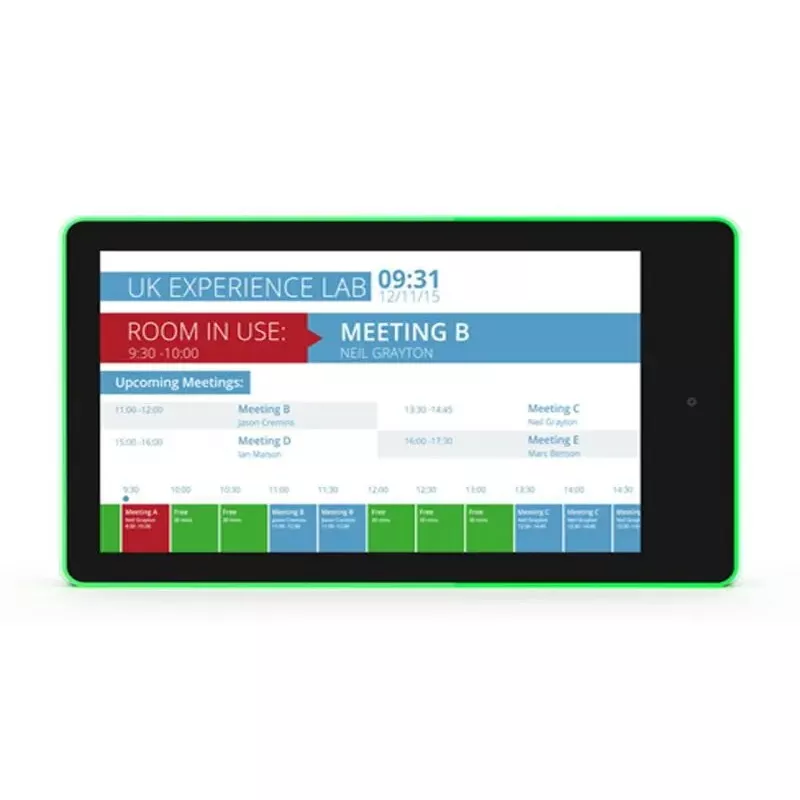

• Digital room signage and schedule displays
• Huddle spaces and reception areas requiring compact interactive displays

Key specifications

• Screen size: 25.4 cm (10")
• Resolution: 1280 × 800 pixels
• Panel type: IPS with 16:10 aspect ratio
• Brightness: 280 cd/m²
• Touch capability: multi-touch touchscreen
• Memory: 2 GB RAM
• Storage: 16 GB internal flash
• Camera: built-in 2 MP camera
• Audio: built-in microphone and 1.5 W speaker
• Network: Wi‑Fi 802.11a/b/g/n, Bluetooth, Ethernet LAN
• Extras: NFC, USB connectivity
• Power: Power over Ethernet (PoE) compatible
• Color: black
• Mounting: VESA compatible

How to use

Power the display via a PoE-enabled network switch or use the appropriate power injector where PoE is not available. Mount the unit using a VESA-compatible bracket at a comfortable viewing height. Connect the display to the local network using Ethernet or configure Wi‑Fi in the Android settings. Install or configure required video conferencing and signage applications from supported sources. Use the touchscreen to navigate menus, join meetings, annotate content or control playback of signage media. NFC and Bluetooth can be used for quick device pairing where supported.

Recommendations

For reliable video conferences, use a stable wired network connection when possible and place the display at eye level for participants. Keep Android system and app software up to date and allocate storage for recorded meetings or cached signage content. In environments with limited power cabling, leverage PoE to simplify installation while ensuring your network switch supplies sufficient power for the device.
