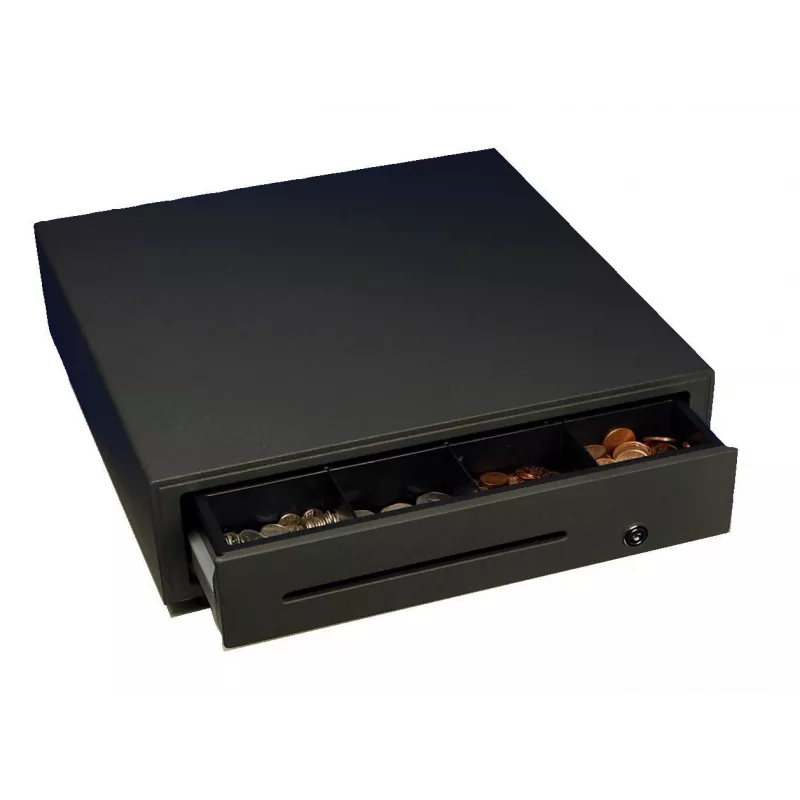

Manual cash drawer Star Micronics CB-2002 FN

The Star Micronics CB-2002 FN is a manual cash drawer designed for reliable cash handling in retail and hospitality environments. It has a durable metal construction, a compact footprint (410 mm W × 415 mm D × 114 mm H) and a weight of 7 kg. The drawer operates from a POS printer peripheral drive circuit and requires a DC 24 V, 1 A input; it includes a 3-position key lock with manual drawer release and a large-value note slot. Available in charcoal grey or ultra white to match Star POS printers and tablet POS systems, the CB-2002 FN can be fitted with optional accessories for under-desk mounting and additional security.

Advantages

The CB-2002 FN offers direct drive compatibility with Star and industry-standard POS printers, a robust 3-position key lock for controlled access, and a dedicated large-note slot for quick high-value transactions. Its metal housing and compact dimensions provide a balance of durability and space efficiency, while optional accessories like under-desk Z brackets and a lockable cover increase installation flexibility and security.

Suitable for

• Retail cash registers
• Cafés and quick-service restaurants
• Mobile POS setups with tablet systems (when paired with matching peripherals)
• Small to medium-sized businesses requiring a secure manual cash drawer

Key specifications

• Model: Star Micronics CB-2002 FN
• Dimensions (W × D × H): 410 × 415 × 114 mm
• Weight: 7 kg
• Power: DC 24 V, 1 A (driven from POS printer peripheral drive circuit)
• Lock: 3-position key lock with drawer release
• Features: Large-value note slot
• Colours: Charcoal Grey, Ultra White
• Optional accessories: Under-desk Z brackets, Lockable cover, Note holder bracket, Note divider

How to use

Install the cash drawer beneath or beside the POS printer or countertop and connect it to the POS printer peripheral drive circuit according to the printer manufacturer’s instructions. Use the key lock to switch between locked, drawer-release, and service positions as required. For manual opening, turn the key to the release position and pull the drawer; ensure the note slot is used for quick insertion of larger bills without opening the drawer. If using wireless accessories such as DK AirCash, follow the accessory setup guide.
