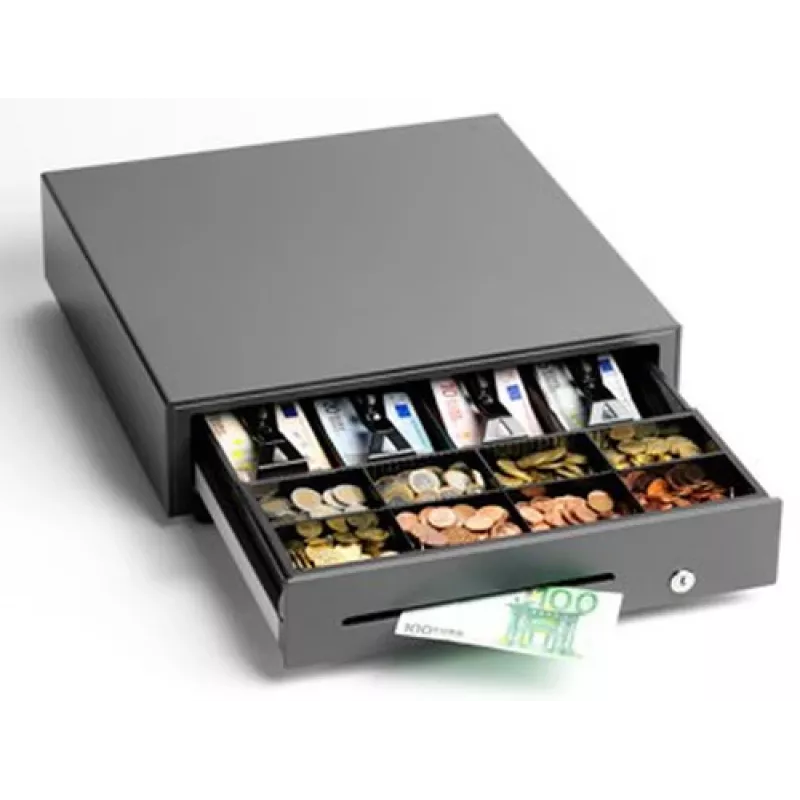

Manual cash drawer Star Micronics CB-2002 FN

The Star Micronics CB-2002 FN is a manual cash drawer designed for integration with Star and other industry-standard POS printers. It offers a compact footprint (410 × 415 × 114 mm) and a sturdy steel construction with a grey finish, providing secure and organised storage for notes and coins in retail and hospitality environments.

Advantages

The drawer is driven from a POS printer peripheral drive circuit with a compulsion switch and requires a DC 24 V, 1 A supply. It includes a 3-position key lock with drawer release and a large-value note slot, and is available in Charcoal Grey or Ultra White to match Star POS printers and tablet POS systems. Optional accessories include under-desk Z brackets, a lockable cover, a note holder bracket and a note divider. A wireless DK AirCash mobile option is available for mPOS setups.

Suitable for

• Retail checkout counters
• Cafés and restaurants using POS printers
• Mobile point-of-sale systems with DK AirCash
• Small to medium-sized stores requiring secure cash storage

Key specifications

• Dimensions: 410 mm (W) × 415 mm (D) × 114 mm (H)
• Weight: 7 kg
• Input voltage: DC 24 V, 1 A
• Drive: POS printer peripheral drive circuit with compulsion switch
• Lock: 3-position key lock with drawer release and large-value note slot
• Colours: Charcoal Grey or Ultra White

How to use

Connect the CB-2002 FN to a compatible POS printer peripheral drive circuit or use the DK AirCash wireless option for mobile setups. Operate the drawer via the printer command or the key lock for manual release. Place notes and coins into the removable cash tray and use the large-value note slot for oversize notes without opening the drawer.

Recommendations

The drawer should be installed on a stable surface or mounted under the counter using the optional Z brackets; maintain the lock and mechanism with periodic cleaning and avoid exposure to moisture to ensure long service life.
